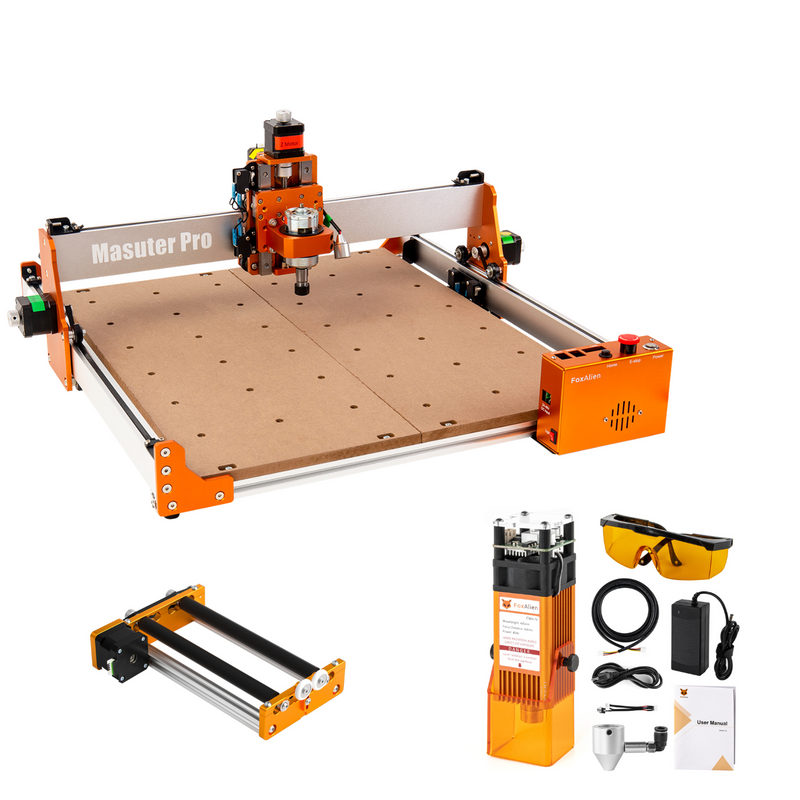

CNC Router Masuter Pro with 40W and R42 Rotary Roller Kit
SKU: BD-MasuterPro40W-R42 |

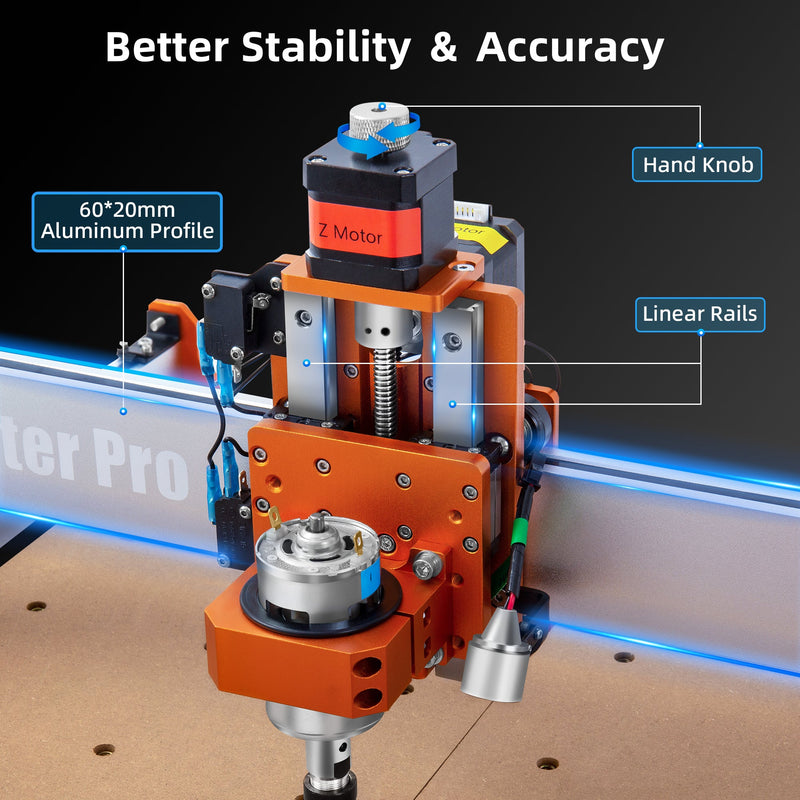

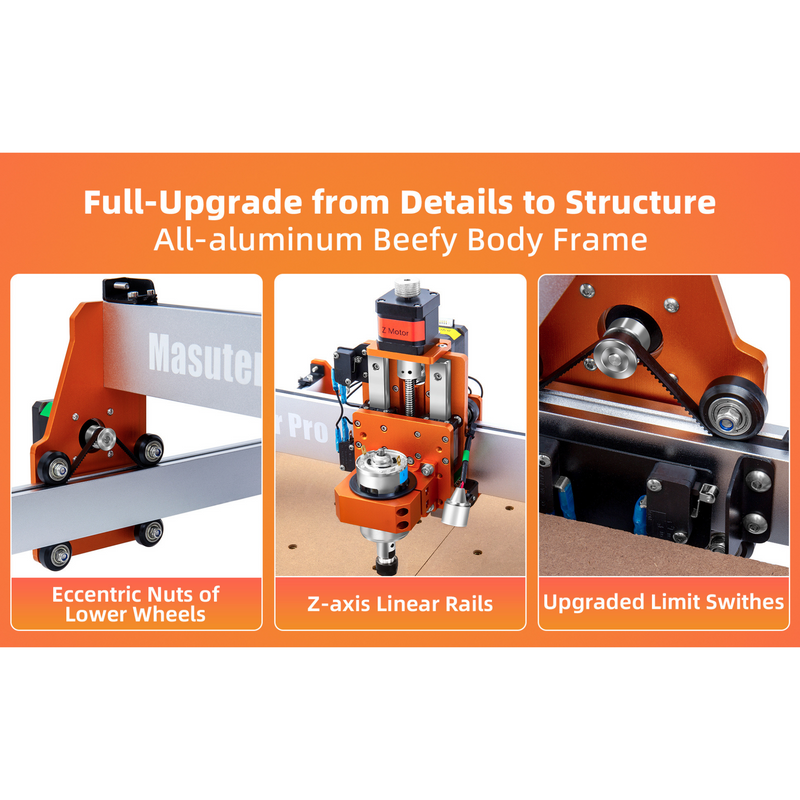

Structure Upgrade: Masuter Pro is an All-Aluminum CNC router, which makes the machine sturdier than the last version. The Z-axis uses linear rails instead of the optical axis, this greatly improves the stability and accuracy.

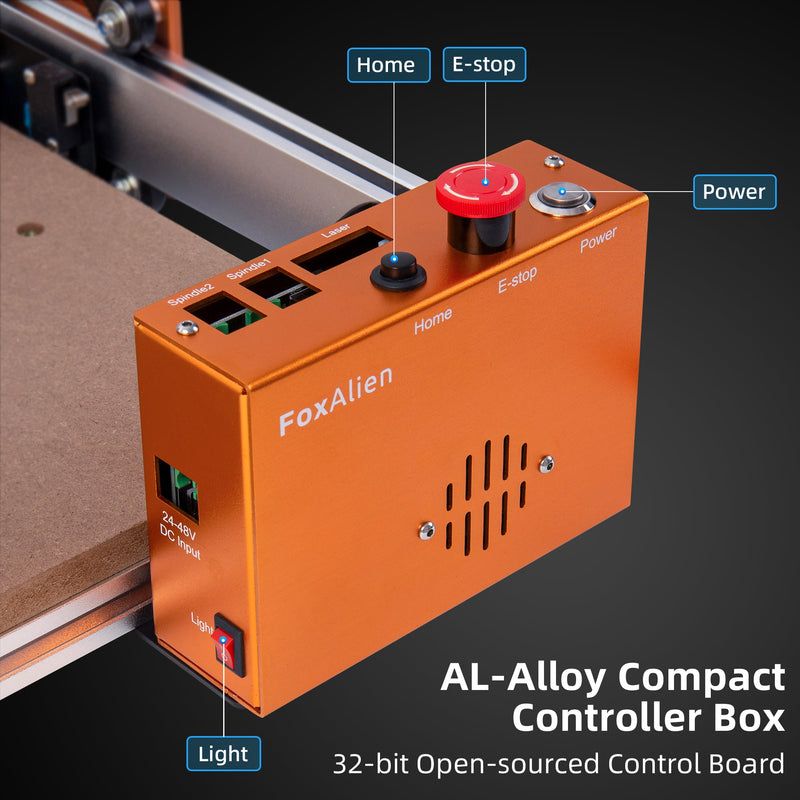

Upgraded Controller Box: The control board is upgraded to a compact controller box. The emergency stop button and home button are more easily and more convenient to access. The control box is also dust-proof for easy maintenance.

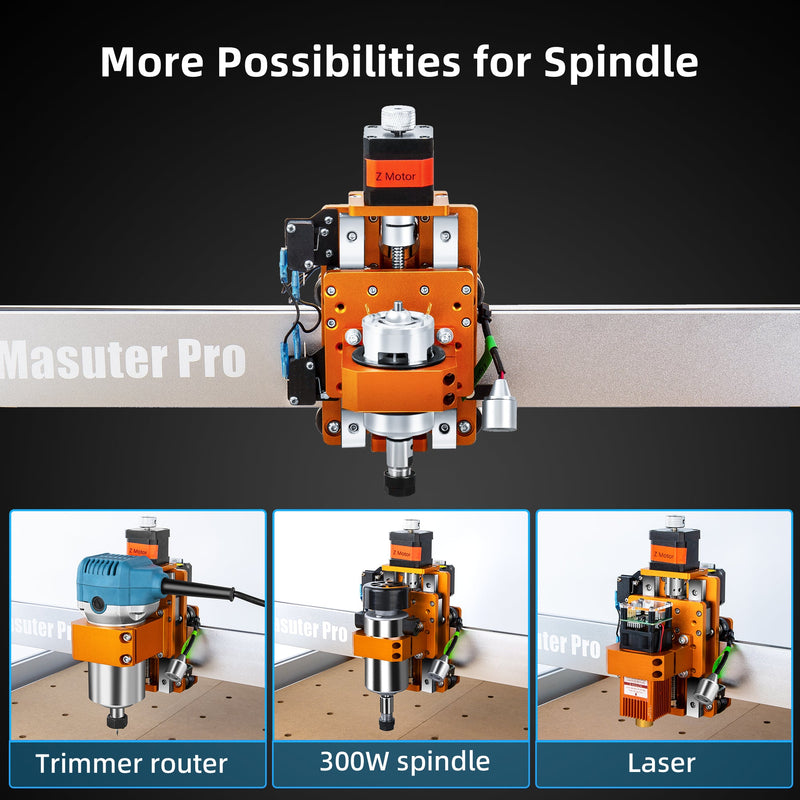

Compatibility Upgrade: Masuter Pro includes 2 spindle clamps: 52mm & 65mm. The 52mm clamp can accommodate the 60W spindle, 300W spindle and the FoxAlien laser modules. The 65mm clamp is for customized upgrade, such as 65mm Makita router, 1.5KW spindle, etc. Masuter Pro also supports the 69mm spindle clamp, please buy separately.
Assembly Upgrade: Main parts are pre-assembled, and the part of the wires are pre-installed to the controller box. It takes only 10-15 minutes to fully assemble.
Additional Working Light: A small working light is added to the Z-axis. It helps you to monitor the carving details and process more clearly. Each stepper motor has a knob for easy adjusting by hand.
The Masuter Pro, the 40W Laser Kit and R42 Rotary Roller will be shipped separately.

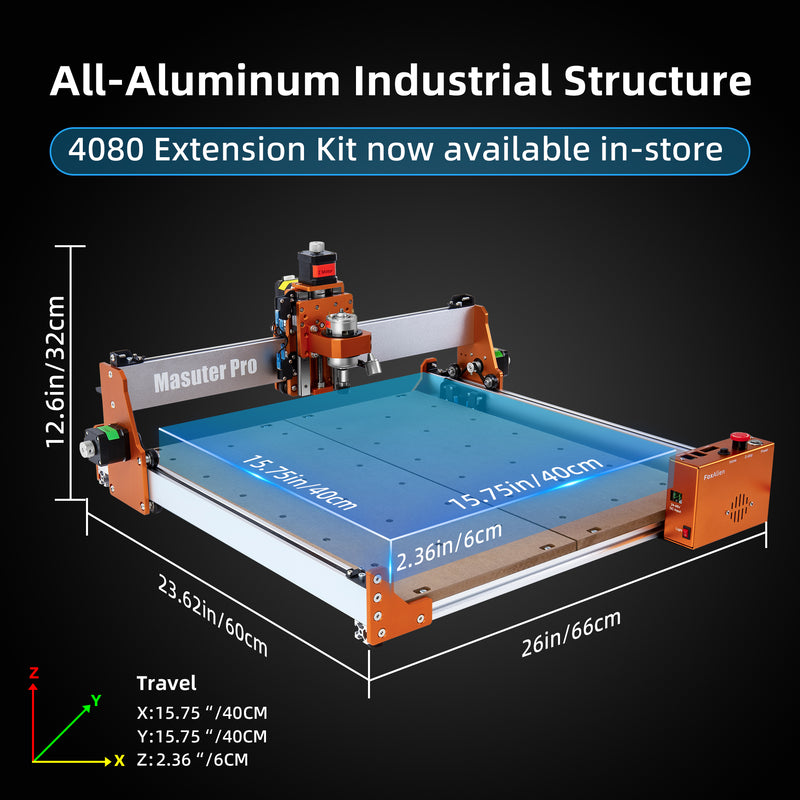

- Active Working Area: 15.75” x 15.75” x 2.36” (400 x 400 x 60mm)
- Spindle: 775; 10000RPM
- Input Supply: 12V/5A
- Stepper Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
- Supported OS: Windows XP/7/8/10/11, MAC OS, Linux

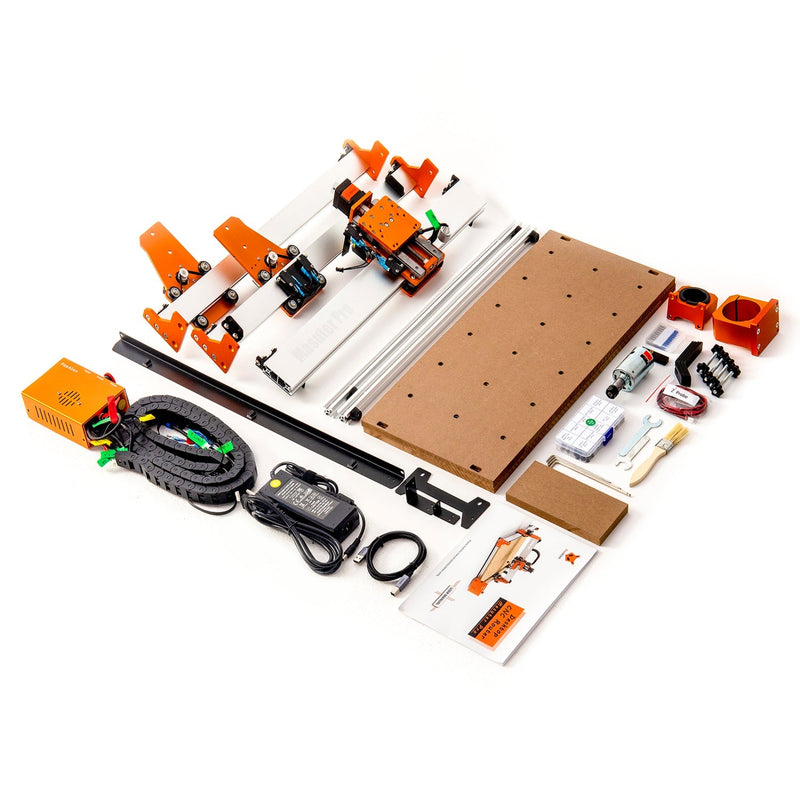

- 1x Masuter Pro CNC Router Machine (Main part pre-installed)

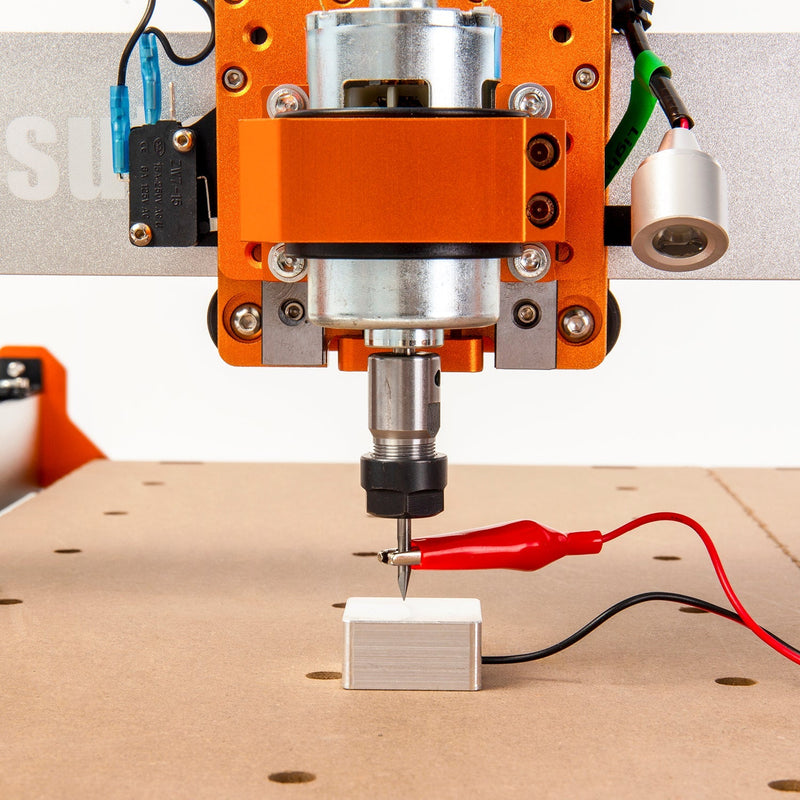

- 1x Z Probe
- 1x Controller Box
- 4x Hold-down Clamp
- 1x 52mm Spindle Clamp
- 1x 65mm Spindle Clamp
- 1x Power Supply
- 1x USB Cable
- 1x U Disk
- 1x User Manual
- 10 x Router Bits
- Packs of screws

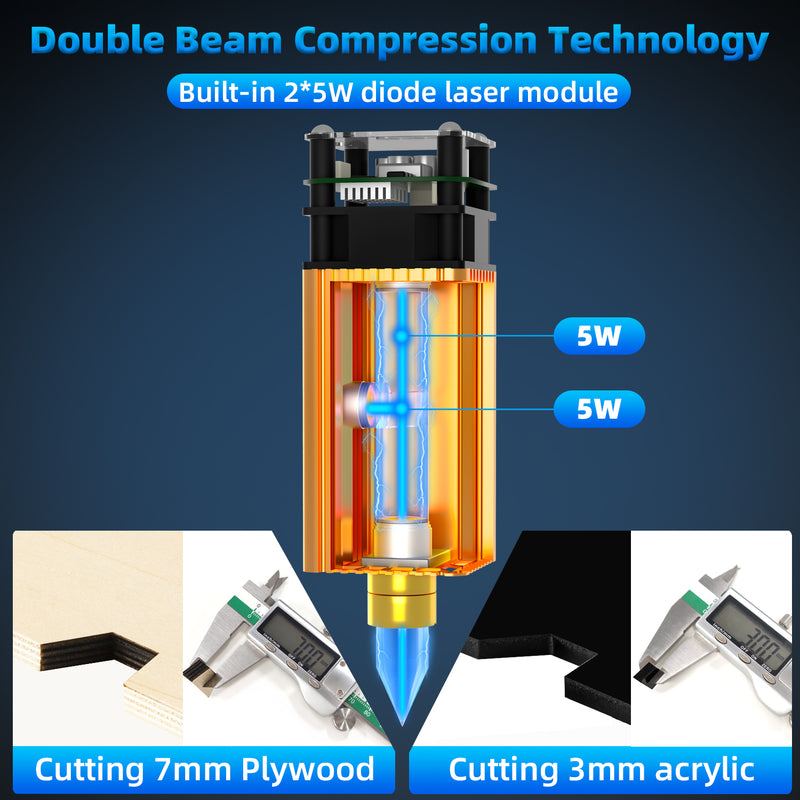

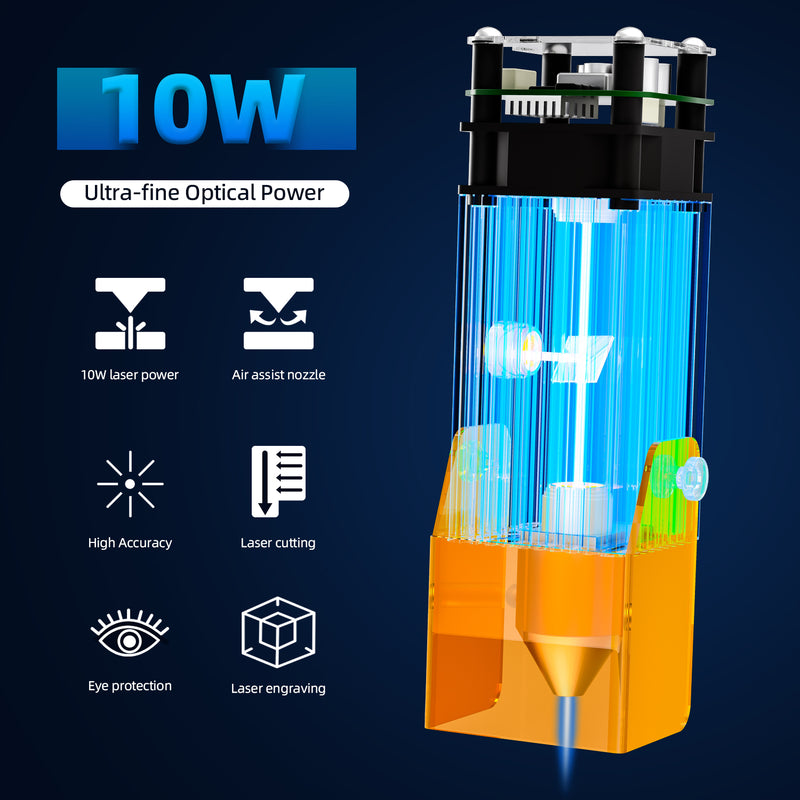

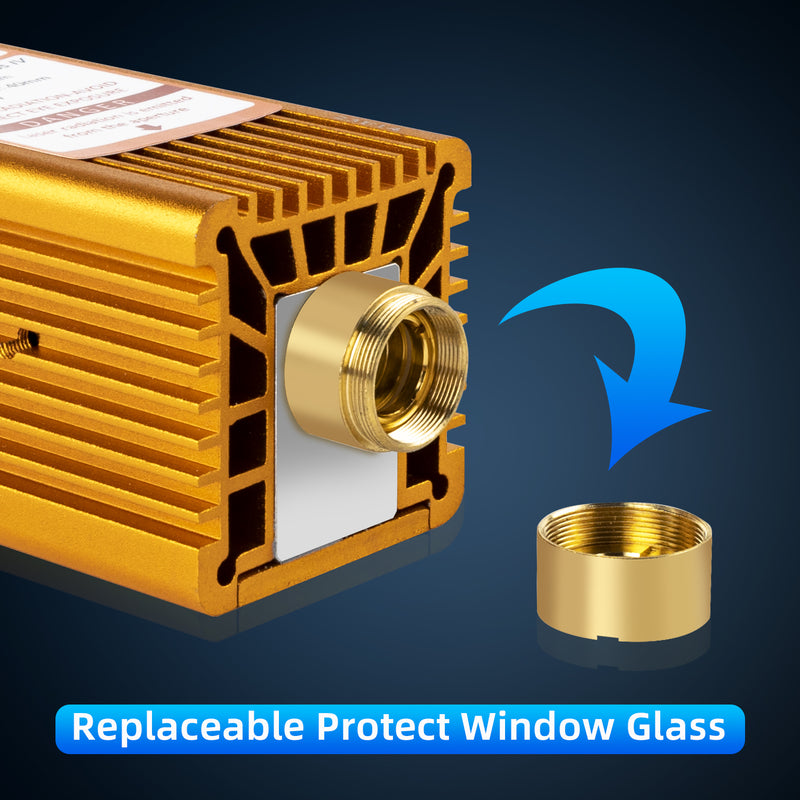

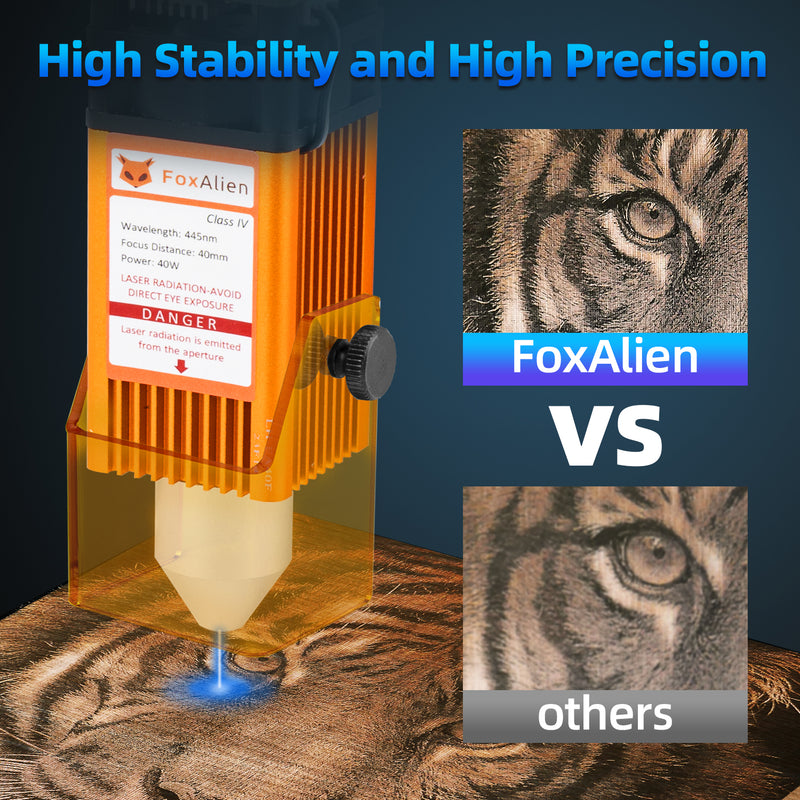

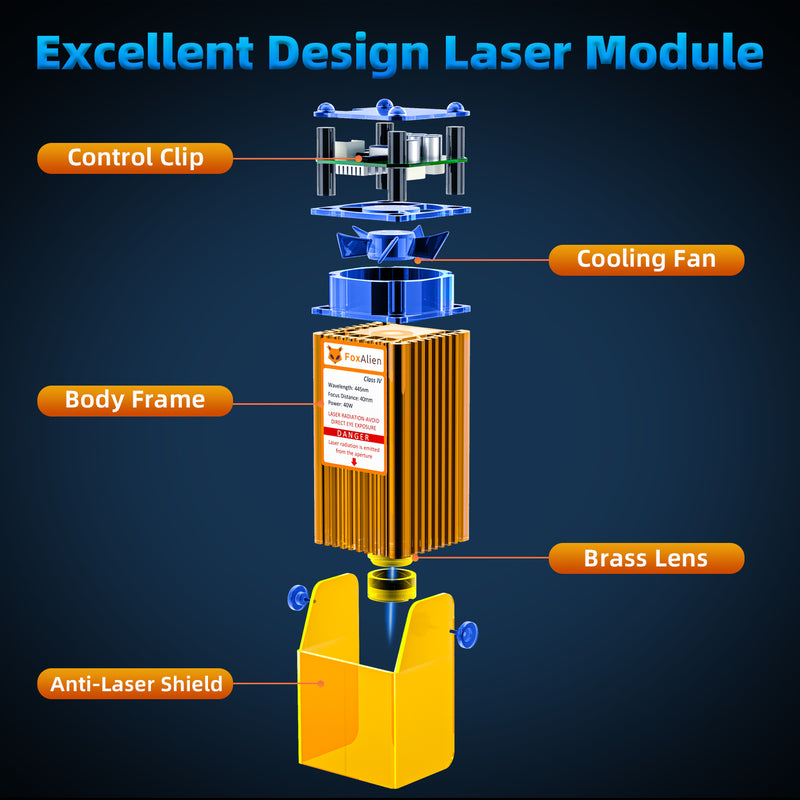

- 1 x 40W Laser Module Kit

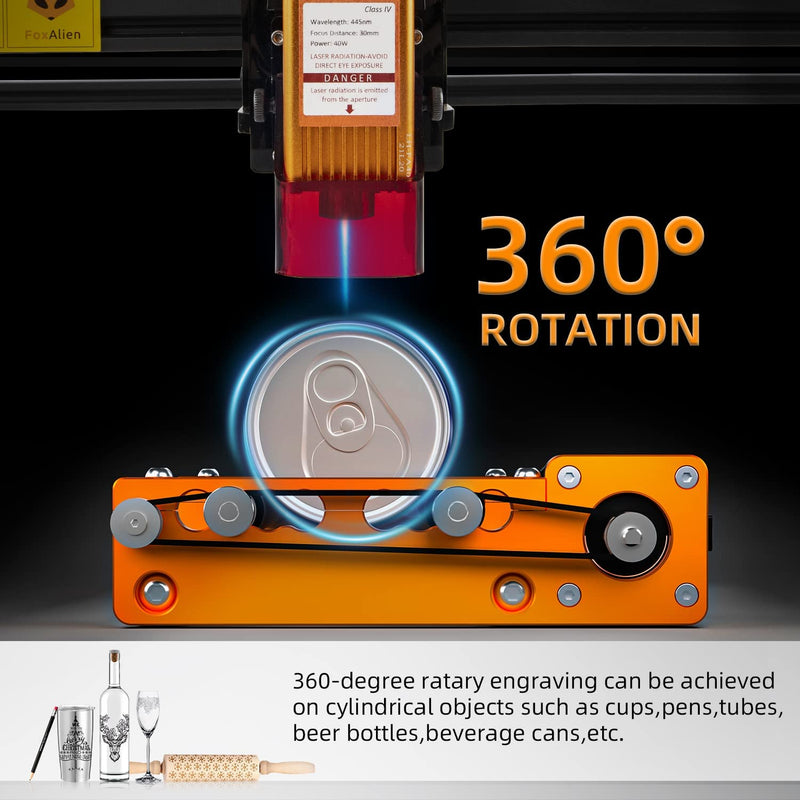

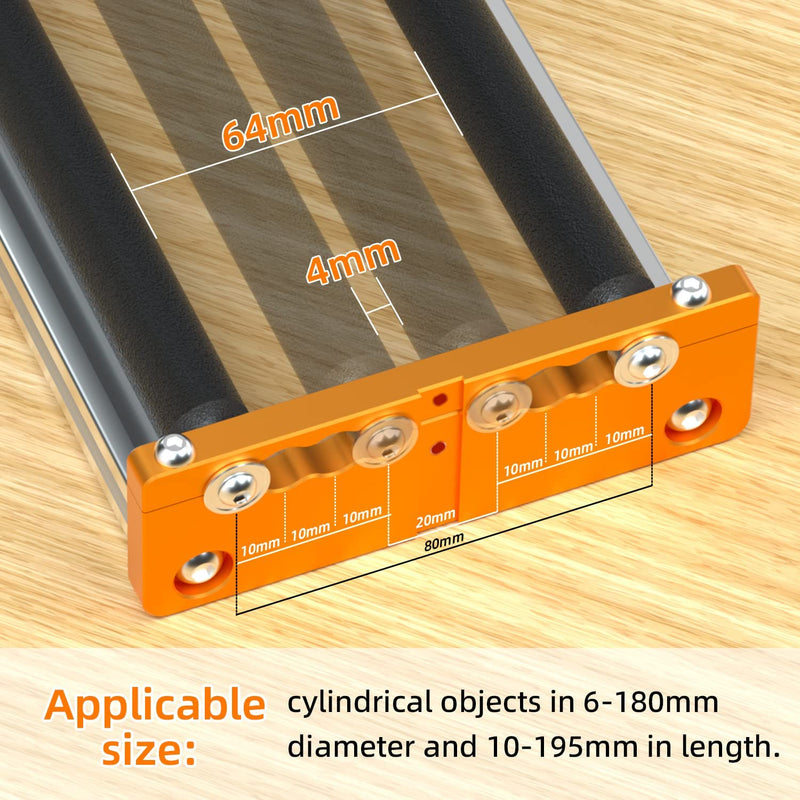

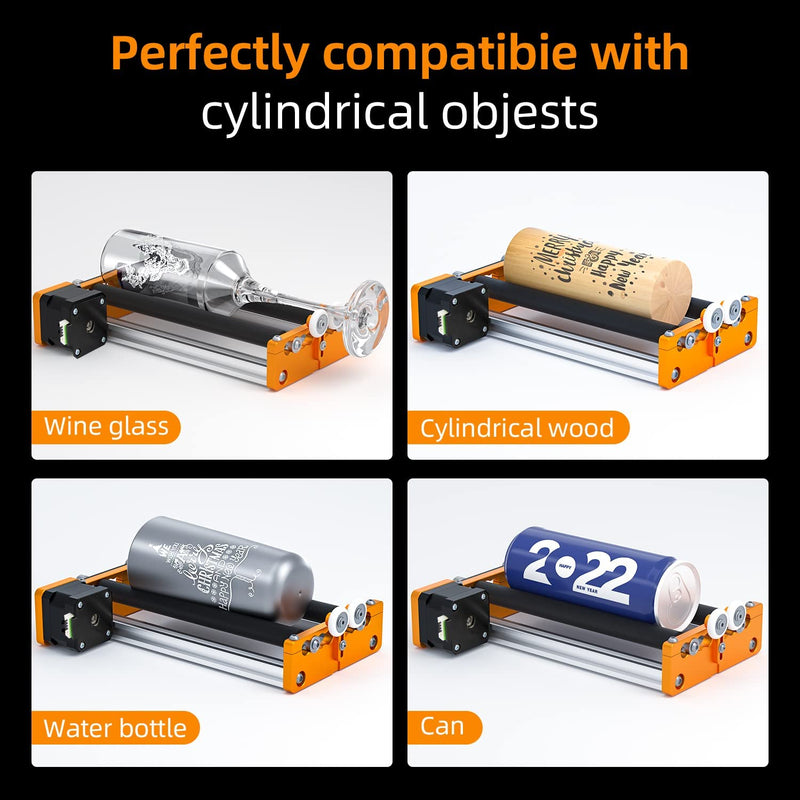

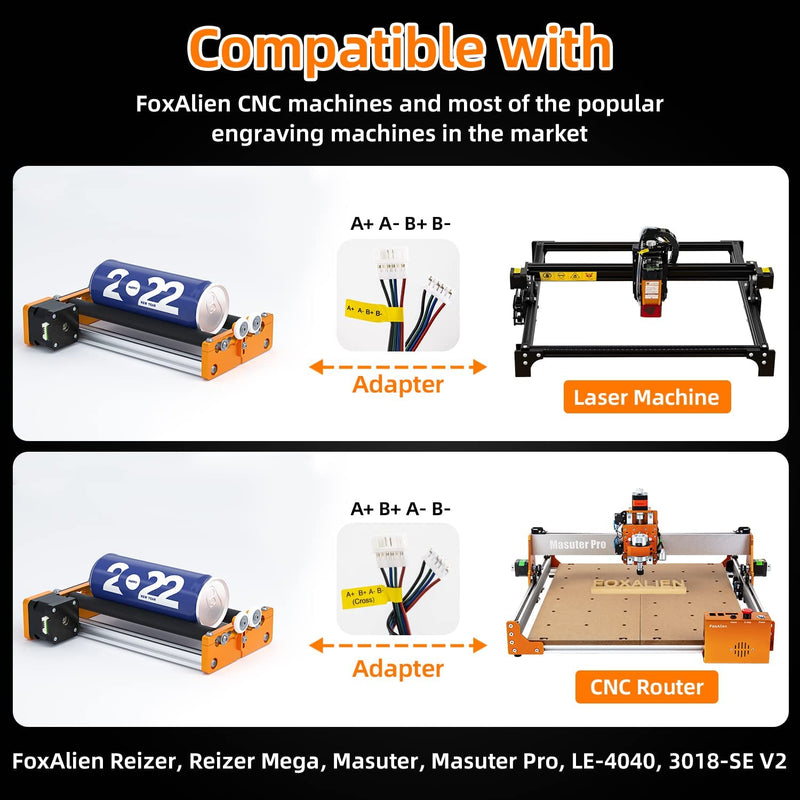

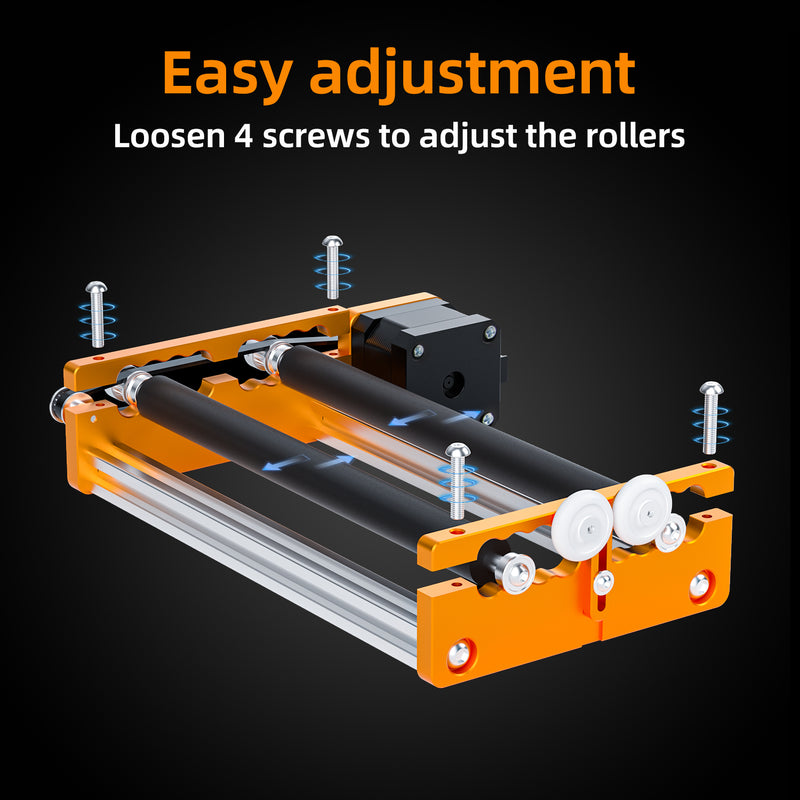

- 1 x New R42 Rotary Roller Kit
The Foxalien people are on top of everything. It shipped quickly. I had a question or two, and they promptly answered when they came to work, which is 8 pm my time. The quality of the gear is very good and all works properly. I am thrilled with my purchase.
This unit was incredibly well packaged and all parts arrived in pristine condition even though the outer box was slightly damaged. Everything was well labeled and assembly was very easy. After squaring everything up, surfacing the spoilboard and calibrating I run a couple of designs using maple and a 1/16 cutter with the stock 60w spindle. It cut through likebutter and the dimensions were accurate. Haven't tried the laser yet due to illness but I'm confident it will perform well.
New to all of this - researched for a while and landed on Masuter Pro w/standard spindle and 40W laser. It's been a blast learning, and the community support is great. I did have one issue with a component when it arrived - a quick chat followed by an email to support and it was taken care of. Could not be happier! Thank you!
I am brand new to CNC, but I'm incredibly pleased with this unit so far. I purchased this on Black Friday, I haven't used the router yet, but the laser I have used extensively. I made nearly all of my Christmas as well as my sister's using the laser. In tandem with the lightburn software, this is so easy to use I have been able to teach my seven year old daughter to use it. Primarily I have used the laser to burn images and names on tumblers. The one thing I would caution you on if you want to do cylindrical objects, the rotator in this kit is limited on size, there is a different rotator that is more suitable for longer objects. It did take a few tries to get the settings dialed in, I had one with the laser power set a bit too low, and it took more effort to get the residue off afterward, same story if it's too high... but if you find that sweet spot, a magic eraser with a little bit of toothpaste and it wipes off pretty much effortlessly.
I already have the first project that I will do with the router. I have an original design 21 gun salute display case, I am converting that design to be used with the router. If I am able to update the review after completion I will add the photos.
Long story short, this unit is packed with features, yields awesome results, and at a price where a beginner can still feel comfortable taking a shot at it.
