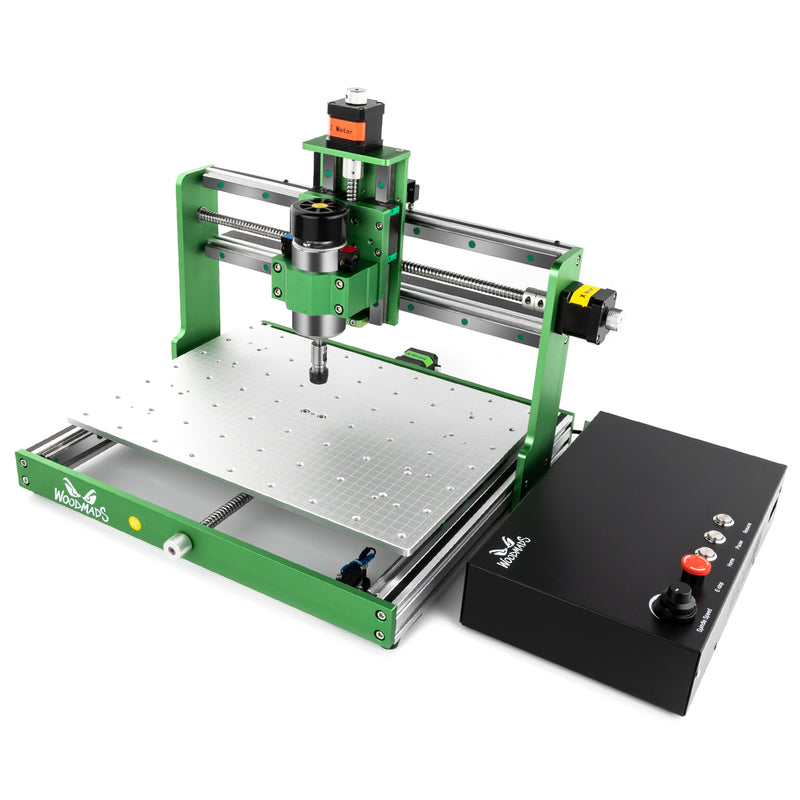

[Pre-order] FoxAlien x Woodmads CNC Router WM3020
SKU: CNC-WM-WM3020 |

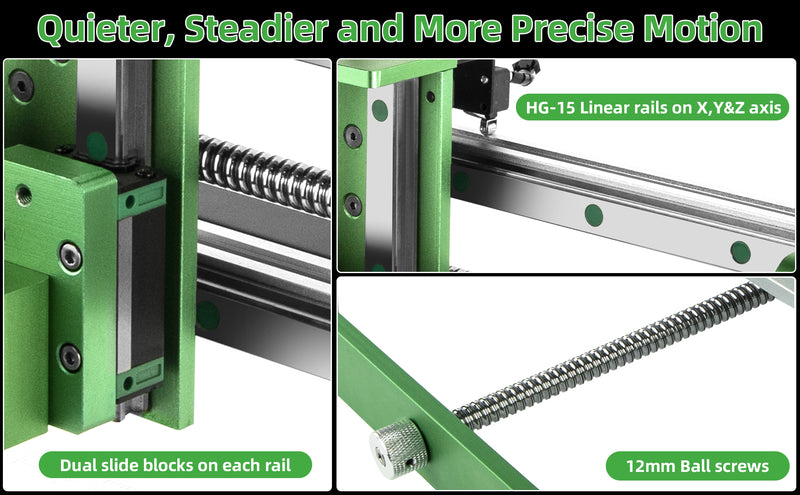

[Designed to work accuracy] The WM3020 CNC is built in HG-15 linear bearings and 12mm ballscrews on every axis. These components can help the carving faster, quieter, and preciser.

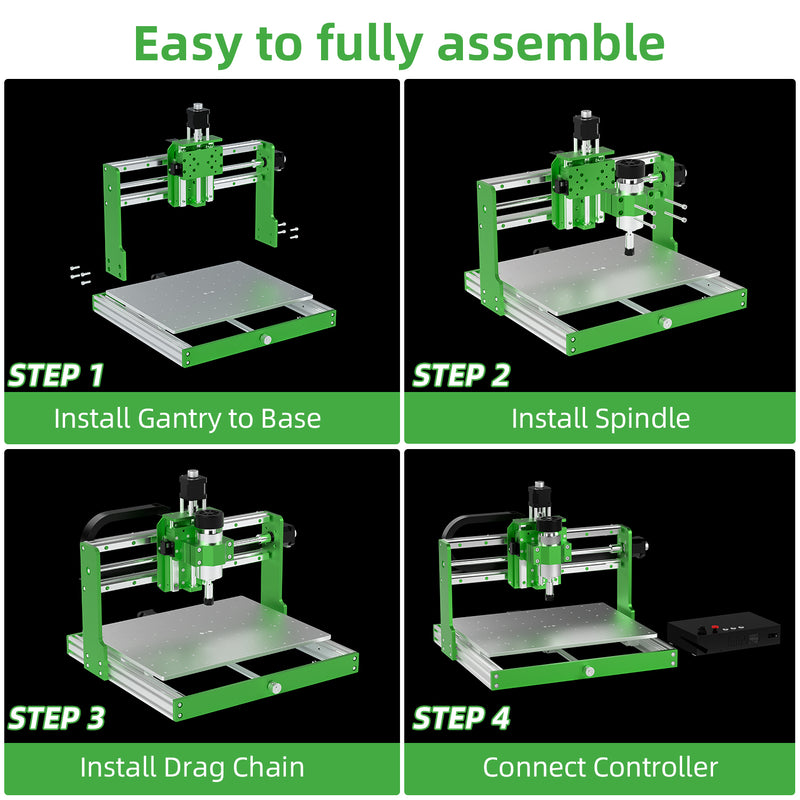

[Easy Installation] Main parts are pre-assembled, it just takes 30-45 minutes to assemble the machine, then you can explore the journey of CNC machining.
[Simple to Use] Still based on grbl control, lots of resources can be found on YouTube. Due to its super-rigid structure, no more loss step. Even though your engraving settings are not perfect, it can still carve nicely.

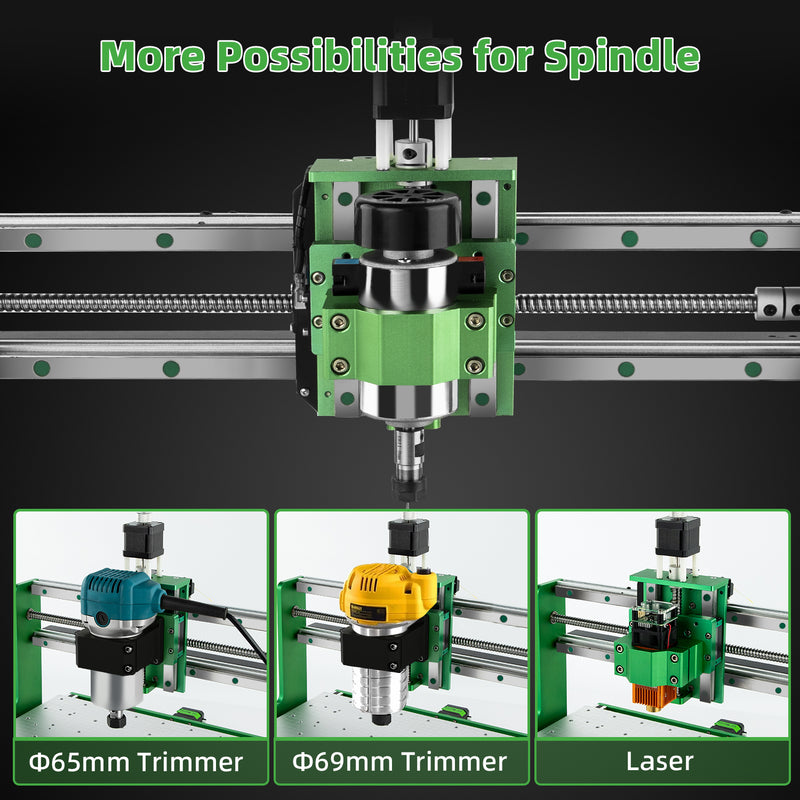

[Easy to Upgrade] The machine comes with a 300W spindle, which can capable of engraving and cutting wood, acrylic, carbon fiber, aluminum and brass. The design of the z-axis module can install the 65mm and 69mm clamp, which means it can compatible with the Makita RT0701C, 1.5kw spindle, and DeWalt DWP611 Router.
[Aluminum Working Table] One-piece machined and molded aluminum design ensures the flatness and strength of the work platform. An integrated measurement scale is convenient for material positioning. The platform is compatible with most of the CNC clamps on the market.
All pre-orders will get the FoxAlien 20W Laser Module Kit for free as a reward. The machine and the laser will be shipped separately.
The US orders are expected to shipped in the beginning of September.
The EU orders are expected to shipped in the end of September.
Other countries please contact email@example.com before ordering.
The WM-3020 is a brand new CNC machine that is-designed by FoxAlien and WoodMads. WoodMads is a start-up team devoted to CNC machines. We are very honored to be invited to participate in designing this new model; and FoxAlien becomes the exclusive distributor of the WM-3020.

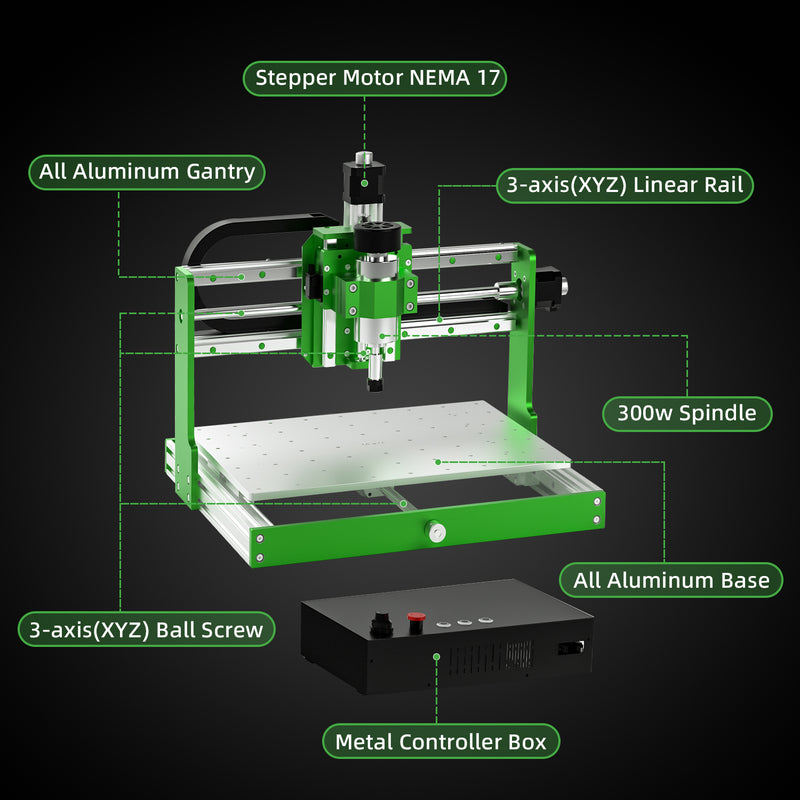

- Working Table: Aluminum
- Cutting Area: 290x220x70cm/ 11.4“x8.6"x2.7"
- Spindle: 300W
- Router: Support 65mm and 69 Router, Makita RT0700C and DeWalt DWP611 (clamp is not included)
- X Axis: HG-15 Linear Rails & 12mm Ball Screws
- Y Axis: HG-15 Linear Rails & 12mm Ball Screws
- Z Axis: HG-15 Linear Rails & 12mm Ball Screws
- Stepper Motors: Nema17
- Driver Chip: TB67S109AFTG
- Machine Structure Material: All Metal

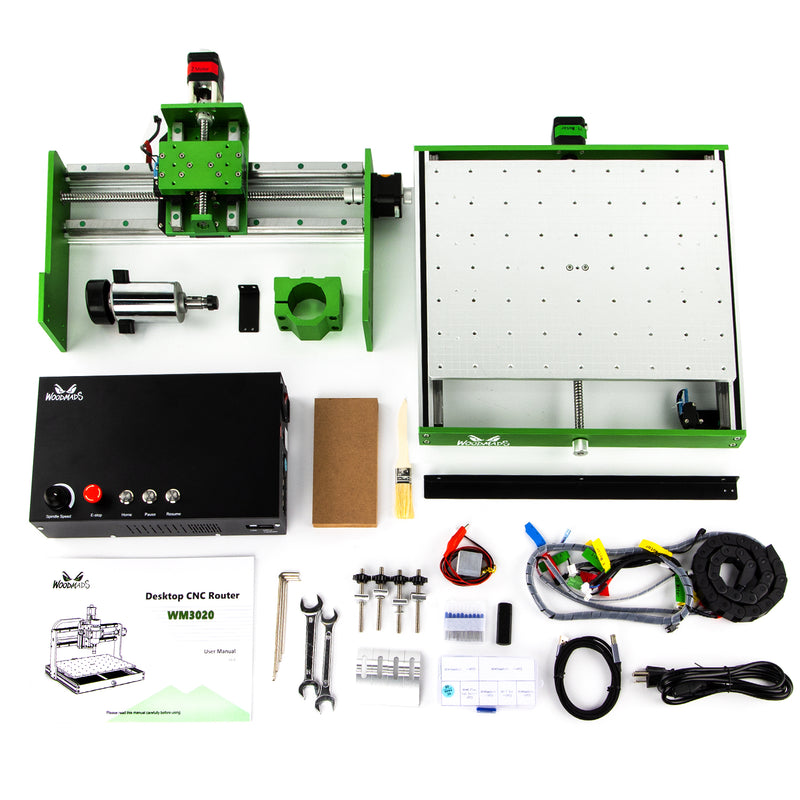

- 1x CNC Router Machine (Main part pre-installed)
- 1x Z Probe

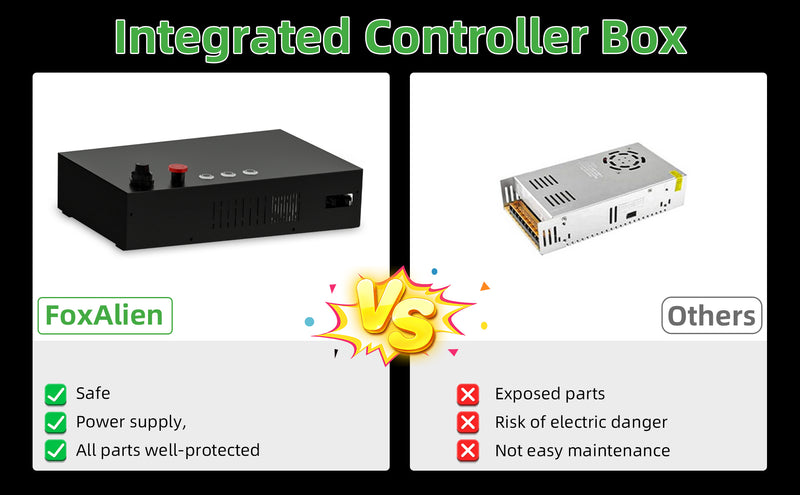

- 1x Controller Box
- 4x Hold-down Clamp
- 1x Power Supply
- 1x USB Cable
- 1x U Disk
- 1x User Manual
- 10 x Router Bits
- Packs of screws
