CNC Router Machine CL-6560

SKU: CNC-Router-CL6560 |

$1,999.99 $2,399.99 Save $-400.00
Ship to:
Free Shipping in U.S.
Fast Delivery
International Shipping Available
Lifetime Customer Support

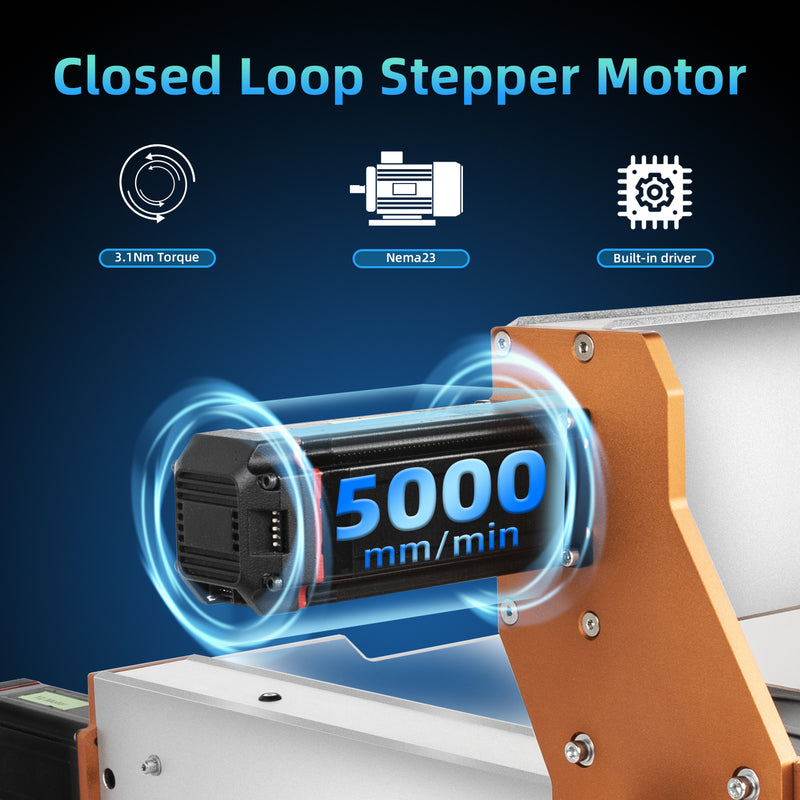

[Upgraded Closed-Loop Motors] The CL-6560 comes with four Nema23 closed-loop motors, which can make the machine move as fast as 5000mm/min. This is 2.5 times faster than the open-loop motors. The closed-loop motors also featured lower noise and better accuracy.

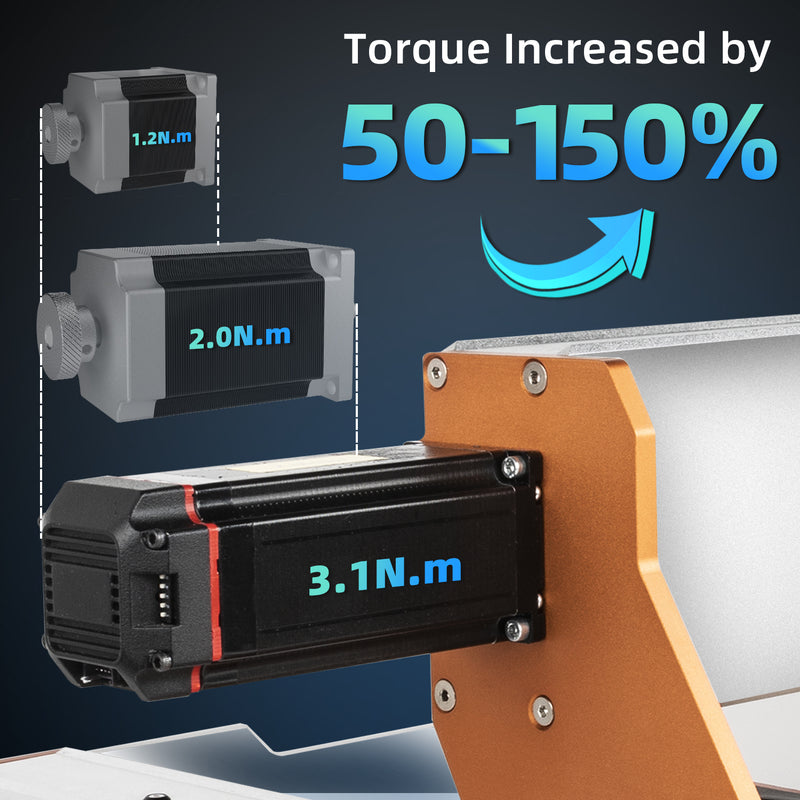

[Powerful Stepper Motors] These four upgraded closed-loop stepper motors have up to 3.1N.m torque, which can help the machine engrave or even cut a wide range of materials such as wood, plastic, carbon sheet, and soft metals.

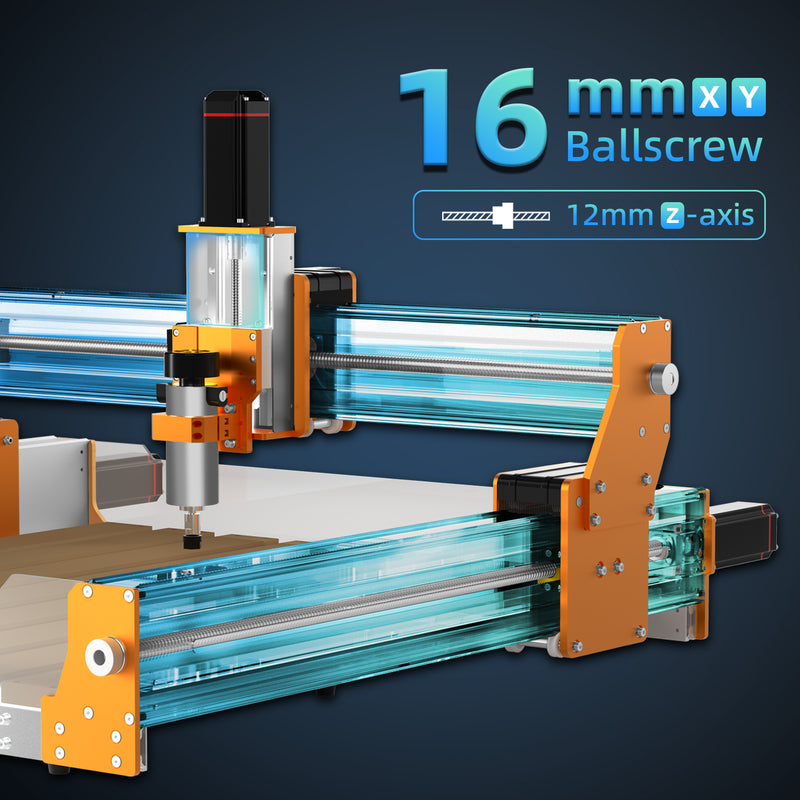

[Linear Rails and Ball Screws] The Z axis is using dual linear rails and a 12mm ball screw, which makes sure the machine has better accuracy and no wobble on the Z axis. The XY is using 16mm ball screws for better stability.

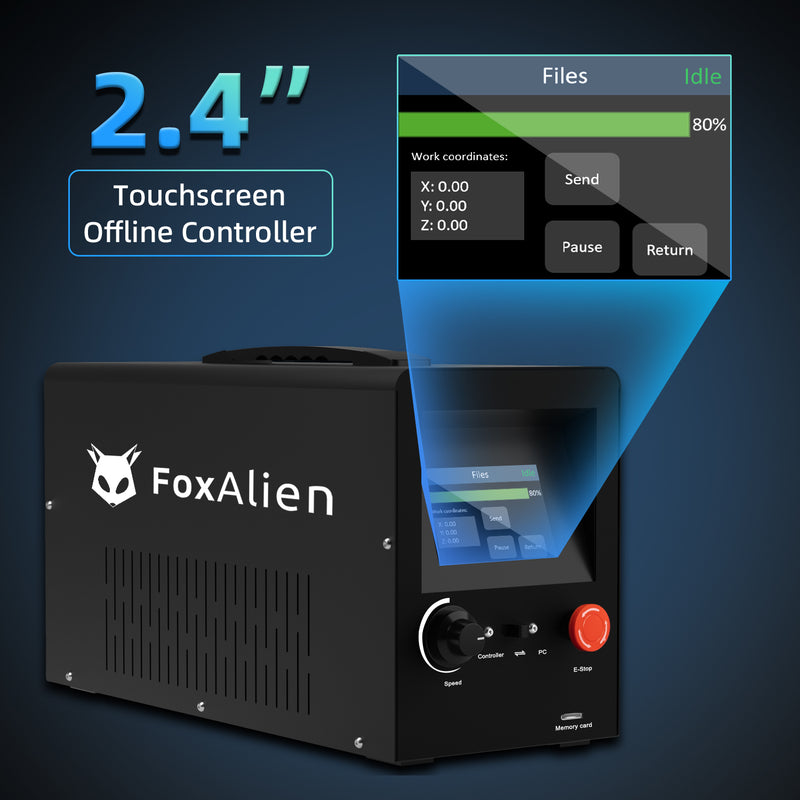

[Offline Control] Build in a 2.4-inch touchscreen on the controller box. This can control the machine without connecting to a PC.

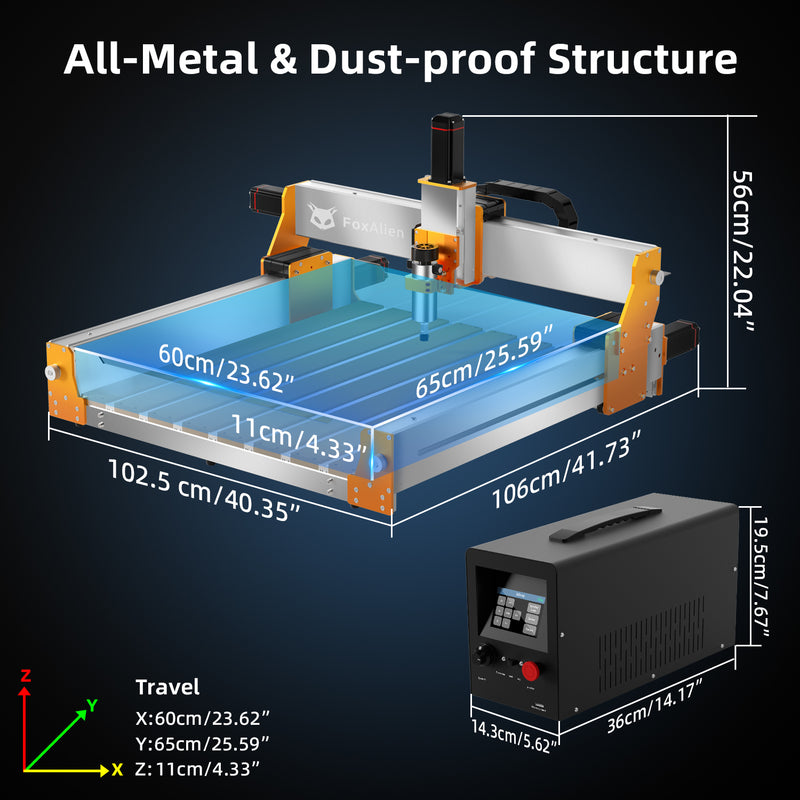

[Large Working Area] The CL-6560 has up to 60cm x 65cm x 11cm/ 23.62” x 26” x 4.72”(XYZ), making it suitable for small to medium-sized projects.

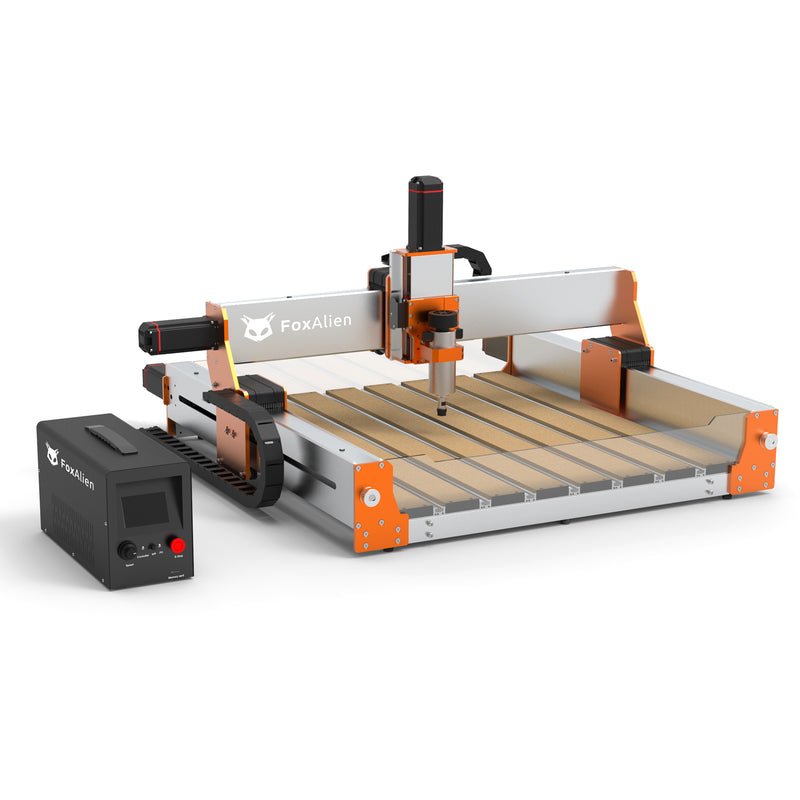

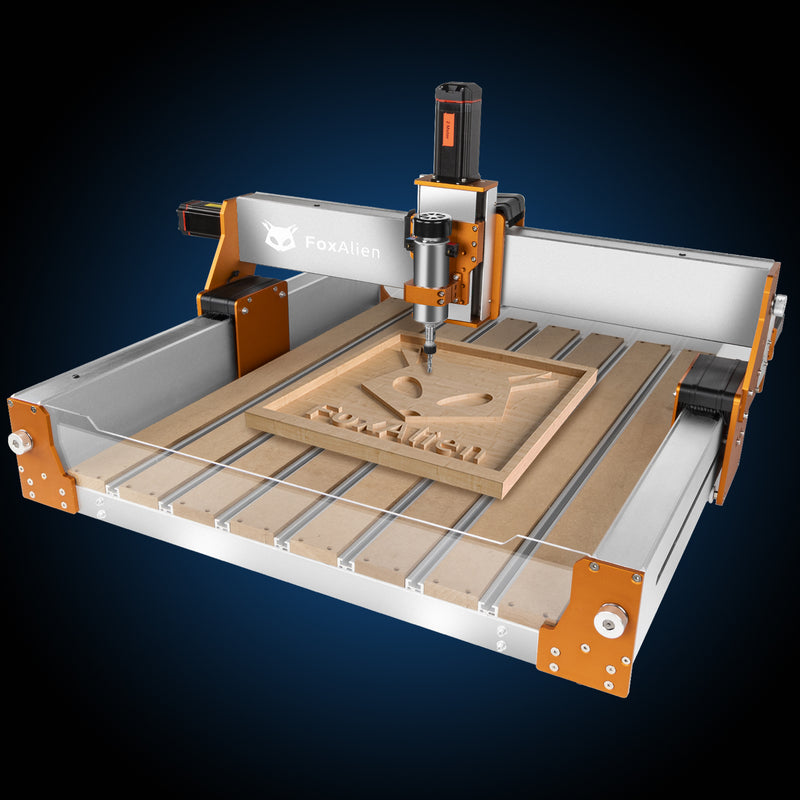

FoxAlien CNC Router Machine CL-6560 is a high-speed performance CNC carving machine that can engrave and cut wood precisely. Using the close loop stepper motor that can help the machine run much faster and more precisely. The max speed of the CL-6560 is 5000mm/min compared with the standard CNC's max speed of 2000mm/mins. Working efficiency can improve 2.5 times, this also means you can have 2.5 times revenue in the same working time.

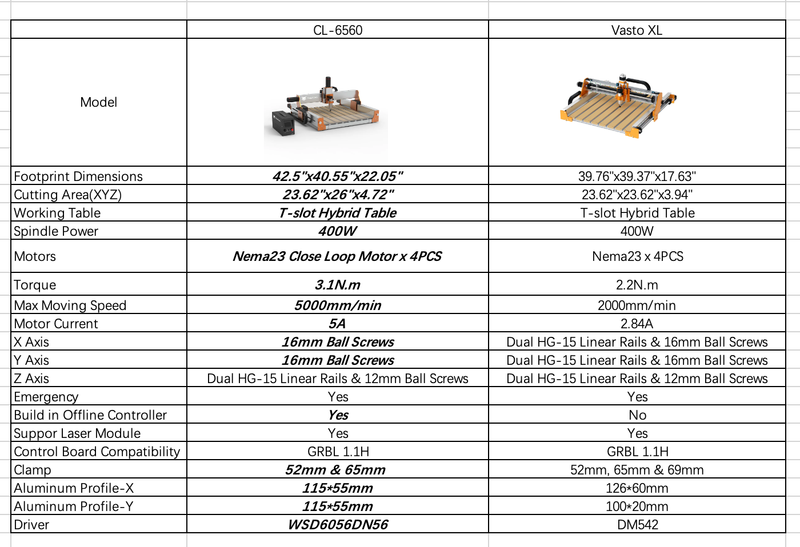

  • Working Table: T-slot Hybrid Table
  • Cutting Area XYZ: 60cm x 65cm x 11cm/ 23.62” x 26” x 4.72”
  • Spindle: 400W

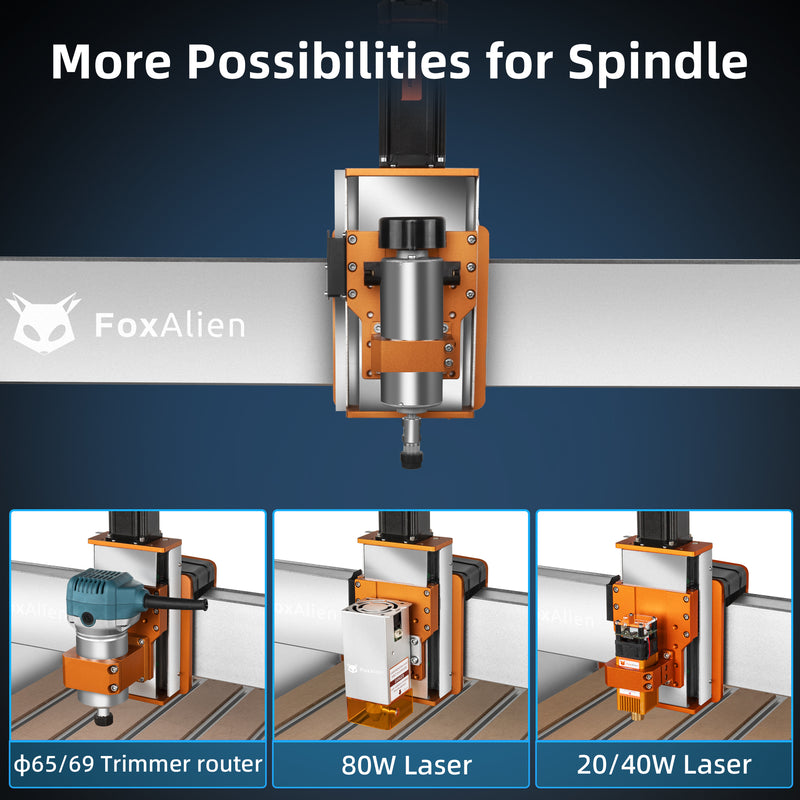

  • Router:  Support 65mm and 69 Router, Makita RT0700C and DeWalt DWP611
  • X Axis: 16mm Ball Screws
  • Y Axis: 16mm Ball Screws
  • Z Axis: 12mm Ball Screws & Linear Rails
  • Stepper Motors: Nema23(57-112) Close Loop Stepper Motor
  • Torque: 3.1Nm
  • Independent Driver: DM542
  • Machine Structure Material: All Metal

Package List

  • 1x CNC router CL-6560 (half-assembled in 4 boxes)
  • 1x T-slot Hybrid Table
  • 1x Controller
  • 2x Set of engraving bits (10pcs/set)
  • 1x USB cable
  • 1x Power cord
  • 1x Box of screws and tools
  • 1x User manual
  • 52mm & 65mm spindle holder


Customer Reviews

Based on 5 reviews
Pete F
CL-6560 - Two weeks in

So far, everything great. Relatively easy assembly (creating a work table large enough was the hardest part). Initial cuts are great. Also purchased the dust shoe and extremely happy with the low amount of dust in the air.

The unit is a "tank" .... really well built .... feels like it should provide years of service.

Control unit needs to be updated with a more modern interface .... all the basic functions are there, but require too many button pushes (I knew this when I purchased the unit, so not a surprise)

All in all a great start .... more thoughts in three to four months.

Love it, all metal structure is amazing!

Love it, all metal structure is amazing!
All moves are accurate and jobs I completed have not failed. Hope I can provide a review after a year of use. For now, it is looking great!

Big work area, Interface software Glitches

Nice big work area , easy to put together but interface soft sucks!!! Have to download gcode design onto sd card and put into foxalien for it to work right

Vincent keogh

CNC Router Machine CL-6560

maurizio anzellotti

la macchina va molto bene gia messa a punto e eseguiti vari lavori solo un piccolo appunto il fatto che non abbia cuscinetti lineari negli assi X eY ma semplici ruote in plastica con cuscinetto che scorrono direttamente sui profilati del telaio
