Laser Rotary Roller R42 for LE4040, Reizer and Masuter

SKU: CNC-LE-Roller |

$119.99 $139.99 Save $-20.00

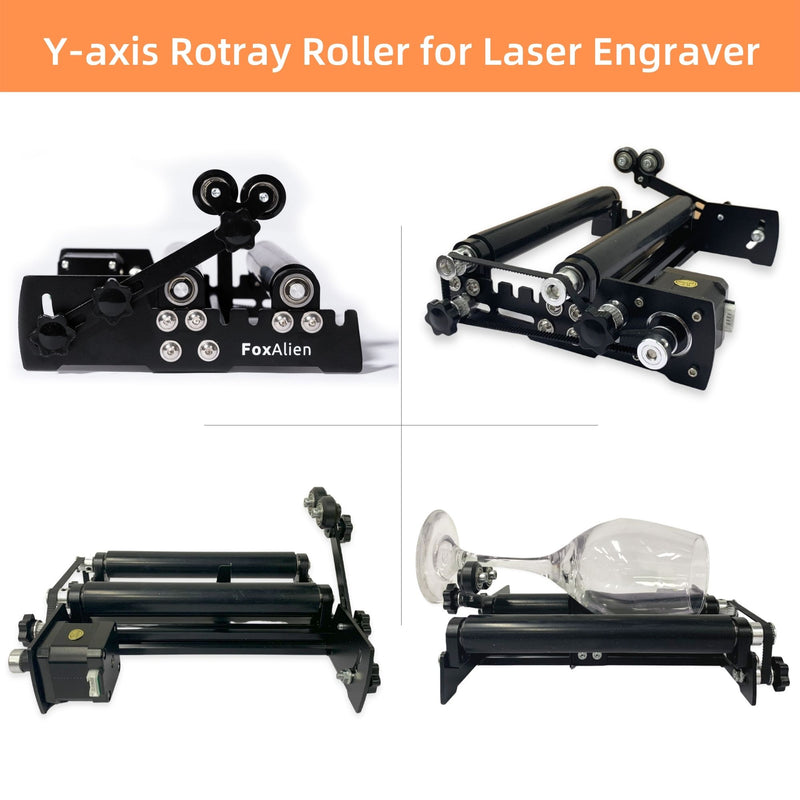

  • This Y-axis Rotary roller engraving module is designed for FoxAlien LE-4040, LE-4040 PRO laser engraver.
  • The rotary roller module is applied to engraving curved surface and cylindrical objects such as round wood, cup, cans, bottles and glass etc.
  • The rotary module is fully assembled. No complicated assembly. Easy wiring. The package comes with a detailed and clear manual for using introduction and wiring.
  • The rotary module is adjustable according to different size of cylindrical objects. The rollers spacing can be adjusted by relocating the screws to fix different size of objects.
  • There is a bracket with wheels which is designed to provide support to goblets such as wine glass. The angle of the holder is adjustable according to different objects.

*This rotary roller cannot be compatible with the CNC Router 4040-XE. Click here to purchase the rotary roller that can compatible with 4040-XE.

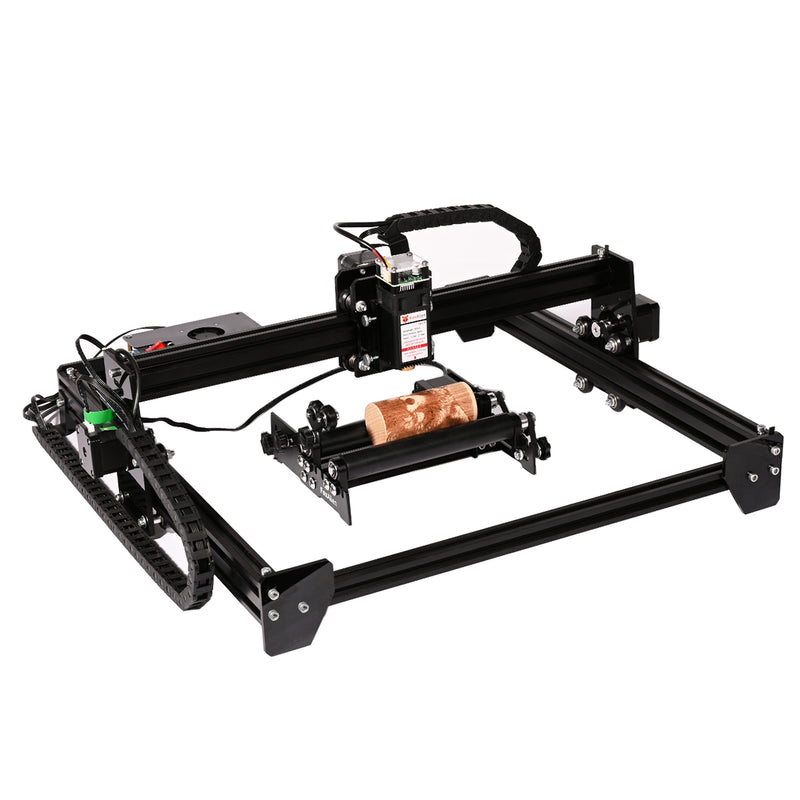

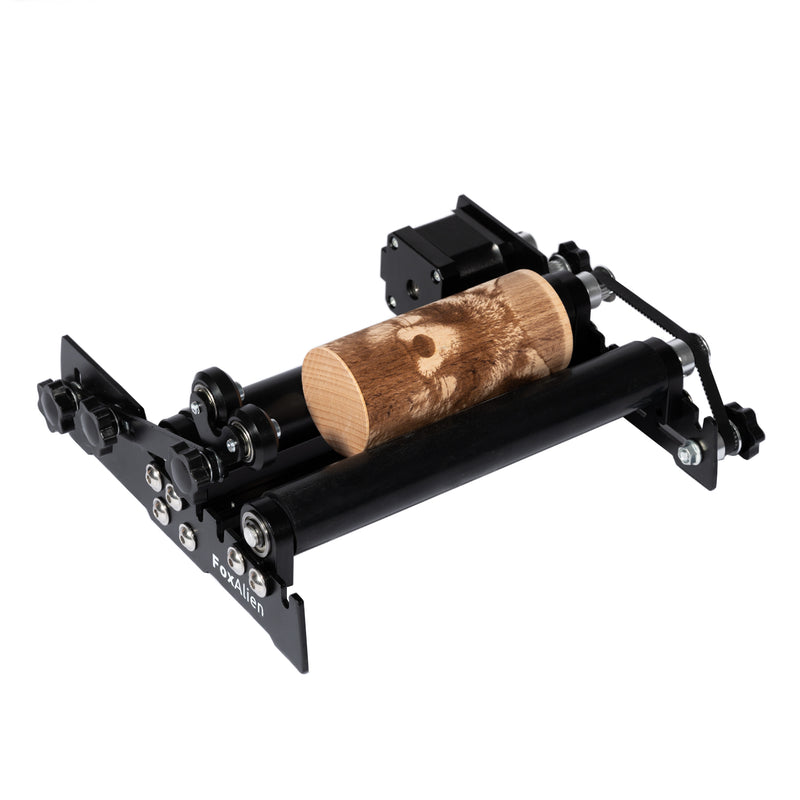

FoxAlien Rotary Roller Engraving R42 Module is designed for LE-4040, LE-4040 PRO  engraving machines to engrave cylindrical objects.

The whole rotary module is pre-assembled. It is available to plug-and-use with simple wiring and adjusting after you receive it.


Applications:

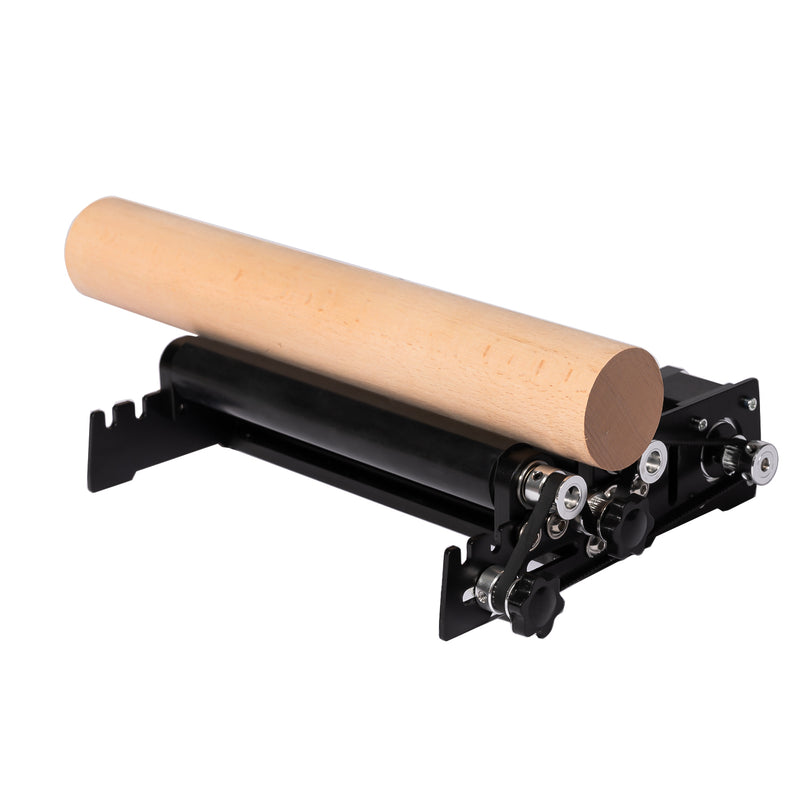

The rotary axis module can be applied to engrave cylindrical objects such as round wood, cup, cans, bottles and glass etc.



Product specification:

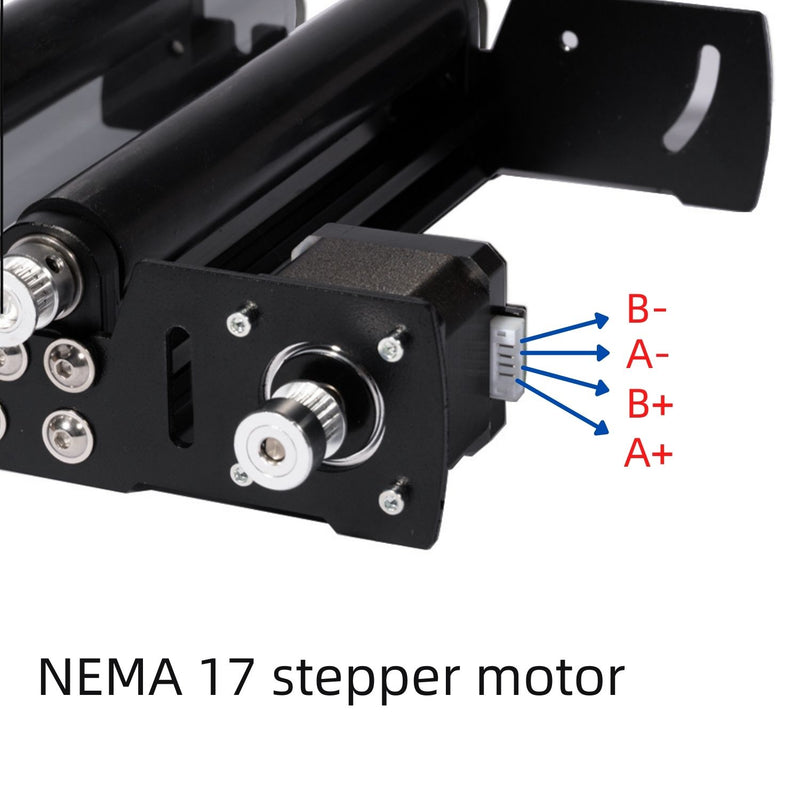

  • Stepper motor: NEMA17 stepper motor
  • Compatible with: FoxAlien LE-4040, LE-4040PRO
  • Support software: Lasergbrl, Lightburn

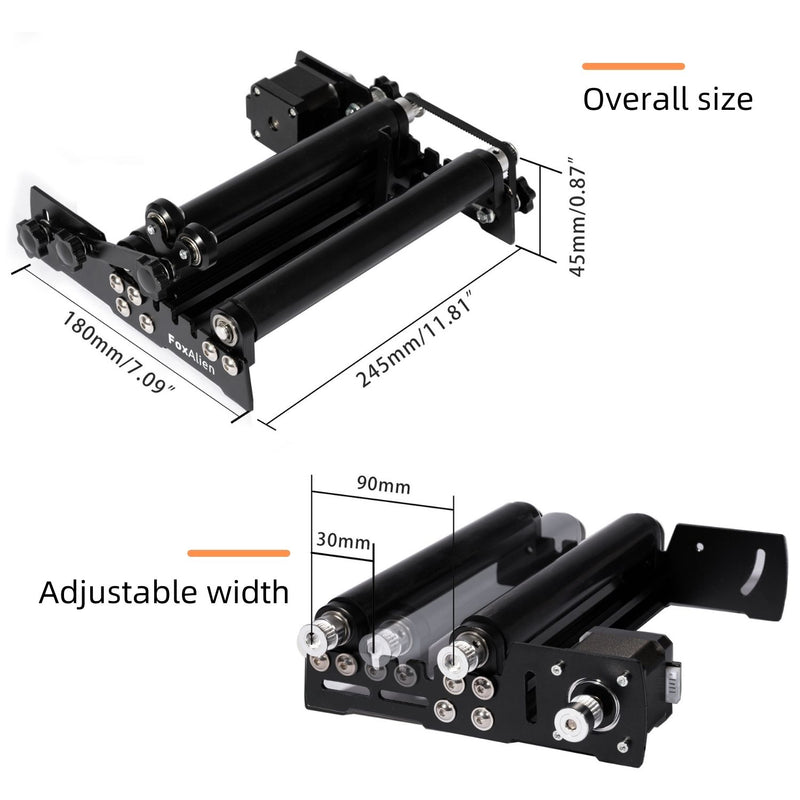

  • Product size: 24.5*18*8cm/9.45*7.08*3.15inch
  • Compatible with: LE4040, 3018-SE, Reizer and Masuter



Using Tips:

  • Check the set screws on the synchronouswheels from time to time in case they get loose during engraving. Make sure theset screws are tightened.
  • The belt is adjustable, make sure the screw sare tightened after adjusting the belt, otherwise it may lose steps if the belt is loose.
  • Read the user manual thoroughly before using.



Package List:

  • 1x Rotary roller engraving module
  • 1x User Manual
