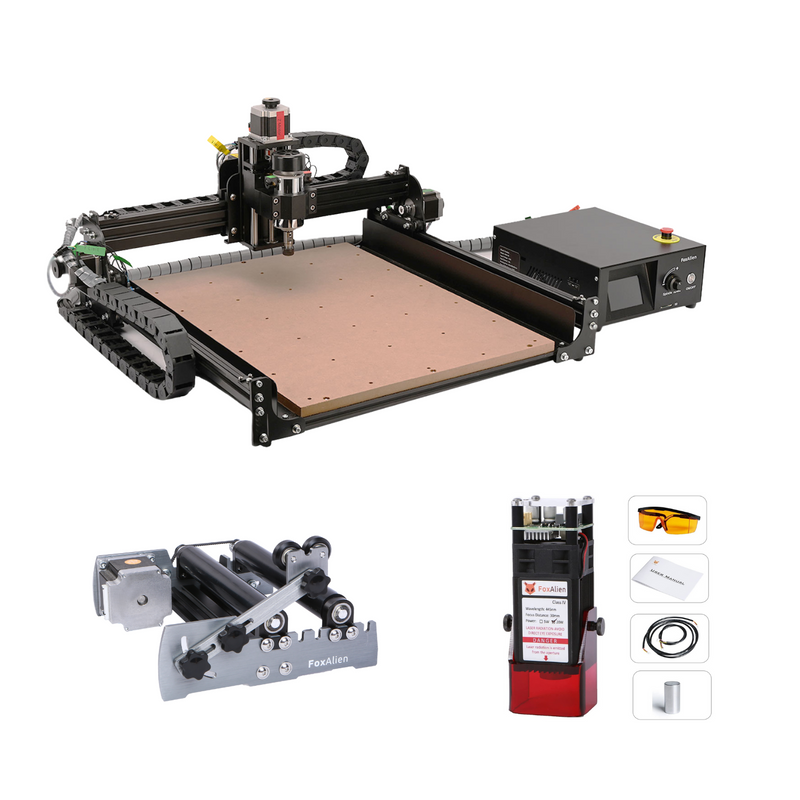

CNC Router 4040-XE with 20W Laser and R57 Rotary Roller Kit
SKU: BD-XE20W-R57 |

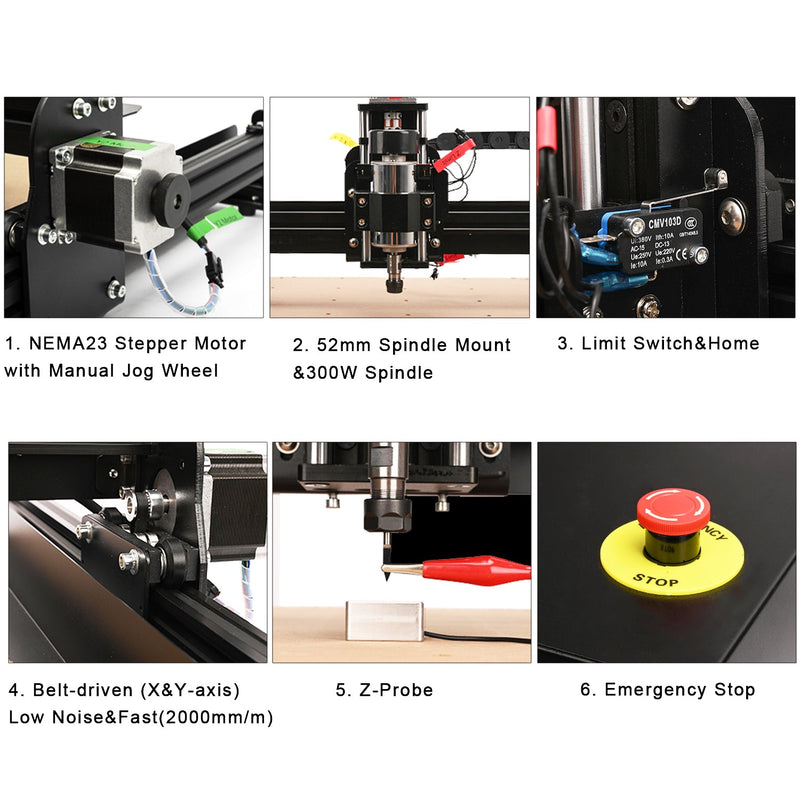

- 4040-XE CNC Router uses 300W spindle and NEMA23 stepper motors, which are more powerful and efficient. Max moving speed is 2000mm/min and spindle speed range is 0~10000.

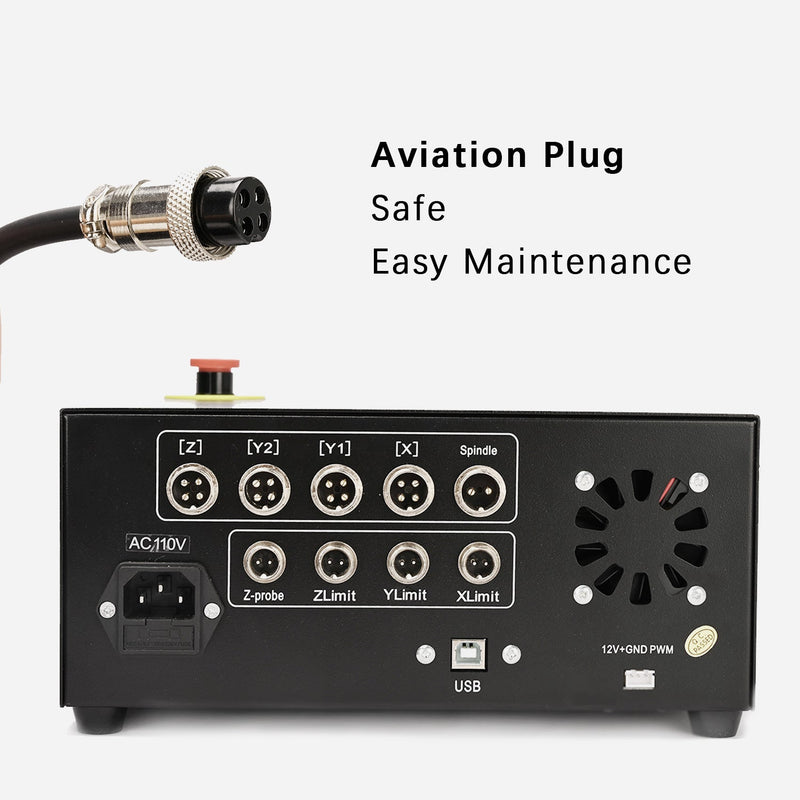

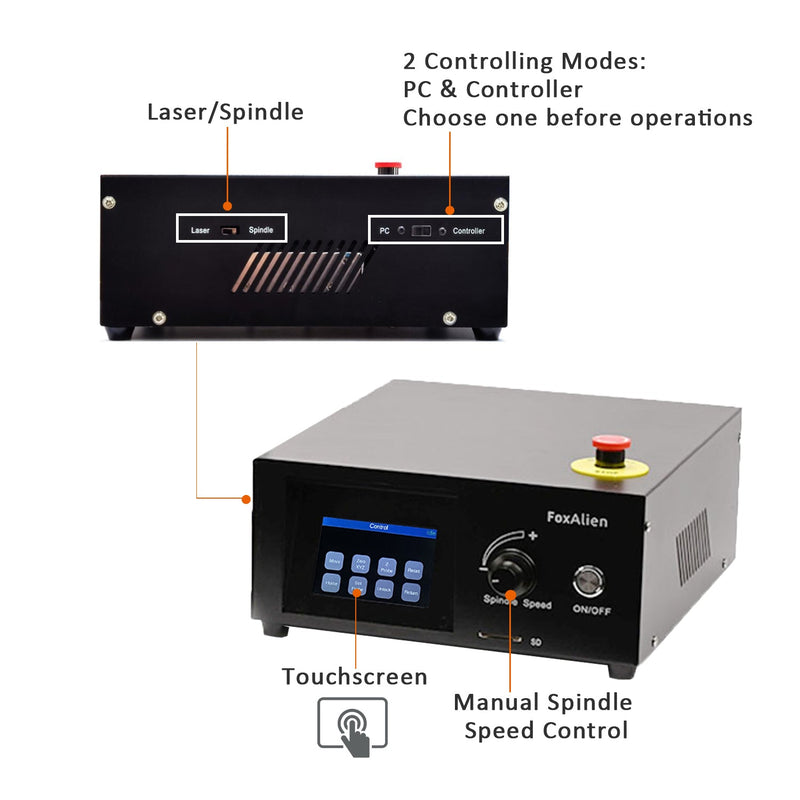

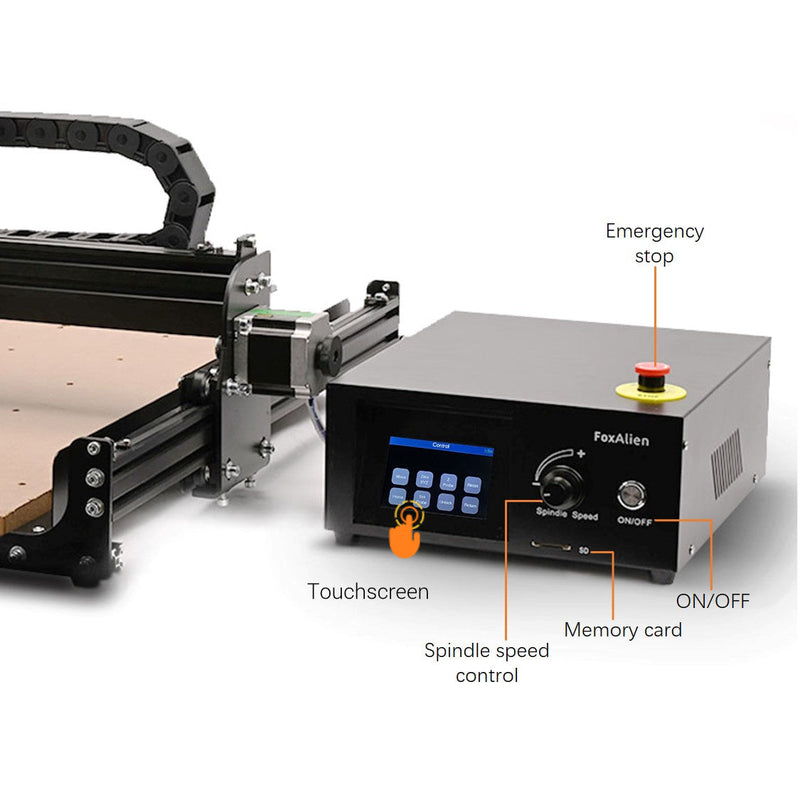

- Control board, power supply, emergency stop, and wires are integrated into a newly design box, which is simple for operation, easy to clean and safe. The controller has a 3.5” touchscreen LCD which also functions as an offline controller.
- It’s capable to engrave, cut and drill many different kinds of material such as wood, metal, MDF, acrylic, foam, resin, nylon, fiber carbon, PCB and etc. It’s great for home use and business.
- Large engravable area of 15.75”x15.75”x2.17” (400x400x55mm). It’s capable to handle both small and large material. The CNC machine is based on GRBL, it is compatible with GRBL-control software.

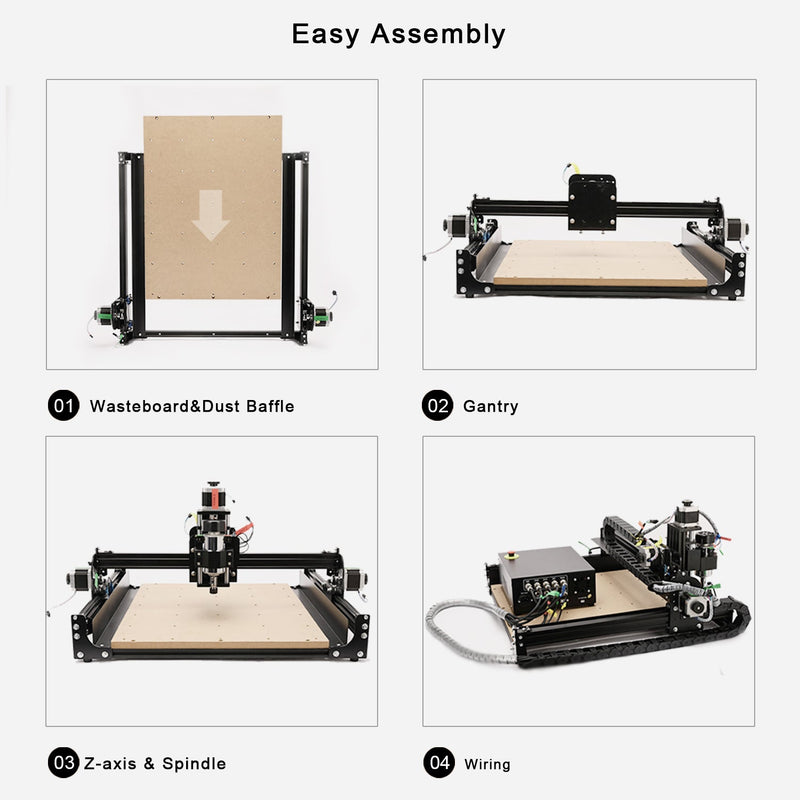

- Easy assembly. Main parts are pre-assembled, it only takes 15-30mins to fully assembly. Wires are labeled clearly for fast connection and bundled into drag chain for easy management.
FoxAlien CNC Machine 4040-XE covers a year warranty and free lifetime customer service, buy with confidence.
*The 4040-XE , the 20W laser kit and the R57 Rotary Roller will be shipped separately. Laser Kit will be shipped from the China warehouse by express.
FoxAlien 4040-XE is an CNC router with large engraving area of 15.75”x15.75”x2.17” (400x400x55mm), which has a powerful 300W spindle and support up to 15000mW laser module.
4040-XE is an extreme and advanced CNC router in FoxAlien family. With the powerful spindle and stepper motors, it has better performance and high accuracy in engraving and cutting different types of material.
- Model: 4040-XE
- Active Working Area: 15.75 x 15.75 x 2.17 inch (400*400*55mm)
- Spindle Power: 300W
- Stepper Motor: NEMA 23
- Accuracy: 0.1mm
- Maximum Moving Speed: 2000mm/min
- Input Voltage: 110V/220V
- Input Current: 110V/10A; 220V/5A
- Control Method: Computer & Controller
- Support Software: Compatible with Grbl-control software
- Support OS: Windows XP/7/8/10, Linux, Mac OS
- Machine Size: 29.92 x 24.4 x 14.17 inch (760*620*360mm)

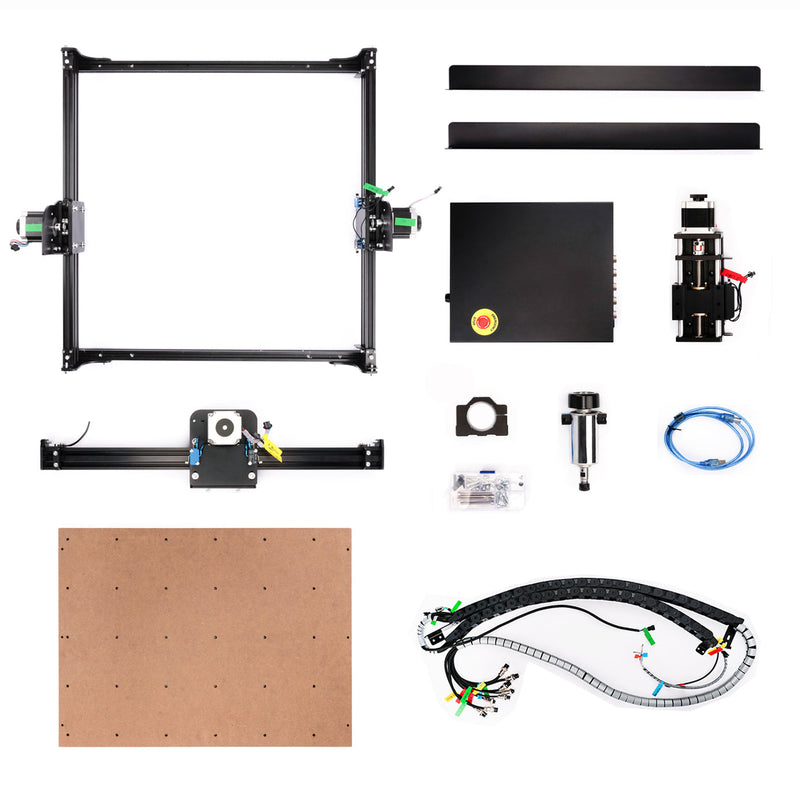

- 1x 4040-XE CNC Router (main parts pre-assembled)
- 1x Controller
- 1x 300W Spindle
- 1x MDF working table
- 10x Engraving Bits
- 10x Nano Blue Coating End Mills (0.8mm-3.175mm, 1/8” shank)
- 4x Hold-down Clamps
- 1x Power Supply
- 1x USB Card Reader
- 1x Memory Card
- 1x Z Probe
- 1x User Manual
- Packs of screws and tools

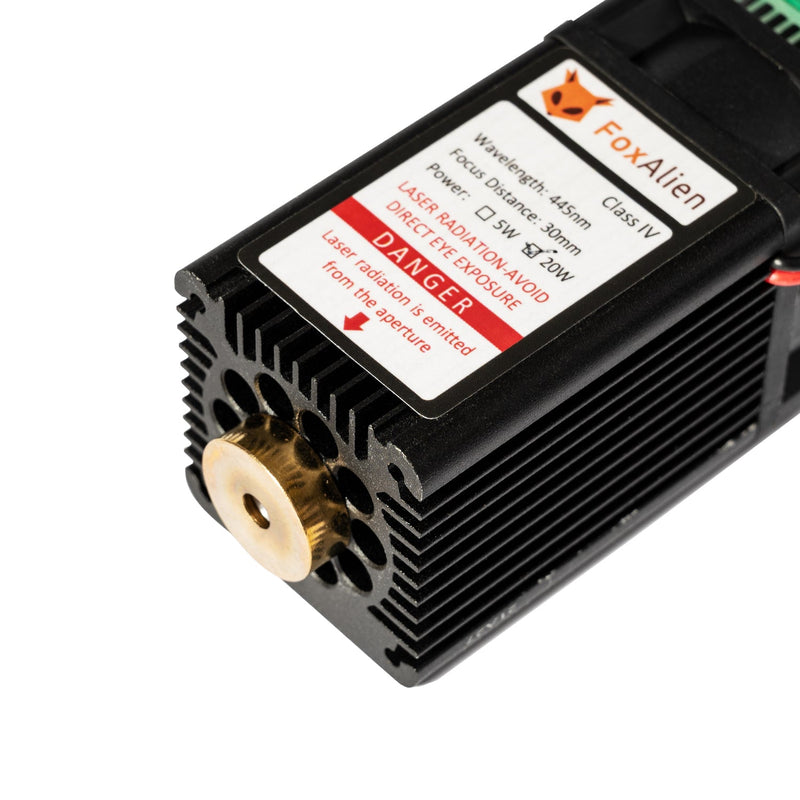

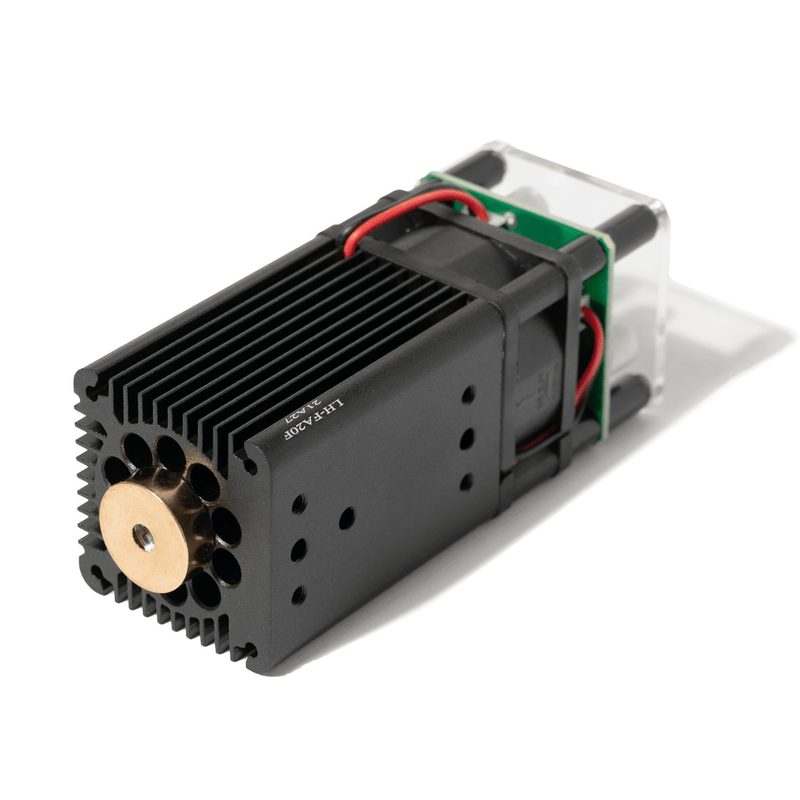

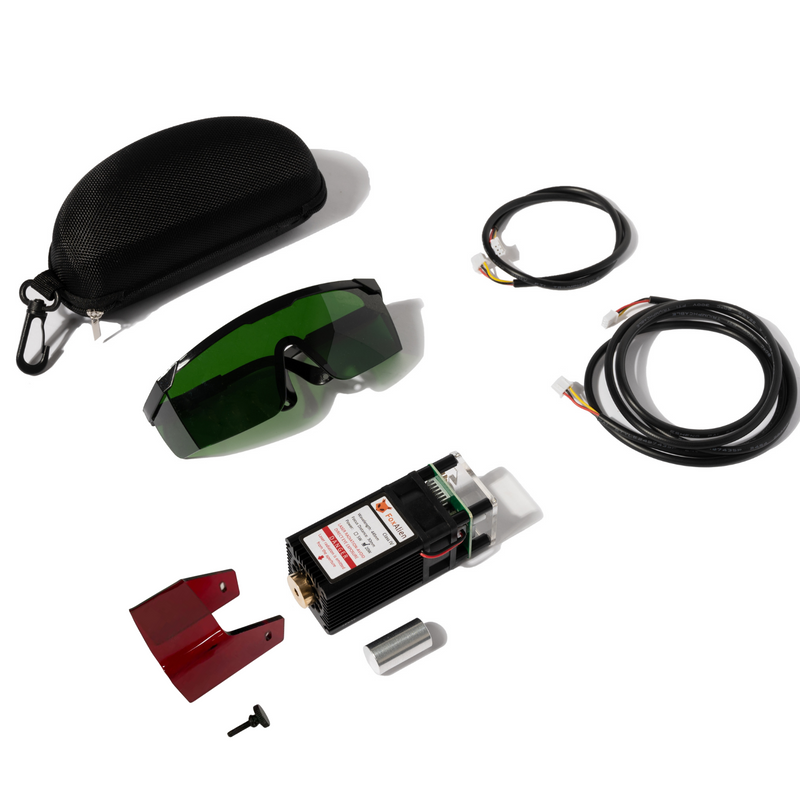

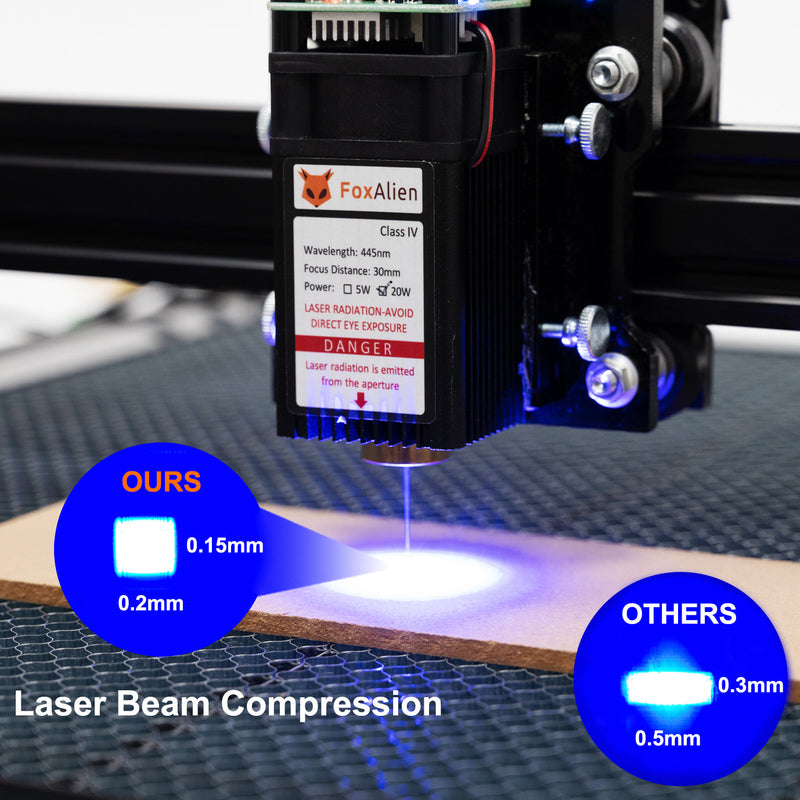

- 20W Fixed Focus Laser Module Kit
- Anti-Laser Shield

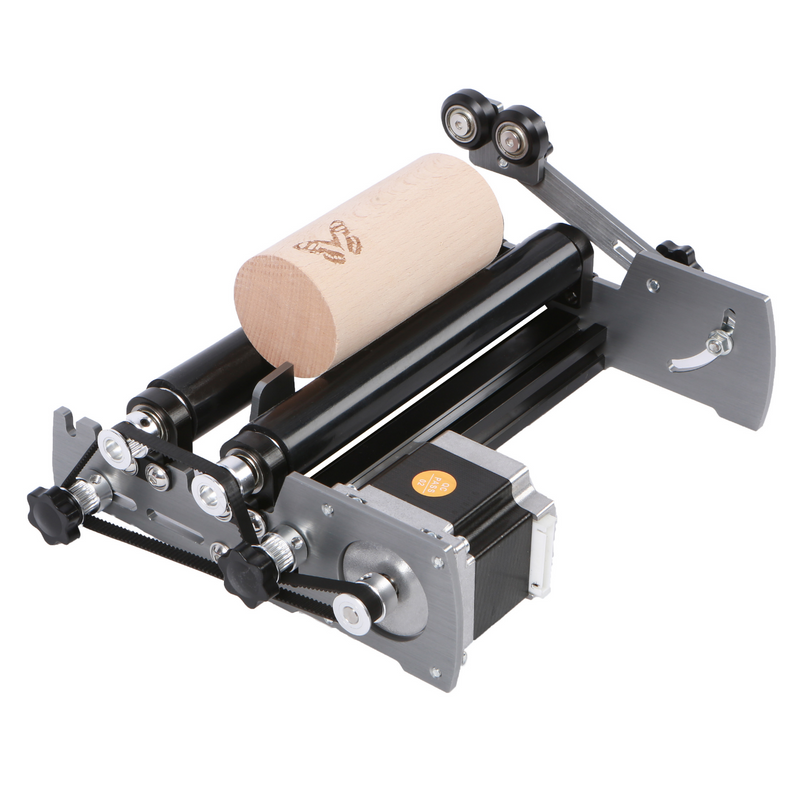

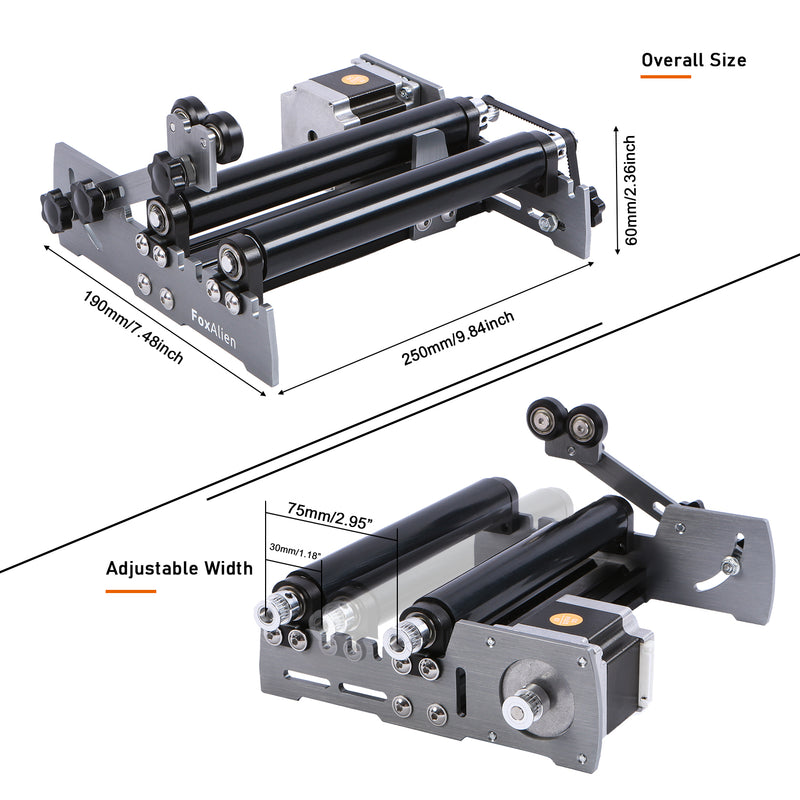

- R57 Rotary Roller
