FoxAlien Reizer 20W Laser Engraver with Rotary Roller Bundle Kit
SKU: BD-Reizer-Roller |

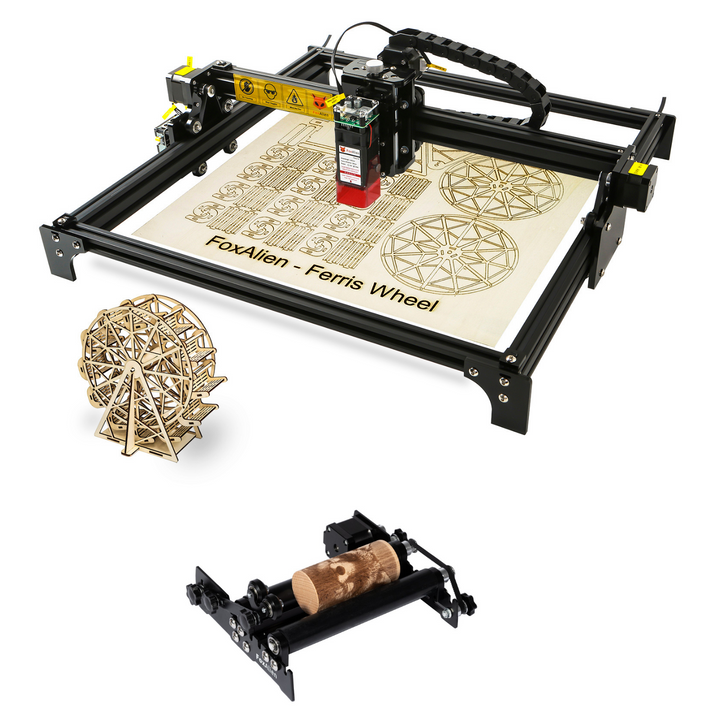

- This bundle includes a FoxAlien Reizer laser engraving machine and a rotary roller for laser engraving.

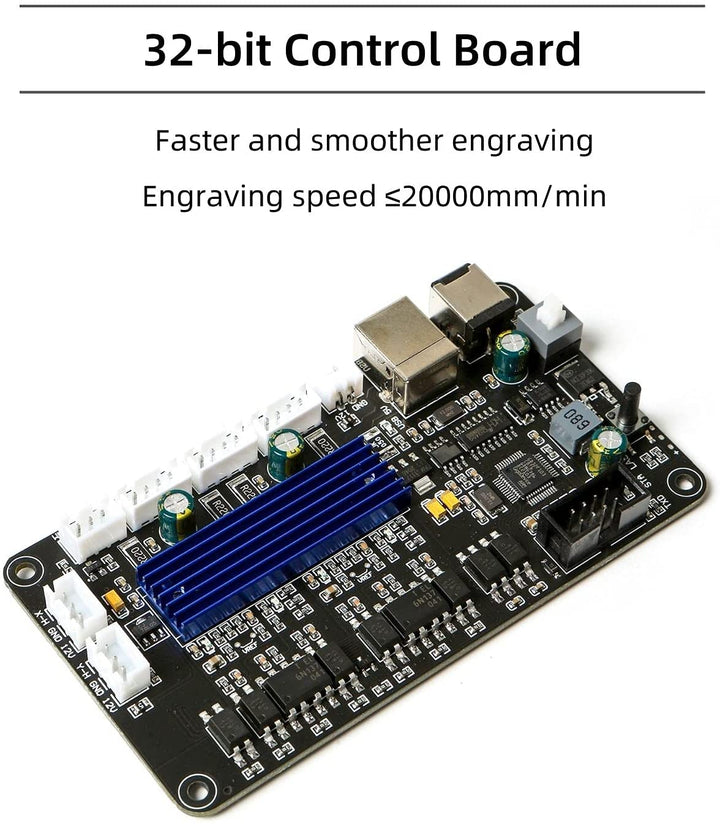

- The Reizer laser engraver equips with a 32-bit control board and an adjustable Z-axis for easy focusing. The 32-bit control board enables the machine to work more stably and smoothly.

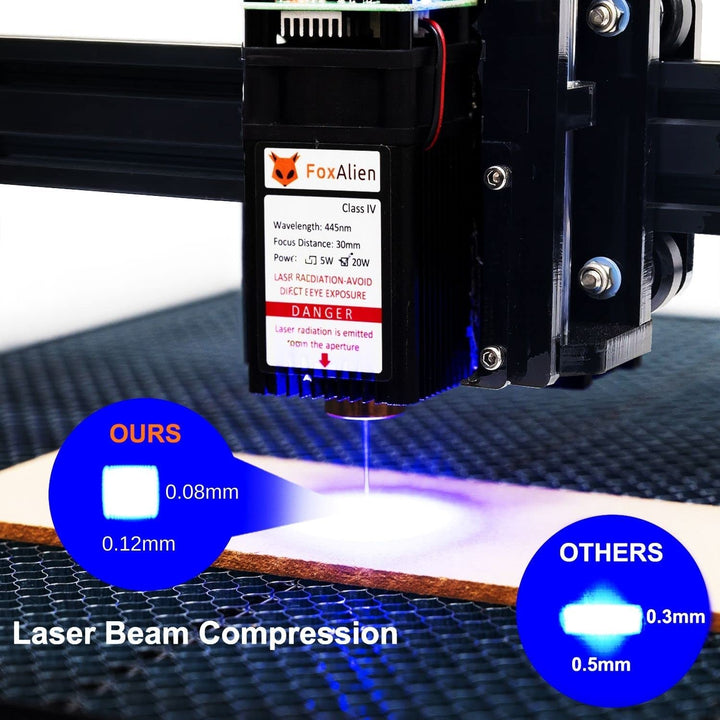

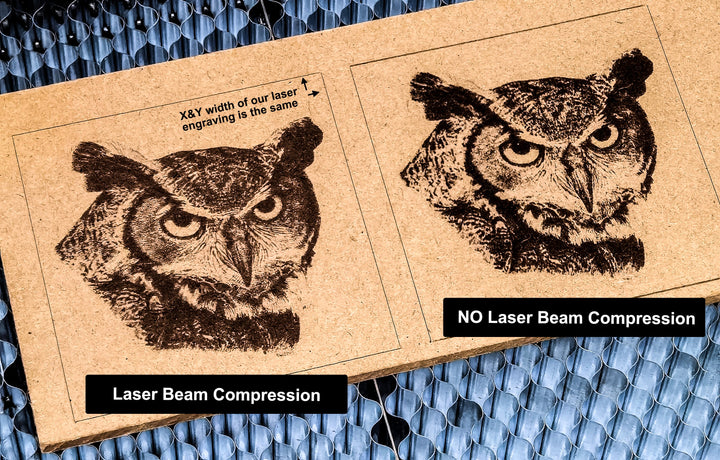

- It has a 20W fixed-lens laser module with laser beam compression technology. The laser dot is only 0.12*0.08mm. This laser module has great performance in cutting and engraving, especially engraving delicate projects and details.

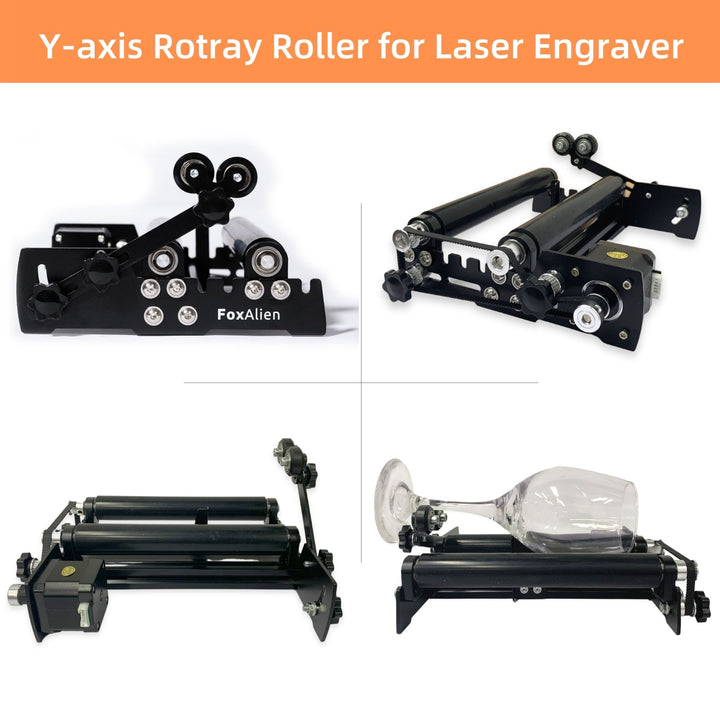

- The rotary roller module is applied to engraving curved surface and cylindrical objects such as round wood, cup, cans, bottles and glass etc.

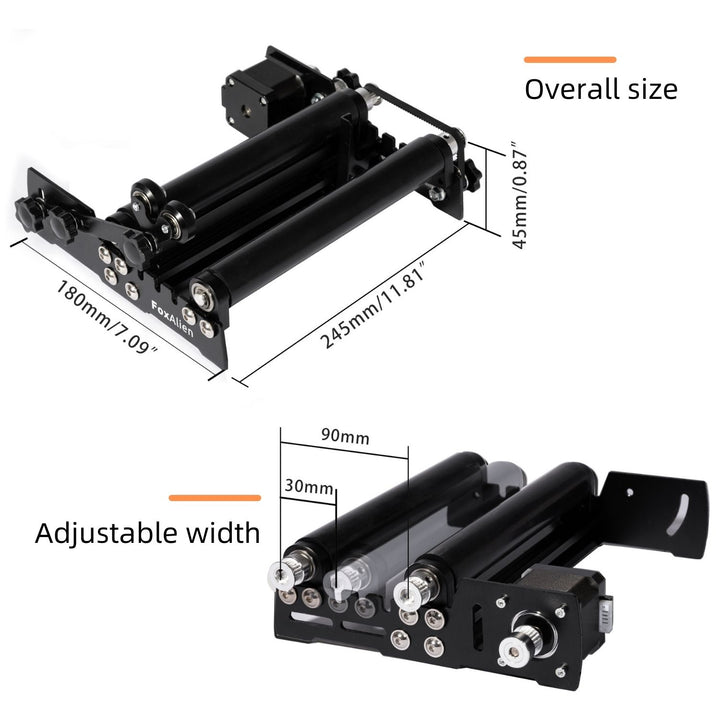

- The rotary module is adjustable according to different size of cylindrical objects. The rollers spacing can be adjusted by relocating the screws to fix different size of objects.
The new batch of the Reizer will come with the anti-laser shield.
*The Reizer and the Rotary Roller will be shipped separately.
Reizer is designed with fast assembly and simple using. It enables hobbyists, amateurs and even beginners to explore the engraving world, to create their own works and have fun!
- Fine workmanship: aluminum body frame, metal parts for stable performance.
- Dual Y-axis motors: machine moves more stably and smoothly with 2 Y-axis step motors.
- Easy Wiring: all wires are labeled clearly and bundled into the drag chain neatly.

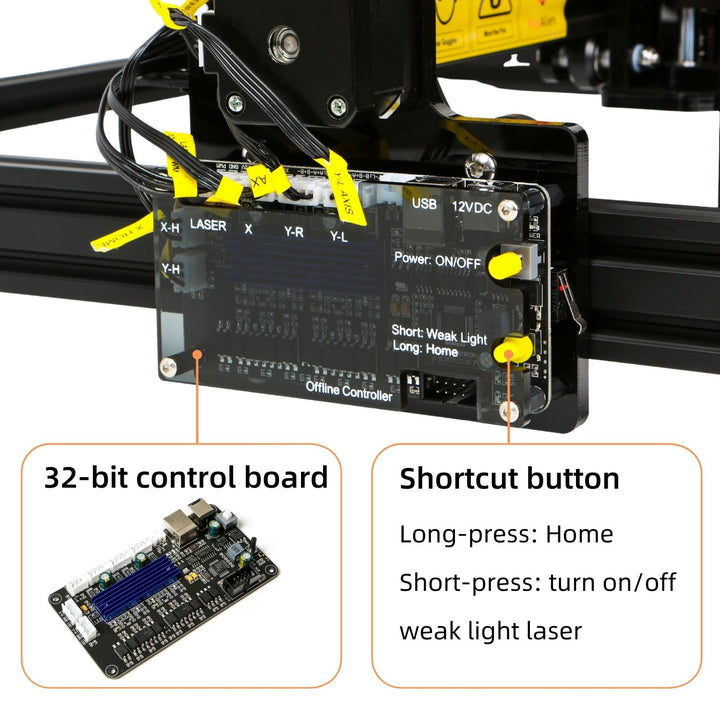

- Newly designed control board with reserved ports for DIY upgrade.

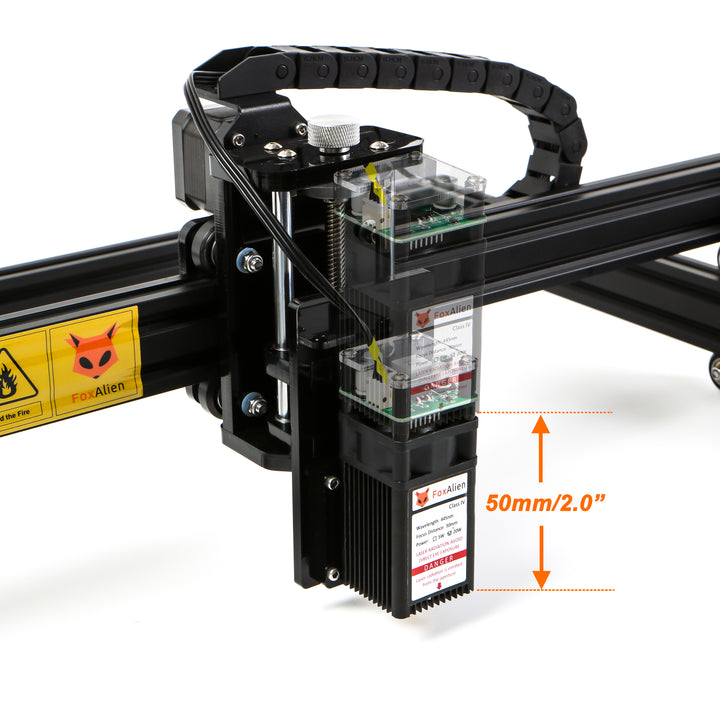

- Laser module position is adjustable by the knobs.
- Low noise: working noise is about 60dB.
Each machine has been set up for aging testing in the factory and then disassembled for packing. We guarantee each machine is brand new.

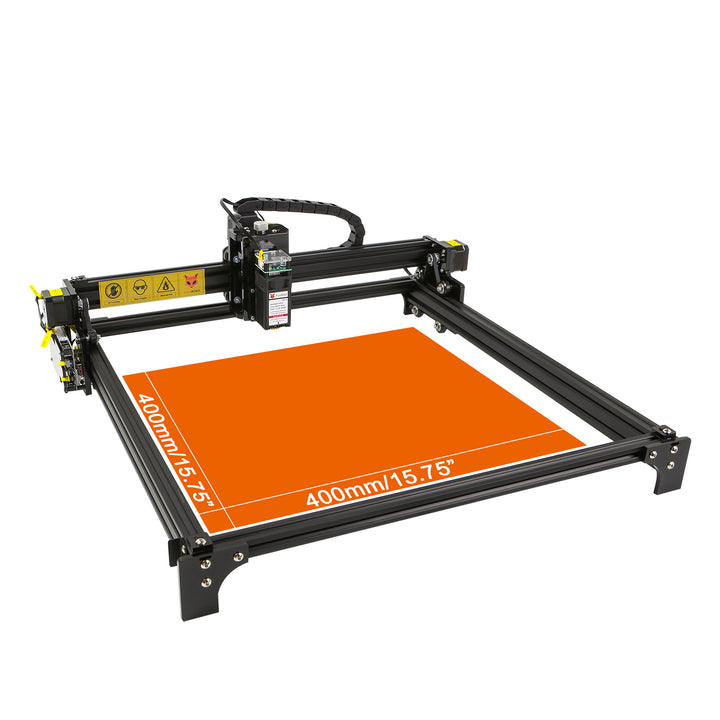

- Engraving Area: 40 x 40cm/ 15.75 x 15.75 inches

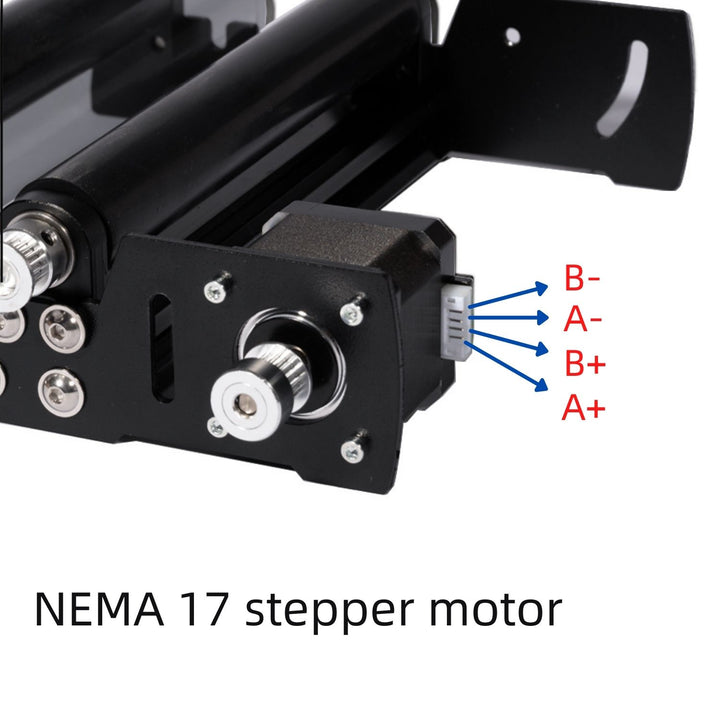

- Step Motor: 42 step motor
- Accuracy: 0.1mm

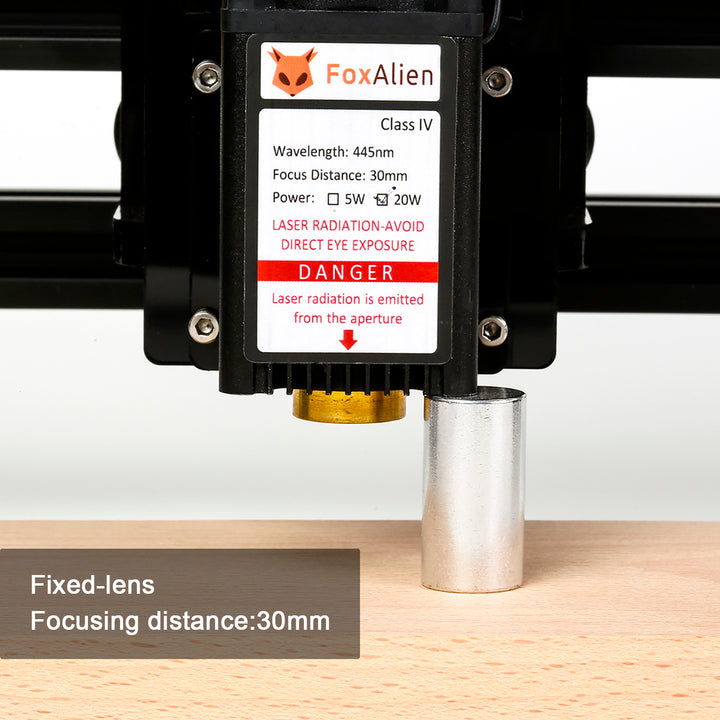

- Laser Module Power: 20W (Fixed Focus)
- Recommend Focus Distance for Cutting: 30mm
- Electric Output power: 20W
- Laser Output power: 5W-5.5W
- Power Supply: 12V/5A
- Support Software: Lasergrbl, Candle, Lightburn, Compatible with all GRBL software
- Support OS: Windows XP, Windows 7, Windows 8, Windows 10
- Laergrbl only can be used in Windows, Lightburn can be used in Windows and MacOS

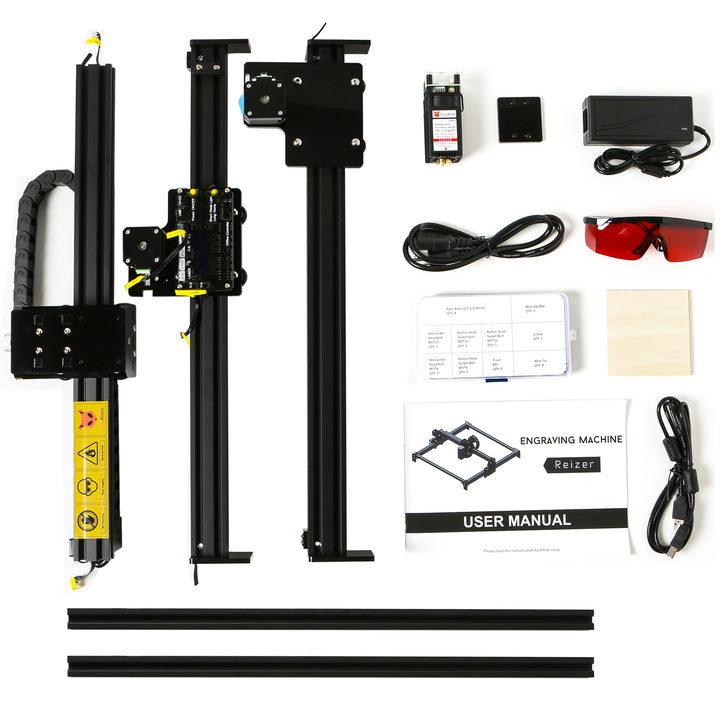

- 1x Reizer Engraving Machine (Main Parts Pre-installed)
- 1x 20W Laser Head
- 1x Power Supply
- 1x USB Cable
- 1x U Disk
- 1x Goggle
- 1x User Manual
- Packs x Screws
