CNC Router Machine Vasto XL V2 | Closed Loop Stepper Motors

SKU: CNC-BH57-Vasto6060V2-US
$2,999.99 $2,299.99 SAVE $700.00

Ship to: USA

USA
Canada
Europe
UK

QUANTITY

American Express Mastercard PayPal Visa JCB Diners Club Discover JCB

[Closed Loop Stepper Motors] The Vasto V2 equips with the FoxAlien latest Nema23 60-86 closed loop stepper motors, this enables the Vasto can run faster, smoother and lower noise level. The max moving speed is 5000mm/min, which is 2.5 times faster than the Vasto V1. The max torque is 2.6N.m, which is 33% higher than the Vasto V1, 18% higher than the XE-PRO.

[Industrial Grade] The FoxAlien Vasto CNC is built in industrial grade components, comes with HG-15 linear bearings on every axis, 16mm ball screws on XY axis and 12mm ball screws on z axis.

[Simple to Use] Main parts are pre-assembled, it just takes 30-45 minutes to assemble the machine.Due to its super rigid structure, no more lose step. Even though your engraving settings are not perfect, it can still carve nicely.

[Easy to Upgrade] The machine comes with the 400W spindle, which can capable of engraving and cutting wood, acrylic, carbon fiber, aluminum and brass. It also comes with the 65mm and 69mm clamp, that you can easy to upgrade the Makita Router RT0700C and DeWalt DWP611 Router.

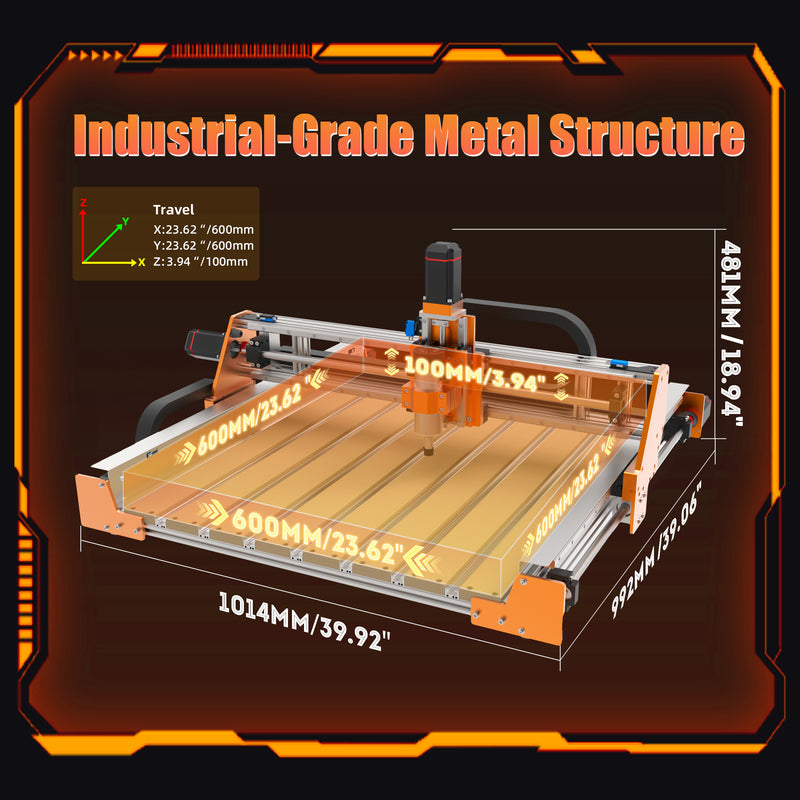

[T-slot Hybrid Table] The Hybrid Table offer multiple workholding options. The working area is 23.62"x23.62"x3.94"(600mm x 600mm x 100mm)

Description

Description

FoxAlien CNC Router Machine Vasto has been our best CNC Machine for a long time. Since its launch in 2021, Vasto has received a lot of praise from users. Now, the Vasto V2 version allows Vasto to evolve further and become a better CNC Machine. The Vasto V2 equips with the FoxAlien latest Nema23 60-86 closed loop stepper motors, this enables the Vasto can run faster, smoother and lower noise level. The max moving speed is 5000mm/min, which is 2.5 times faster than the Vasto V1. The max torque is 2.6N.m, which is 33% higher than the Vasto V1, 18% higher than the XE-PRO.

Hardware Specification

  • Working Table: T-slot Hybrid Table
  • Cutting Area: 23.62"x23.62"x3.94"
  • Footprint Dimensions: 39.76"x39.37"x17.63"
  • Spindle: 400W
  • Router:  Support 65mm and 69 Router, Makita RT0700C and DeWalt DWP611
  • X Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks
  • Y Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks
  • Z Axis: Dual HG-15 Linear Rails & 12mm Ball Screws & 2 Slide Blocks
  • Closed Loop Stepper Motors: Nema23 60-86
  • Max Torque: 3.1Nm
  • Machine Structure Material: All Metal



Package List

  • 1x Vasto XL CNC router (half-assembled in 4 boxes)
  • 1x T-slot Hybrid Table

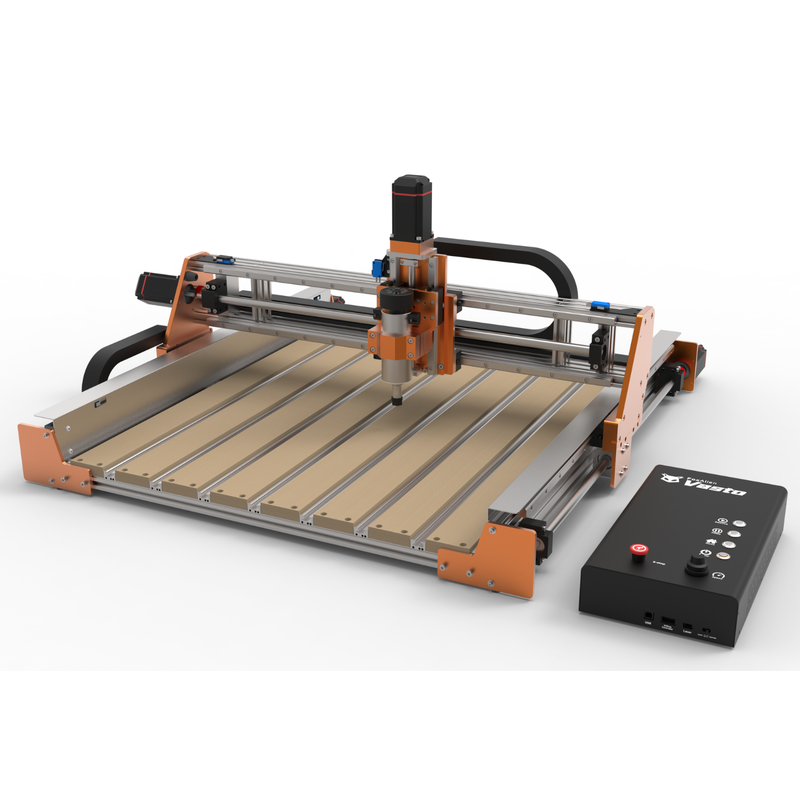

  • 1x Controller
Reviews

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
w
wetterene jean-marie
super machine

elle fonctionne super bien, j'ai testé du pin, du chême et du padouck et tout est parfait j'attend pour l'aluminium de recevoir la matière

J
Joseph Eason
Very Rigid Machine

I love this machine, but there are a few issues I have ran accross.
1st, check every single screw or bolt on the machine and make sure it is tight before running the machine. I had a small one fall off the Z axis and directly into my cut line and my bit hit it.

2nd, about 2 weeks or maybe more into having the machine, one of the y axis motors quit working. FoxAlien did replace it under warranty thankfully. But it took at least two weeks to get to me. That is the reason for the 4 stars.

R
Rodrigues

Support bien present et répond rapidement aux questions
Serieux et displnible pour replndre rapidement

V
Vincent Le Gouic
Beautiful machine

Very well packaged, very easy to assemble and impressive machine.

D
Dennis Murrell
My first CNC.

I set up my Vasto XL and all went well. I’m becoming more comfortable with CAD and CAM program and created my first project. It was a spoil board with screw down holes, grid lines, surfacing and even put the FoxAlien logo on it. I’m very happy with the Vasto XL, looks to be a well made machine. Thanks…
