60W Spindle Dust Shoe for Masuter & 3018 CNC Router

SKU: DustShoe-60W-PETE-Ryobi Green |

$60

  • Compatible with Masuter CNC Router
  • Made by Resin 3D Printing.
  • Made in USA.
  • Designed by Pete Aronson.
  • Also fits the SainSmart, Genmitsu 3018 series CNC.
  • Do not accept return or exchange, free shipping to US address, ready to ship with 5-7 days. Ship to US only.

Description

Hi Guys,

For you guys with the 60 Watt, 45mm spindle on your 3018, or Masuter with standard spindle. I make the Mini Suck It Up! Vacuum Dust Shoe.

** This WILL NOT fit the 300 or 500 Watt Spindles, for those go to 300/500 Watt Suck It Up!

Man, this really SUCKS! I used some aluminum mill swarf from my mini mill and it sucks it right up. Wood, carbon fiber and router aluminum swarf will be easy-peasy! Video below.

Uses an 1-1/4″ Shop Vacuum hose. Craftsman from Lowe’s and Amazon both fit perfect. The hose needs to be 1-1/4″ inside diameter and the hard plastic hose end needs to be removed….most rotate off backwards….”Righty-Loosey”

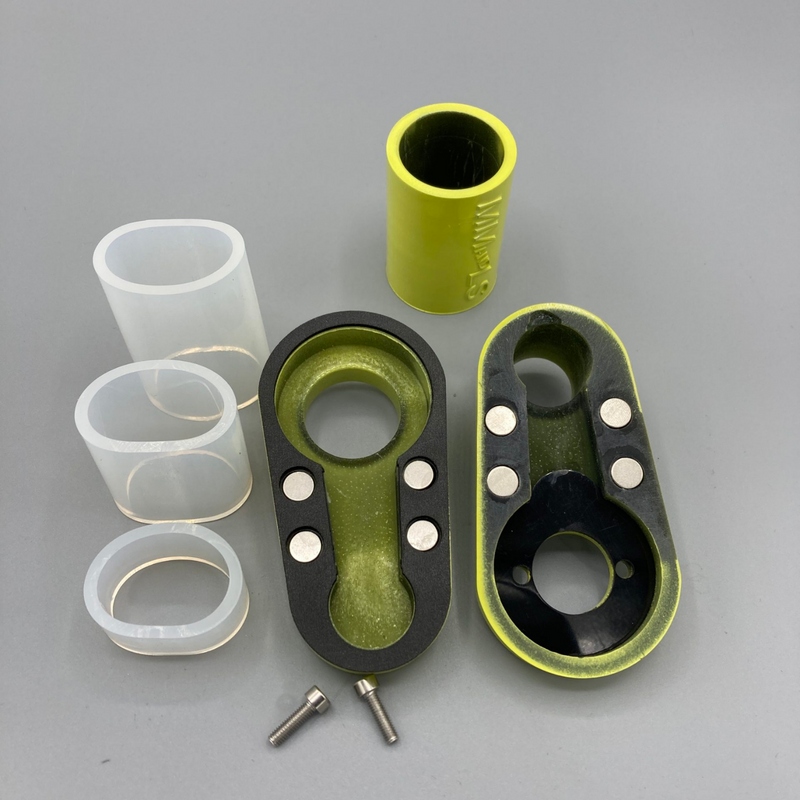

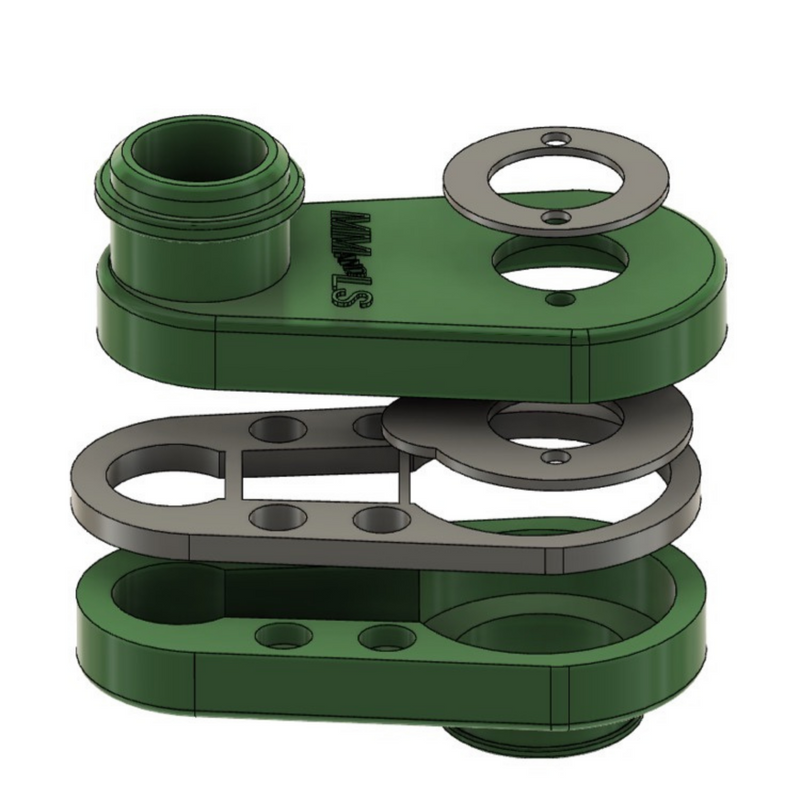

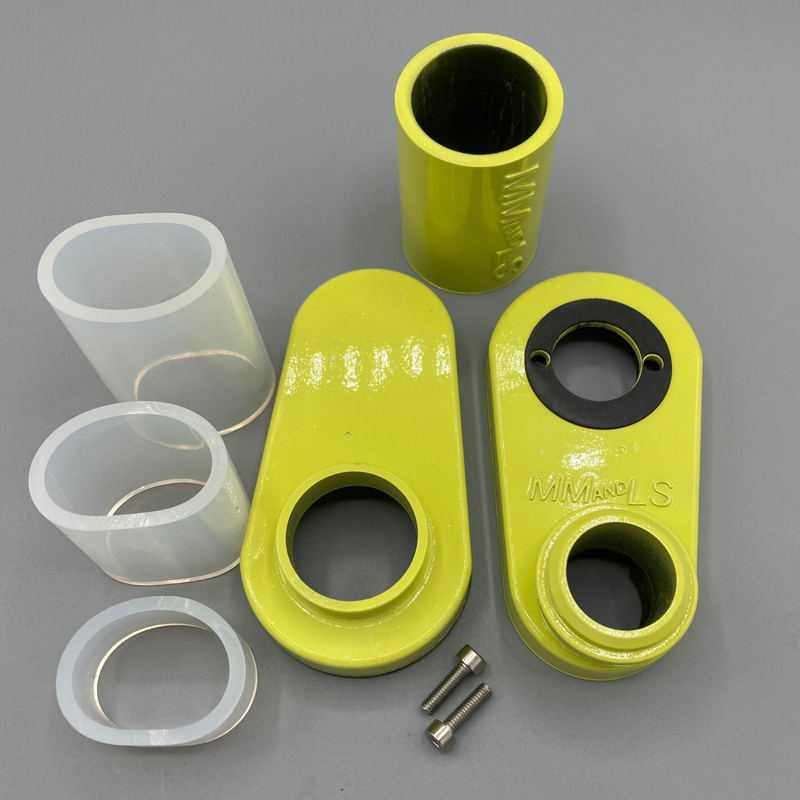

Resin 3D Printed in Siraya Tech “Build” resin, incorporates a 5/64″ thick laser-cut Delrin support in the top, laser-cut foam gasket between the halves, Laser-cut polyurethane foam gasket to the spindle,  four rare earth magnets hold the halves together & make it easy to change bits and assorted length silicone 1-1/4″ pickup hoses. My designer Dave Kern and I put in a bunch of hours to get this done right.

Install notes:

Upper shoe mounts to the 60 Watt Spindle with two included M4 x 14 Allen Head Capscrews.

Choose the length of the silicone hose wisely. Be sure to allow room for hold down hardware to clear. Error on the shorter side and/or move the spindle to the four corners of your workpiece to verify clearance. What looks “too short” will still Suck really well You can cut them to length easily if you need a between length.

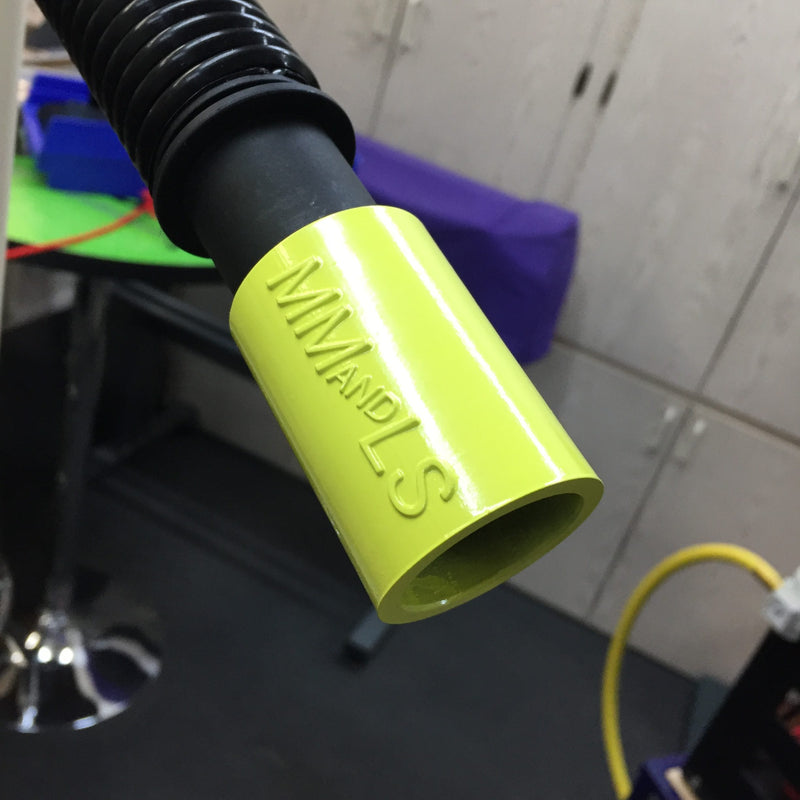

I include a 1-1/4″ shop vac hose connector. Funny, Amazon does not sell these, so I 3D Printed them. They will also be black. If you do the overhead mount, this enables you to join hoses and you can leave one attached and the other one, you can store easily.

I used a 12″ HarborFreight clamp, part numbers 62123, 46807, 68975, 69221, 69222, 63017
https://www.harborfreight.com/hand-tools/clamps-vises/12-in-ratcheting-bar-clampspreader-62123.html

I used a 24″ piece of Flowguard Gold 3/4″ water heater PVC from HomeDepot, part number 206153
https://www.homedepot.com/p/Charlotte-Pipe-3-4-in-x-2-ft-CPVC-Water-Supply-Pipe-CTS-12007-0200R/203019298

To hold the hose to the pipe, I used HomeDepot Nite Ize 24″ Loopable Gear Tie
https://www.homedepot.com/p/Nite-Ize-24-in-Black-Gear-Tie-Loopable-2-Pack-GLL24-01-2R3/313478932

Eleven foot 1-1/4″ vacuum hose, so you can put the vacuum in a closet/cabinet to quiet it down. From Amazon
https://www.amazon.com/gp/product/B07M6RHB7V/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

You can do whatever, but these are a good start, and pretty reasonable in price.
