FoxAlien
CNC Router Masuter Pro with 40W and Black R42 Rotary Roller Kit
SKU: BD-MasuterPro40W-BLKR42 |
Structure Upgrade: Masuter Pro is an All-Aluminum CNC router, which makes the machine sturdier than the last version. The Z-axis uses linear rails instead of the optical axis, this greatly improves the stability and accuracy.
Upgraded Controller Box: The control board is upgraded to a compact controller box. The emergency stop button and home button are more easily and more convenient to access. The control box is also dust-proof for easy maintenance.
Compatibility Upgrade: Masuter Pro includes 2 spindle clamps: 52mm & 65mm. The 52mm clamp can accommodate the 60W spindle, 300W spindle and the FoxAlien laser modules. The 65mm clamp is for customized upgrade, such as 65mm Makita router, 1.5KW spindle, etc. Masuter Pro also supports the 69mm spindle clamp, please buy separately.
Assembly Upgrade: Main parts are pre-assembled, and the part of the wires are pre-installed to the controller box. It takes only 10-15 minutes to fully assemble.
Additional Working Light: A small working light is added to the Z-axis. It helps you to monitor the carving details and process more clearly. Each stepper motor has a knob for easy adjusting by hand.
The Masuter Pro, the 40W Laser Kit and R42 Rotary Roller will be shipped separately.
Specifications:
- Active Working Area: 15.75” x 15.75” x 2.36” (400 x 400 x 60mm)
- Spindle: 775; 10000RPM
- Input Supply: 12V/5A
- Stepper Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
- Supported OS: Windows XP/7/8/10/11, MAC OS, Linux
Package List
- 1x Masuter Pro CNC Router Machine (Main part pre-installed)
- 1x Z Probe
- 1x Controller Box
- 4x Hold-down Clamp
- 1x 52mm Spindle Clamp
- 1x 65mm Spindle Clamp
- 1x Power Supply
- 1x USB Cable
- 1x U Disk
- 1x User Manual
- 10 x Router Bits
- Packs of screws
- 1 x 40W Laser Module Kit
- 1 x Black R42 Rotary Roller Kit
Customer Reviews

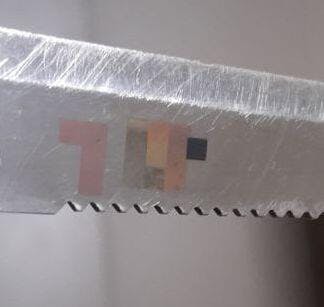

I am impressed by the capabilities of the system. Not only it is accurate and easy to assemble, but the quality of results you can achieve with it can be astonishing. Sure, it will require a little bit of tinkering and trial and error (especially if you are a beginner like myself), but with the support provided by the community and FoxAlien team you will never feel like you've hit a dead end. The laser is also an amazing tool - I was able to cut through 2 cm pinewood no problem and with little trial also through 3 cm oak board. Laser marking of stainless steel is also possible (for full range of colors), engraving aluminum, stone tiles and similar material, not to mention the typical wood engraving the system is moist suited to.
Overall I am very happy with the system and would recommend to any beginner or intermediate user.
The amount of support through Facebook and via messenger is great. Had issues with the laser and they've replaced it with twice the power one, upon request by simply paying the difference
Tolle Maschine
I have everything listed here but purchased separately. The CNC works wonderfully with upgrading to using the Makita router from the supplies spindle. The cuts are smooth and accurate. The laser and rotary tool work great as well. You will need separate programs to run either but there are many free options out there. FoxAlien customer service is top notch. I had some issues with the laser lens and they worked quickly to help resolve. I highly recommend the masuter pro and foxalien.
