[Flagship] CNC Router Machine XE-Ultra with 1.5KW VFD Spindle Bundle Kit

SKU: BD-XEUltra-15VFD-US
$3,203.90

Ship to: USA

USA
Canada
Europe
UK
Australia

QUANTITY

American Express Mastercard PayPal Visa JCB Diners Club Discover JCB
  • Mega-Scale 33"x33"x4.72" Workspace: Tackle ambitious projects with a super large XYZ working area (33x33x4.72in) and 5.3" pass height, engineered for large materials and complex designs.
  • Industrial Rigidity & Precision: Equipped with 16mm ball screws (XY) and 12mm ball screws (Z) paired with HG-15 linear rails on all axes, ensuring smooth and high-accuracy movement. The heavy-duty 46×80mm aluminum frame ensures long-term stability and rigidity.
  • 2.6 N.m Closed-Loop Stepper Motors: Featuring 60-86mm closed-loop stepper motors delivering powerful 2.6Nm torque with intelligent step-loss protection, maintaining high performance and precision even at high speed up to 5,000mm/min.
  • Open Spindle Ecosystem: Total flexibility on spindle choices. Customize your setup—supports 65mm routers, FoxAlien 1.5kW VFD spindle, or FA20W/40W/80W engraving modules (65mm clamp included, this bundle kit includes the 1.5KW VFD Spindle Kit).
  • Industrial Inductive Limit Switches: All-axis sensors offer instant response (0.5ms response), anti-interference performance, and extended durability. Physical hard limits provide dual-layer collision protection.
  • Smart 32-Bit Control Box: Features real-time stepper motor diagnostics via malfunction indicator lights for streamlined troubleshooting. There is a reserved port for 4th axis (coming soon).
Description

Description

This is brand new model of FoxAlien CNC router machine. It features with massive workspace of 800x800mm. It is built with linear rails and ball screws in all 3 axes, which greatly improve the engraving accuracy.

Specifications

  • Active Workspace: 840 x 840 x 120mm
  • Machine Footprint: 1415 x 1244 505mm
  • Stepper Motor: NEMA 23 closed-loop stepper motor (60-86)
  • Torque: 2.6N.m
  • Max. Moving Speed: 5000mm/min
  • Control Board: 32-bit

!! Notice:

  • Worktable/spoilboard is NOT included.

Package List

  • 1x XE-Ultra 8080 CNC router machine
  • 1x Controller box
  • 1x Z probe
  • 1x Test MDF board
  • 10x Engraving bits (30deg*0.2mm)
  • 1x screw box
  • Wrenche
  • 1x 1.5KW VFD Spindle Kit

Reviews

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Shawn Lamb
Well built

This machine is very solidly built, precise machine. Not hard to assemble as everything is well marked. Great higher level product that puts it in a category above the “hobbyist” level without breaking the bank

J
Jan K.
Great machine - plotting for now :-)

Just wanna leave a very good rating for the given machine - absolutely love it for now!

I did do a few test runs with the 1.5 KW Spindle for testing (very silent that beast) and flattening my spoilboard.

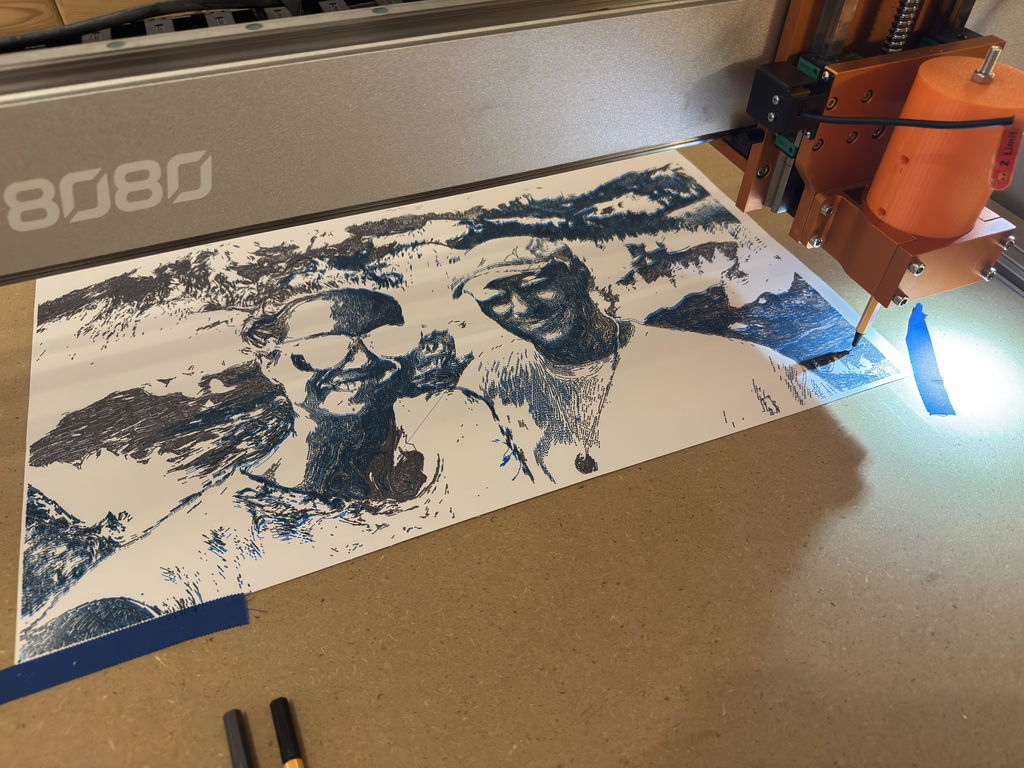

Other then that im currently the machine for test plotting to see about reliability of the motors, repeatability etc. - printed my own pencil holder for that. - Foxalien maybe you can add one to your portfolio? ;-)

Also, I did mount the CNC on my own 2040 aluminum profiles ordered by a separate vendor as sadly the spoilboard / frame set was not available in europe. Thanks @ Foxalien for swiftly providing the needed specs!

That said the overall support received so far was just superb, thanks in particular to Ophelia which I kept very busy with my questions even over christmas!
