FoxAlien

CNC Router Machine Vasto XXL

SKU: CNC-FG1010-VastoXXL |

$4,642.91 $5,628.07 Save $-985.16
Option:
Ship to:
Quantity:

Only 5 pieces in stock!

Free Shipping in U.S.
Fast Delivery
International Shipping Available
Lifetime Customer Support

[Industrial Grade & Large Working Area] The FoxAlien Vasto XXL CNC is built in industrial grade components, comes with HG-15 linear bearings on every axis, 16mm ball screws on XY axis and 12mm ball screws on z axis. The effective working area is 39.37"x39.37"x3.7", this working area is perfect for woodworking business.
[Easy Installation] Main parts are pre-assembled, it just takes 30-45 minutes to assemble the machine, then you can explore the journey of CNC machining.
[Simple to Use] Still based on grbl control, lots of resources can be found on YouTube. Due to its super rigid structure, no more lose step. Even though your engraving settings are not perfect, it can still carve nicely.
[Easy to Upgrade] The machine comes with the 400W spindle, which can capable of engraving and cutting wood, acrylic, carbon fiber, aluminum and brass. It also comes with the 65mm and 69mm clamp, that you can easy to upgrade the Makita Router RT0700C and DeWalt DWP611 Router.
[T-slot Hybrid Table] The Hybrid Table offer multiple workholding options. The working area is 39.37"x39.37"x3.7"(1000mm x 1000mm x 95mm)













Development Background

Over the past 2 years, we have accumulated a lot of feedback from CNC users. The newbies think it is very complicated to set the right parameters such as engraving speed, depth per pass, plunge rate, and so on. The seasoned machinists believe desktop CNCs, such as the 4040-XE, are still not strong enough to cut aluminum and brass easily and precisely. So FoxAlien keeps on thinking to find a solution to satisfy both the newbies and the veterans. What if we can bring a machine that has more room for the new user to make errors, even if the settings are not perfect, they can still carve with nice results. What if this machine can meet the experienced user's requirements to engrave and cut soft metal easily. Now, we are introducing the best CNC Router Machine in FoxAlien’s family. The CNC Machine Vasto upgrades everything: the linear bearings, the extrusions, the ball screws, the motors and the controller box (independent drivers for each axis). This machine comes with the 400W spindle stock. In order to release the full potential of this Monster, we strongly recommend upgrading to the DeWalt DWP611 or the Makita Router. (DeWalt and Makita router are not included)

Hardware Specification

  • Working Table: T-slot Hybrid Table
  • Cutting Area: 39.37"x39.37"x3.94"
  • Footprint Dimensions: 57.09"x55.12"x19.7"/145cm x 140cm x 50cm
  • Spindle: 400W
  • Router:  Support 65mm and 69 Router, Makita RT0700C and DeWalt DWP611
  • X Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks
  • Y Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks
  • Z Axis: Dual HG-15 Linear Rails & 12mm Ball Screws & 2 Slide Blocks
  • Stepper Motors: Nema23
  • Independent Driver: DM542
  • Machine Structure Material: All Metal
  • Laser Output: 10W



Package List

  • 1x Vasto XXL CNC router (half-assembled in 4 boxes)
  • 1x T-slot Hybrid Table
  • 1x Controller
  • 2x Set of engraving bits (10pcs/set)
  • 1x USB cable
  • 1x Power cord
  • 1x Box of screws and tools
  • 1x User manual

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
A
Andrew Montgomery

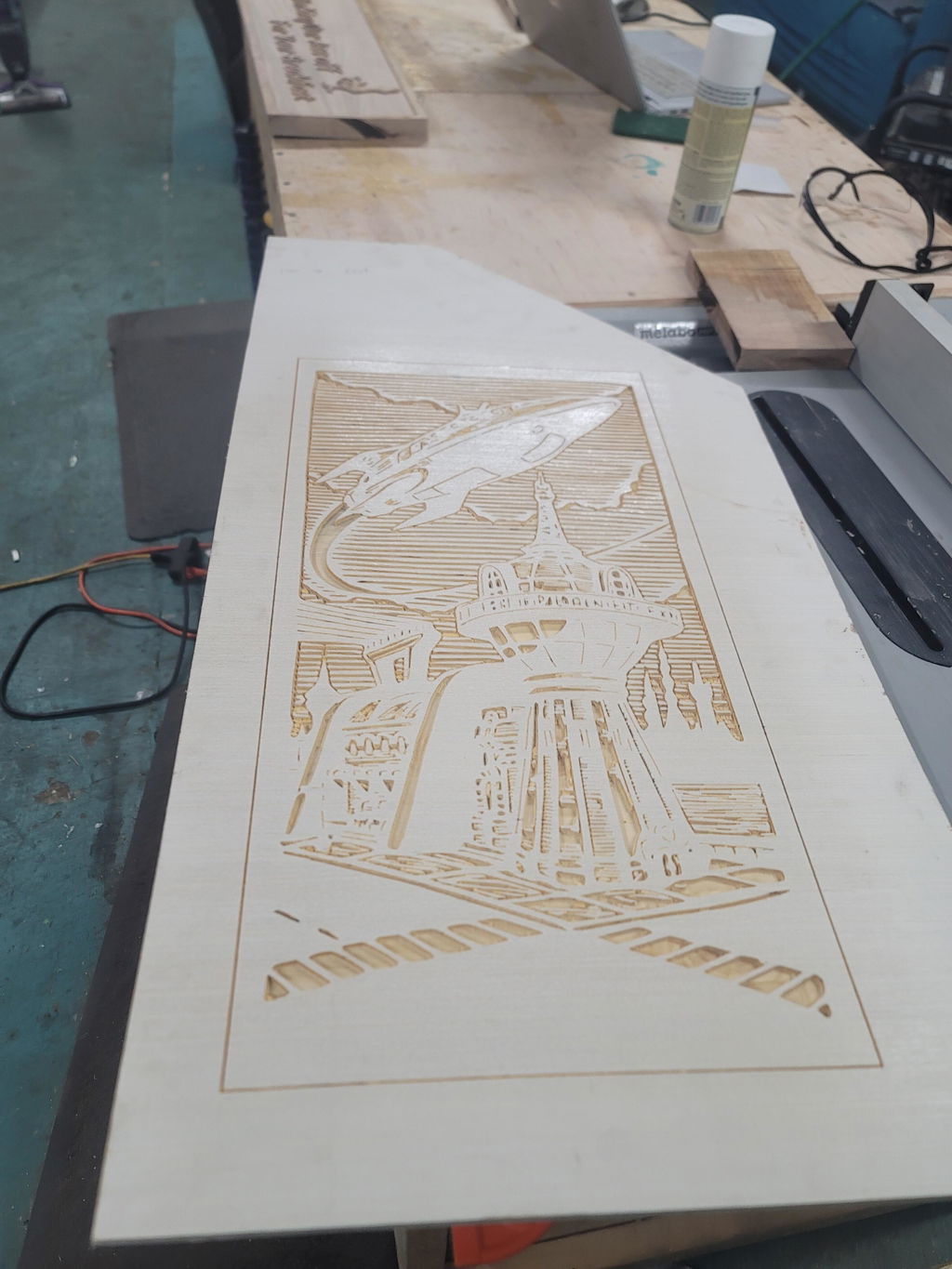

Love the Machine

Absolutely Love the machine
Easy assembly,very robust
Only downfall is don't like candel
The only thing you can adjust when running is spindle speed
