FoxAlien

CNC Router Masuter Pro

SKU: CNC-Masuter-Pro |

€601,46
Free Shipping in U.S.
Fast Delivery
International Shipping Available
Lifetime Customer Support

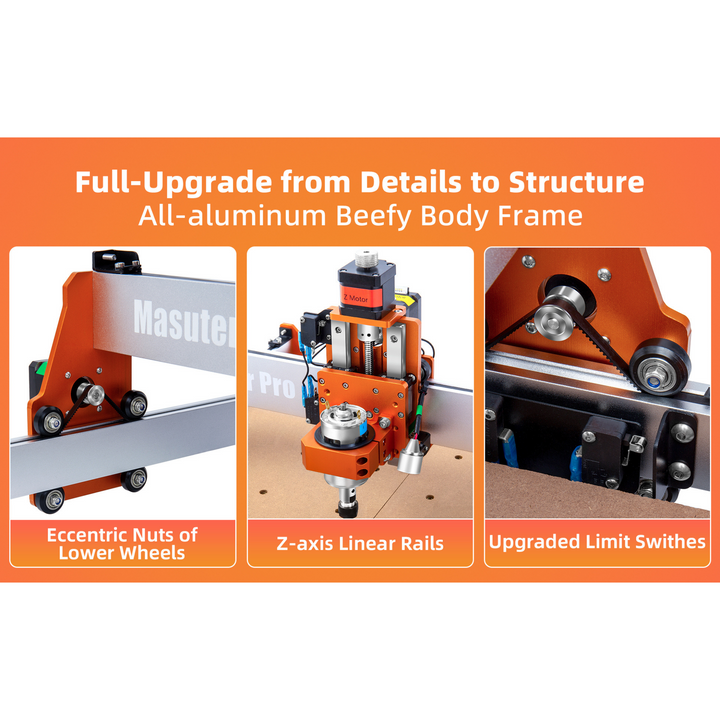

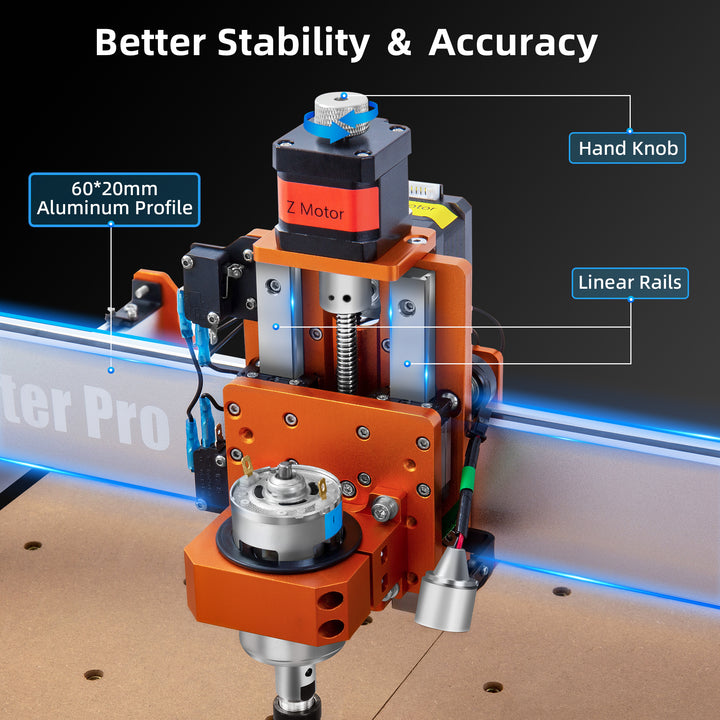

Structure Upgrade: Masuter Pro is an All-Aluminum CNC router, which makes the machine sturdier than the last version. The Z-axis uses linear rails instead of the optical axis, this greatly improves the stability and accuracy.

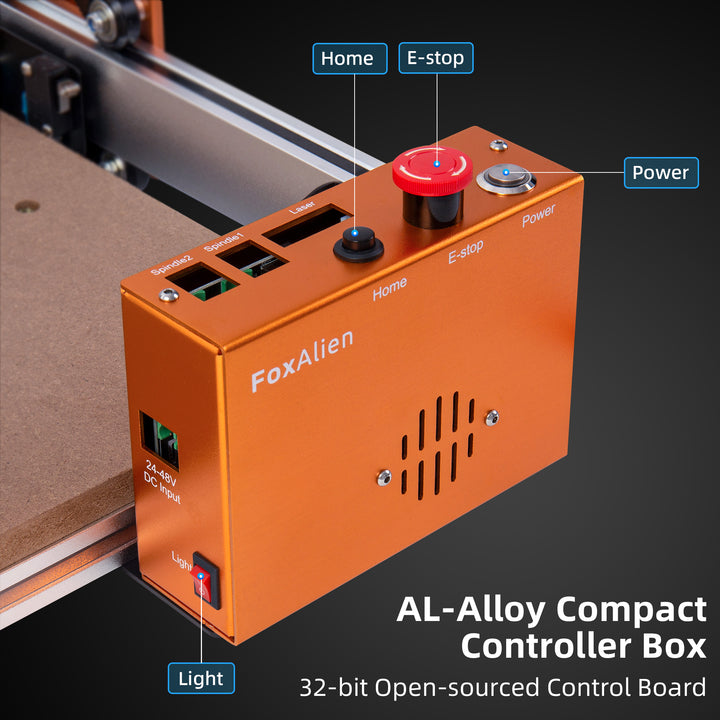

Upgraded Controller Box: The control board is upgraded to a compact controller box. The emergency stop button and home button are more easily and more convenient to access. The control box is also dust-proof for easy maintenance.

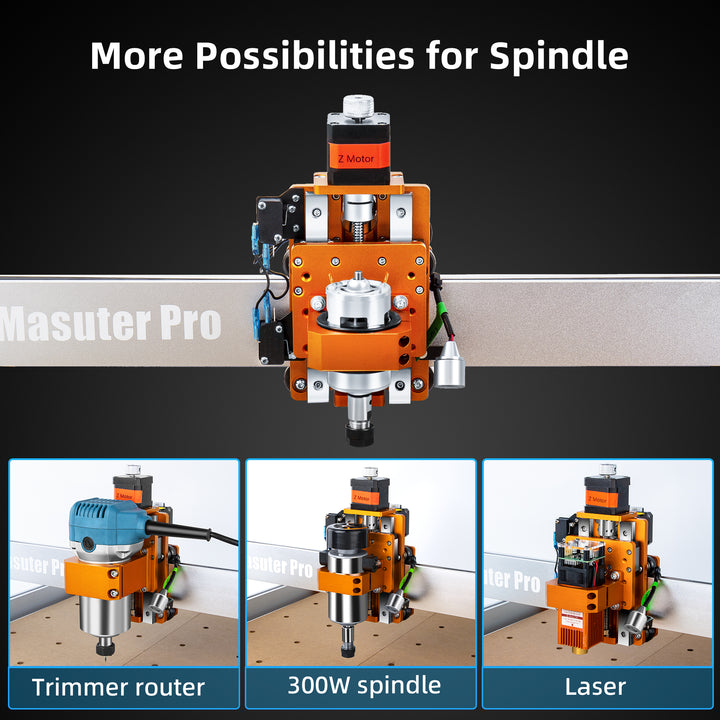

Compatibility Upgrade: Masuter Pro includes 2 spindle clamps: 52mm & 65mm. The 52mm clamp can accommodate the 60W spindle, 300W spindle and the FoxAlien laser modules. The 65mm clamp is for customized upgrade, such as 65mm Makita router, 1.5KW spindle, etc. Masuter Pro also supports the 69mm spindle clamp, please buy separately.

Assembly Upgrade: Main parts are pre-assembled, and the part of the wires are pre-installed to the controller box. It takes only 10-15 minutes to fully assemble.

Additional Working Light: A small working light is added to the Z-axis. It helps you to monitor the carving details and process more clearly. Each stepper motor has a knob for easy adjusting by hand.











Specifications:

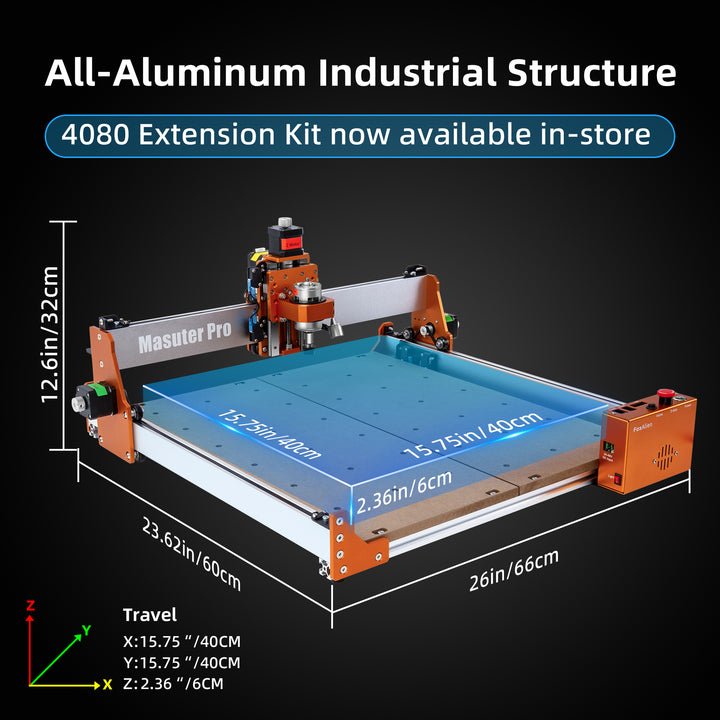

  • Active Working Area: 15.75” x 15.75” x 2.36” (400 x 400 x 60mm)
  • Spindle: 775; 10000RPM
  • Input Supply: 12V/5A
  • Stepper Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
  • Supported OS: Windows XP/7/8/10/11, MAC OS, Linux

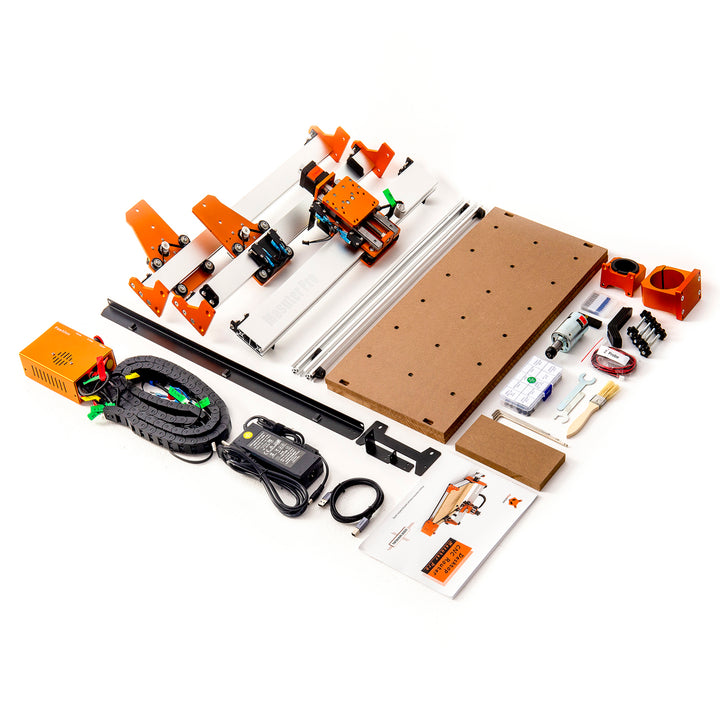

Package List

  • 1x Masuter Pro CNC Router Machine (Main part pre-installed)

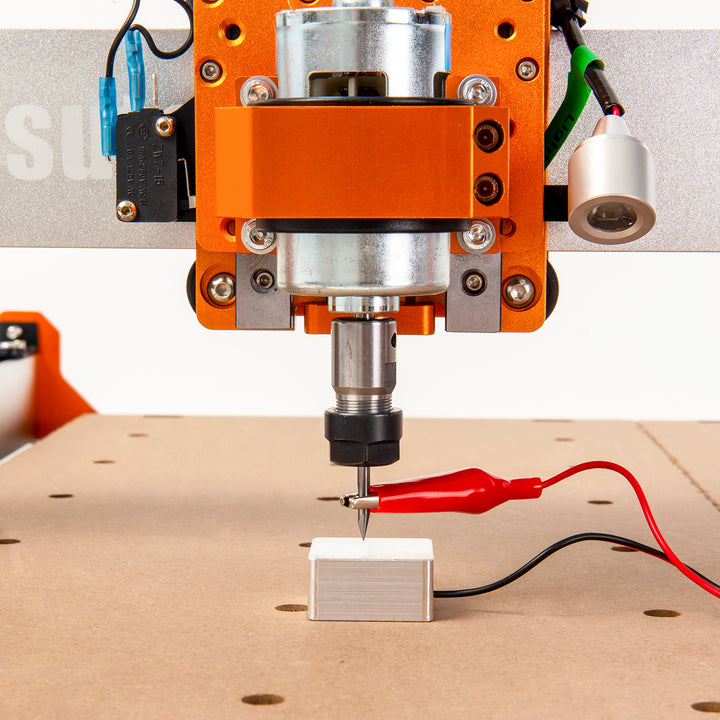

  • 1x Z Probe
  • 1x Controller Box
  • 4x Hold-down Clamp
  • 1x 52mm Spindle Clamp
  • 1x 65mm Spindle Clamp
  • 1x Power Supply
  • 1x USB Cable
  • 1x U Disk
  • 1x User Manual
  • 10 x Router Bits
  • Packs of screws

Customer Reviews

Based on 50 reviews
82%
(41)
12%
(6)
4%
(2)
0%
(0)
2%
(1)
R
Ronald

Initially the machine was working fine after improving the support of the base board to reduce the flexibility.
However in January the machine developed a fault and would no longer move in any direction, the cooling fan and LED light inside the controller were still working but the return home button would not work either!
I emailed support on the second of February unfortunately to date I’ve had no response, however I do realise that the Chinese New Year has been during this period so I’m hopeful that I will get a response from support soon!

Update on my review.
I have stumbled on a solution to the “locked machine” issue on the Universal G-Code Sender forum this morning, it was a simple fix of entering “$RST=$” into the command line which restores the Firmware back to the original configuration on the machine.
I’m still not sure how the firmware became corrupted in the first place!
But it’s done the trick and the machine is working again 😊

M
Martins Plaudis
Masuter Pro

So far so good! I'm loving my CNC router. Already did "makita" router upgrade and its performing amazing, its easy to use. It is strong enough, but the dust in the tracks makes the cnc jump over and messes up the path. Good dust collection solves that! Cant say anything bad about this machine.

B
Brad Chanin
Good shop router

I am enjoying my masuda pro. Good machine, well built. I purchased the bed extention and a router to replace the small spindle included. I also bought the laser module. Very versitile

M
Mariusz Otto
All ok

All ok

G
Gareth

Great product

C
Clayton

So far this machine has gone beyond my expectations. I’m so excited to see what else I can do with it!

D
Danny

Très belle qualité de machine, robuste, facile à monter et prix abordable

M
Myles Newton
Great value for price

All the bells and whistles you need to get started into the CNC world. Quick setup and plenty of space to make my projects become reality. The additional 65mm spindle mount is super useful to take the machine to the next level.

b
billy b
Works as Advertised, well worth the price

Finally received the machine after the shipper lost the first order. FoxAlien was very responsive, but a bit slow to reship. It was very well packed. Because many parts were already assembled and adjusted, it was easy to assemble and get operational (less than two hours, suggest reviewing the James Dean videos on YouTube). The bed was only about 0.5mm out of plane and xyz movement accuracy is as good as I could measure. My only complaints are easy bed flexure (easily improved by gluing some stiffeners on the bottom) and low XY force (5lbs which is about half of what it should be with NEMA17 belt drive).

J
Jacob Moore
So Far So Good

So far it works. I'm still trying to find a good cam/cad software so I haven't really used it much except the sample programs to verify functionality.
