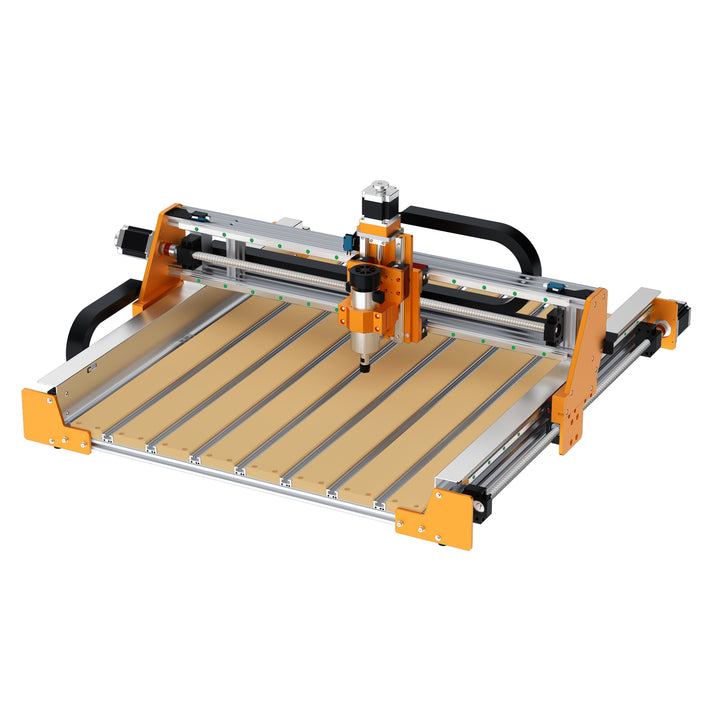

CNC Router Machine Vasto XL
SKU: CNC-FG6060-VastoXL |
[Industrial Grade & Large Working Area] The FoxAlien Vasto XL CNC is built in industrial grade components, comes with HG-15 linear bearings on every axis, 16mm ball screws on XY axis and 12mm ball screws on z axis. The effective working area is 23.62"x23.62"x3.94", this working area is perfect for woodworking business.
[Easy Installation] Main parts are pre-assembled, it just takes 30-45 minutes to assemble the machine, then you can explore the journey of CNC machining.
[Simple to Use] Still based on grbl control, lots of resources can be found on YouTube. Due to its super rigid structure, no more lose step. Even though your engraving settings are not perfect, it can still carve nicely.
[Easy to Upgrade] The machine comes with the 400W spindle, which can capable of engraving and cutting wood, acrylic, carbon fiber, aluminum and brass. It also comes with the 65mm and 69mm clamp, that you can easy to upgrade the Makita Router RT0700C and DeWalt DWP611 Router.
[T-slot Hybrid Table] The Hybrid Table offer multiple workholding options. The working area is 23.62"x23.62"x3.94"(600mm x 600mm x 100mm)
This machine can be shipped to all over the world, please contact our support team to get the shipping fee to your country.
The price includes the import tariffs for the US and the European Union & UK orders.
The Vasto XL is not compatible with the offline controller we are selling, if you want to purchase the offline controller for the Vasto XL, please contact our support team via firstname.lastname@example.org
Over the past 2 years, we have accumulated a lot of feedback from CNC users. The newbies think it is very complicated to set the right parameters such as engraving speed, depth per pass, plunge rate, and so on. The seasoned machinists believe desktop CNCs, such as the 4040-XE, are still not strong enough to cut aluminum and brass easily and precisely. So FoxAlien keeps on thinking to find a solution to satisfy both the newbies and the veterans. What if we can bring a machine that has more room for the new user to make errors, even if the settings are not perfect, they can still carve with nice results. What if this machine can meet the experienced user's requirements to engrave and cut soft metal easily. Now, we are introducing the best CNC Router Machine in FoxAlien’s family. The CNC Machine Vasto upgrades everything: the linear bearings, the extrusions, the ball screws, the motors and the controller box (independent drivers for each axis). This machine comes with the 400W spindle stock. In order to release the full potential of this Monster, we strongly recommend upgrading to the DeWalt DWP611 or the Makita Router. (DeWalt and Makita router are not included)
- Working Table: T-slot Hybrid Table

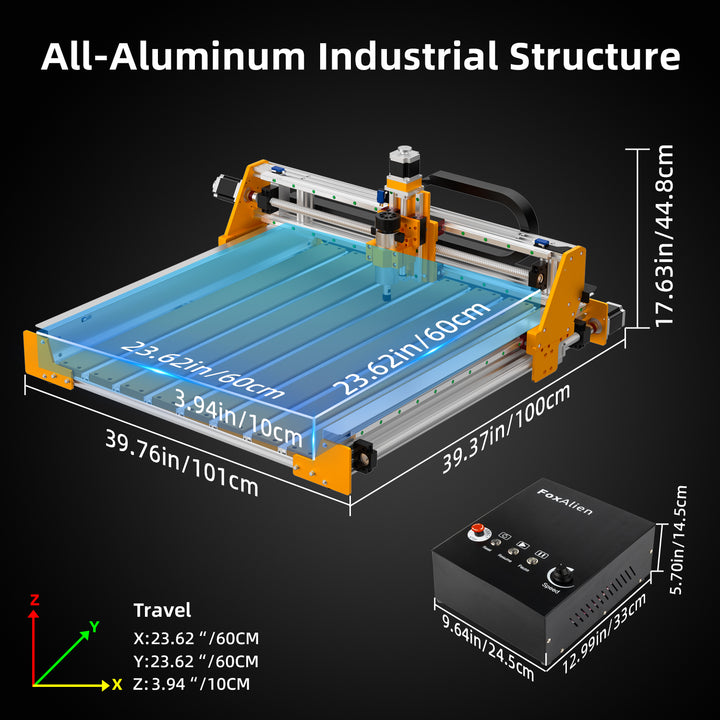

- Cutting Area: 23.62"x23.62"x3.94"
- Footprint Dimensions: 39.76"x39.37"x17.63"

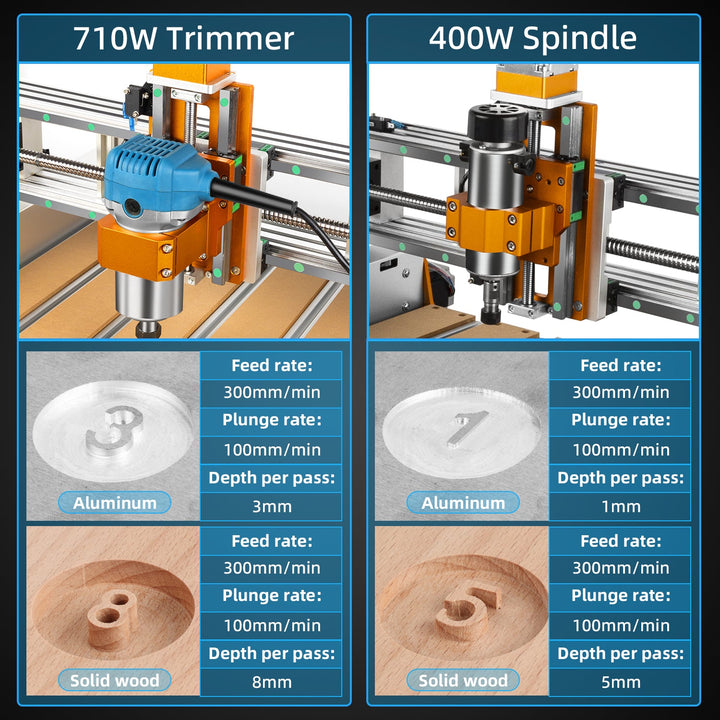

- Spindle: 400W

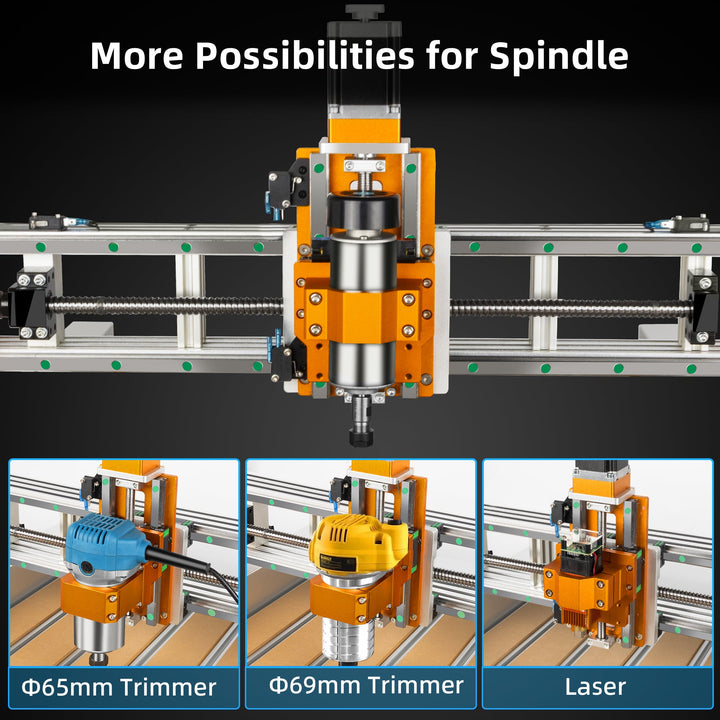

- Router: Support 65mm and 69 Router, Makita RT0700C and DeWalt DWP611

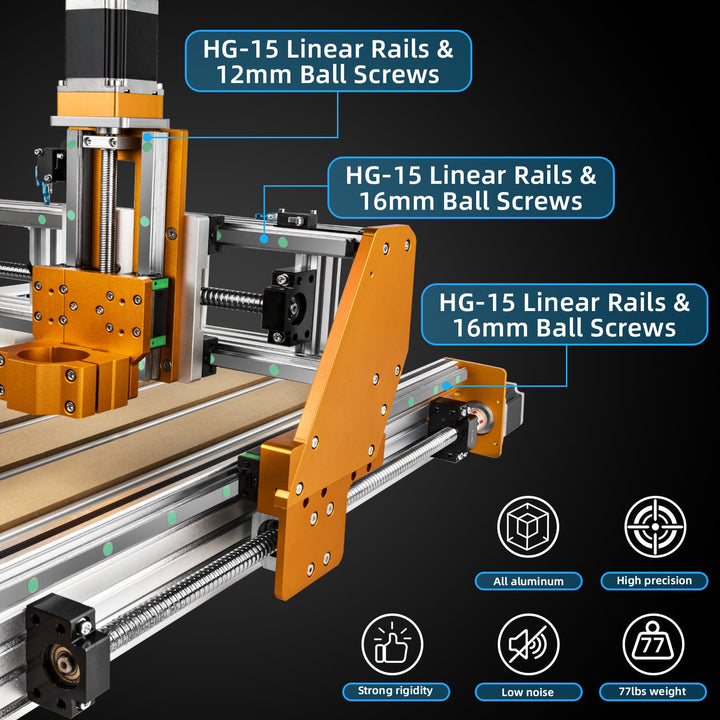

- X Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks
- Y Axis: Dual HG-15 Linear Rails & 16mm Ball Screws & 4 Slide Blocks
- Z Axis: Dual HG-15 Linear Rails & 12mm Ball Screws & 2 Slide Blocks

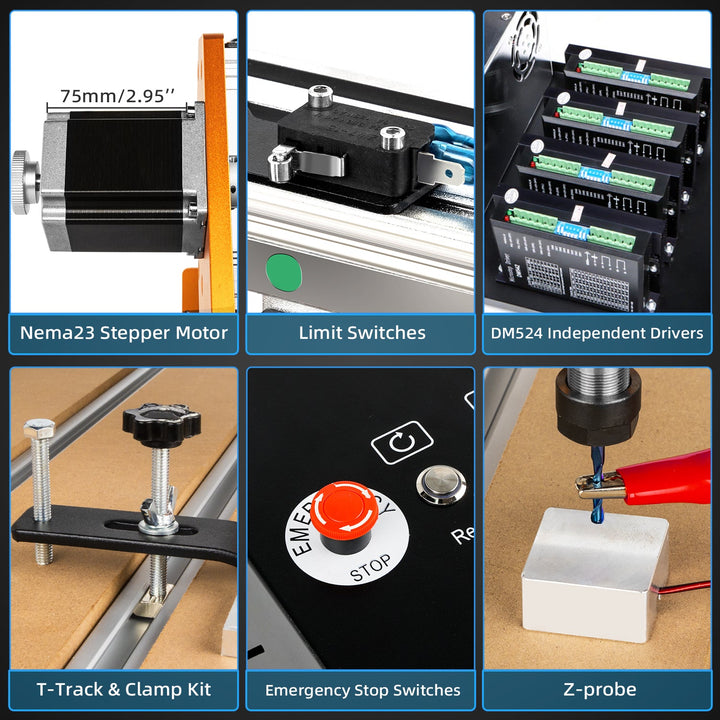

- Stepper Motors: Nema23
- Independent Driver: DM542
- Machine Structure Material: All Metal
- Laser Output: 10W
- 1x Vasto XXL CNC router (half-assembled in 4 boxes)
- 1x T-slot Hybrid Table
- 1x Controller
- 2x Set of engraving bits (10pcs/set)
- 1x USB cable
- 1x Power cord
- 1x Box of screws and tools
- 1x User manual
I absolutely love my vasto XL. I have previously owned a 4040 and this was a major upgrade, rigidity and build quality are solid. I will say the stock spindle is a tad underpowered to make full use of this machine but it is capable. I have been CNCing for about a year now and Fox Alien has been fantastic the entire time. I have had very little issues with either machine ive owned. I would reccomend the vasto to anyone wanting a high quality machine at the hobby level.
