CNC Router Masuter 3S with 8040 Extension Bundle Kit
- Fast & Strong Closed-loop Motors: The Masuter 3S is equipped with NEMA23-76 closed-loop stepper motors. They have great performance in step-loss control. And the torque is 2.2 Nm. and its moving speed is up to 10000mm/min.
- Rigid Structure & High Accuracy: The Masuter 3S uses 23*60mm extrusions that ensure the stability during carving. The Z-axis uses dual HG-15 linear rails and T12 lead screw, which effectively reduce wobble and enhance the engraving accuracy to 0.05mm.
- 400W Powerful Spindle: It comes with a 400watt spindle, which is capable to engrave and cut soft metal such as aluminum. An extra spindle clamp (65mm) is included in the package for trimmer router upgrade.
- Easy-maintenance Controller Box: the newly designed controller box is easy to use and maintain. There are several shortcut buttons for fast operation. And it is dust-proof and easy to clean. It supports offline controller.
- More Upgrade Details: Innovative steel wheels pulley system improves the durability. The machine runs more smoothly and quietly. Additional supports are added to the base frame to make the worktable more solid.
- Large Engraving Area: The active work area is 15.75” x 15.75” x 3.74” (400 x 400 x 95mm). It also supports X-axis extension kit for large projects
Description
The Masuter 3S is the first CNC Router comes with four Nema23 Closed Loop Motors at a price under $1000 in the market. It is the latest model in the FoxAlien CNC Router's family in 2024. Equipped with 400W spindle and four Nema23 Closed Loop Stepper Motors(max torque 2.2Nm) which make the machine powerful enough to achieve a nice finish on wood, acrylic, carbon fiber, and soft metal. The max moving speed of the Masuter 3S is 10000mm/min, this can reduce a lot of time when the machine needs to run a laser engraving project. If you are looking for a CNC for both wood carving and laser engraving jobs, the Mastuer 3S is the best choice.
Specification
- Model Name: Masuter 3S
- Working Area: 15.75“ x 15.75” x 3.74“ (400 x 400 x 95mm)
- Frame & Structure: Metal Frame & MDF Spoilboard
- XYZ Axis Stepper Motor: Nema23 76mm Closed Loop Stepper Motor
- Max Speed: 10000mm/min
- Spindle Power: 400W
- Extra Mount: 52mm & 65mm
Package List
- 1x CNC Router Masuter 3S
- 1x MDF Table
- 1x Control box
- 1x Set of engraving bits (10pcs/set)
- 1x USB cable
- 1x Power cord
- 1x Box of screws and tools
- 1x User manual
- 1x X-Axis Extension 8040 for Masuter 3S
Really is a great machine had it six months now and once i figured out how to use it properly it just keeps making lovely things for me. Started with cutting out oarts to make boxes and stuff and jownprogressed to 3d carving.
Its performing wonderfully with cutting and carving and as long as you stay within the parameters and use the machine correctly its a dream.
I did have a motor go down in the first month hut the tech support was same day fast and same week diagnosed and replaced the part.
To be honest my expectations have been exceeded i didnt think it would be possible to get such a good piece of kit for this pricr
If I had received the 8040 extension parts (that didn't arrive with the Masuter 3S) I might have been able build my 3S CNC, but I am still waiting for those parts I can't give a review on my 3S CNC router.
I received my Masuter 3s and was pleasantly surprised. The machine was packaged well and the setup took about 45 minutes. Within a couple hours, I was carving projects. I have already started to recommend this machine to my friends.
I did not purchase the Masuter 3S, I purchased the XE- Pro with the 8040 extension and so far, I absolutely love it. I have the 4040 Xe for 4 years and the XE Pro is an outstanding upgrade. The only thing I do not like is the placement of the on/off switch on the controller. I would prefer it to be on the front panel like the 4040 Xe. I also do not understand that since I purchased the 8040 extension when I purchased the XE Pro together, why the XE Pro came with the gantry, support, and side covers that I will never use. Just seems like a waste to me and you could of offer a better price if those items were not included. I would really love to purchase the linear rail upgrade kit, but it looks like it will come with 2 rails and linear bearing blocks that will never be used. One would think you would offer a kit for owners that have already purchase the XE Pro with the extension. Other than that I am super stoked about the XE Pro with the 8040 extension and the capability to use 3/16” and ¼” bits without the gantry flexing and the larger working area.
Works fine, need to get more experienced. Great machine!
CNC Router Masuter 3S with 8040 Extension Bundle Kit

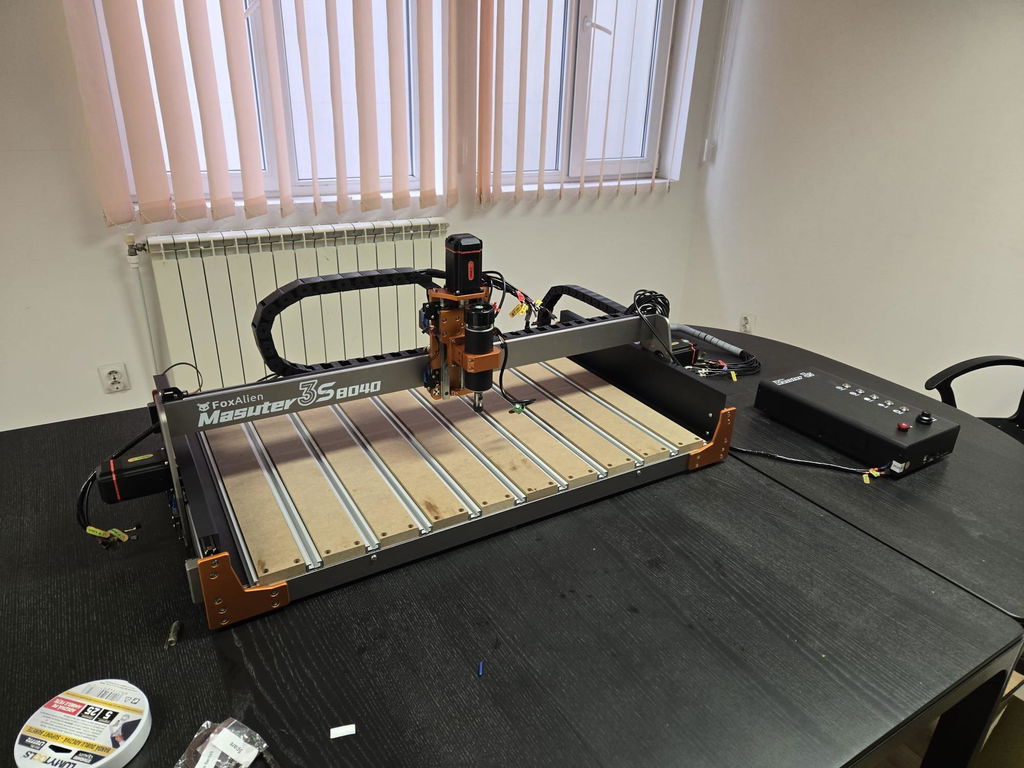

I took 1 1/2 days installing and setting everything up. I was not in a rush and enjoyed every minute just getting it all together. This is my second CNC my first one was cheap and did not last long. I was cutting my first piece within a hour after I had it all together. I do mostly all 3D art reliefs and looking forward to getting a few done in the next few days.

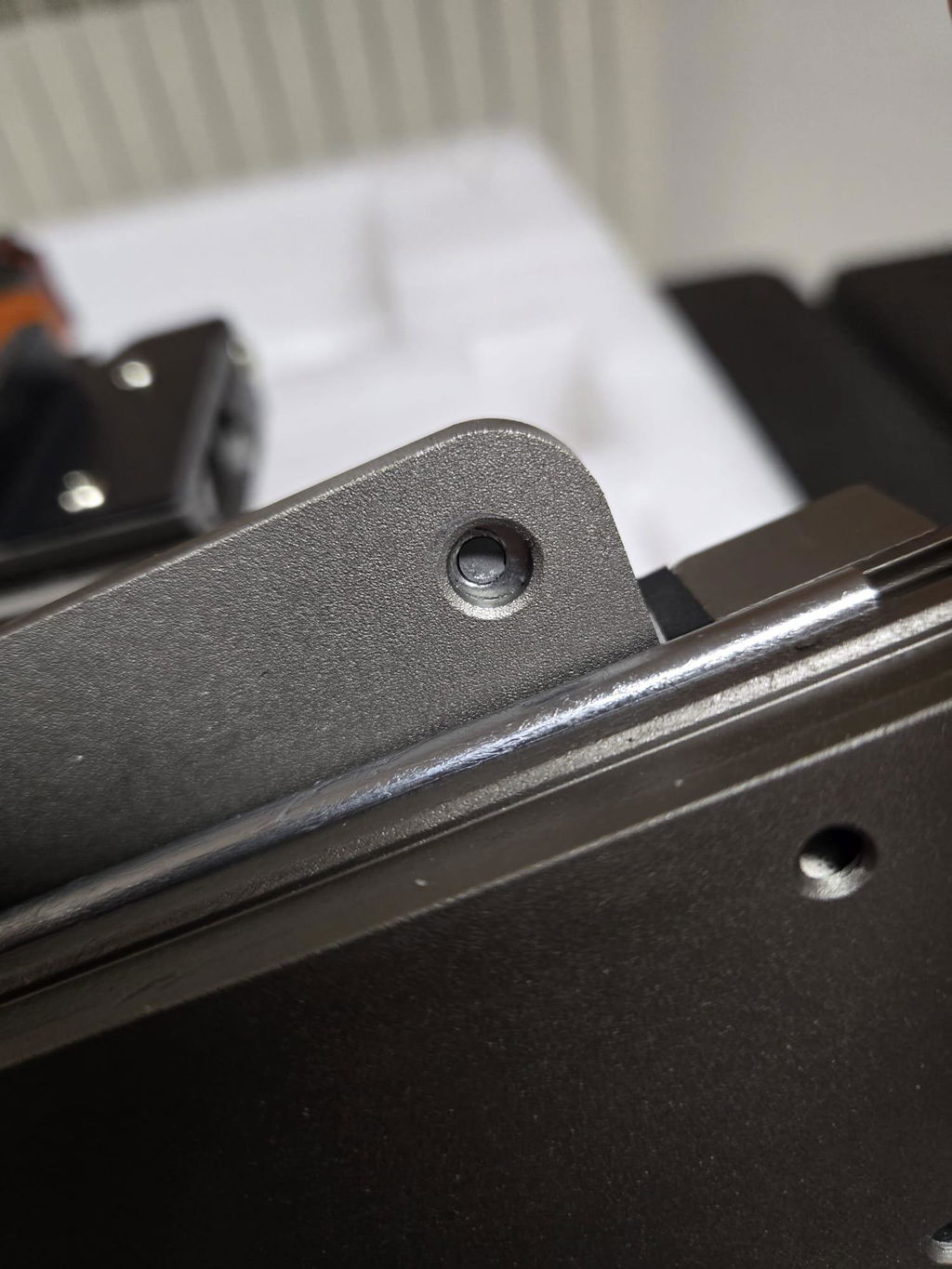

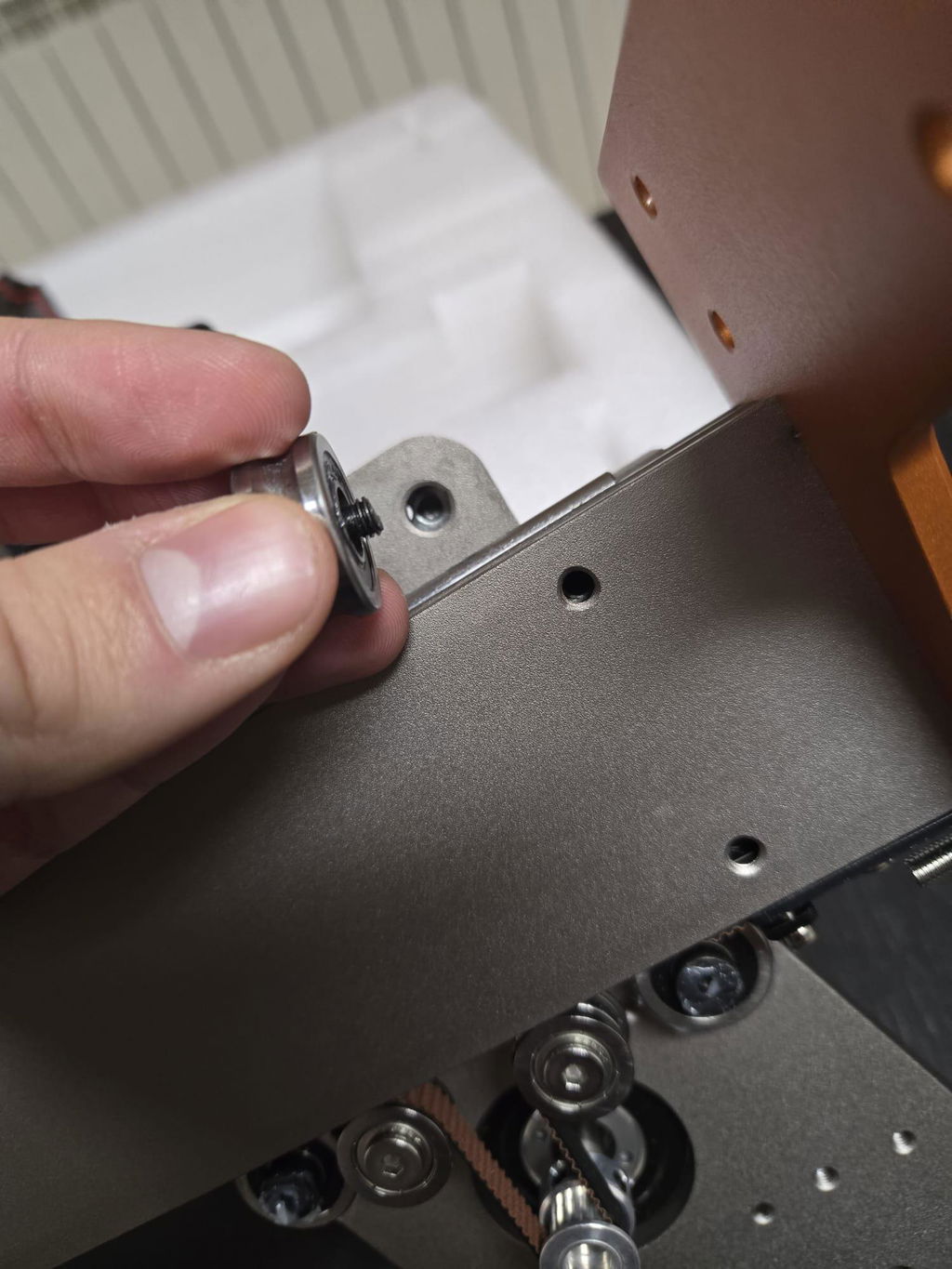

Came very quickly then it took me the weekend to build it up only issue I had was when I was screwing in the main 8040 rail the screws lots there threads, I had a tap and die set and re tapped them with no problem at all now slowly working on design ready to use the machine.
Looks good so far I will supply you with more info as I get into it.
Please note I have contacted your support group twice and had very good results.
Thanks
Brett
Good overall after a trouble delivery system. you may want to look at the Alen keys
they do not fit the bolts I had my own keys that did the job
