[2026 New] CNC Router Machine XE-Ultra Core with 1.5KW VFD Spindle Bundle Kit

SKU: BD-Core-15VFD-US
€1.656,67

Ship to: USA

USA
Canada
Europe
UK
Australia

QUANTITY

American Express Mastercard PayPal Visa JCB Diners Club Discover JCB
  • Compact size 17.3"x17.3"x4.72" Workspace. The XE-Ultra Core can fit most workshops and be used for most small woodworking and even soft metal engraving projects.
  • Industrial Rigidity & Precision: Equipped with 16mm ball screws (XY) and 12mm ball screws (Z) paired with HG-15 linear rails on all axes, ensuring smooth and high-accuracy movement. The heavy-duty 46×80mm aluminum frame ensures long-term stability and rigidity.
  • 2.6 N.m Closed-Loop Stepper Motors: Featuring 60-86mm closed-loop stepper motors delivering powerful 2.6Nm torque with intelligent step-loss protection, maintaining high performance and precision even at high speed up to 5,000mm/min.
  • Open Spindle Ecosystem: Total flexibility on spindle choices. Customize your setup—supports 65mm routers, FoxAlien 1.5kW VFD spindle, or FA20W/40W/80W engraving modules (65mm clamp included, this bundle kit includes the 1.5KW VFD Spindle Kit).
  • Industrial Inductive Limit Switches: All-axis sensors offer instant response (0.5ms response), anti-interference performance, and extended durability. Physical hard limits provide dual-layer collision protection.
  • Smart 32-Bit Control Box: Features real-time stepper motor diagnostics via malfunction indicator lights for streamlined troubleshooting. There is a reserved port for 4th axis (coming soon).
Description

Description

The XE-Ultra Core is a compact-sized version CNC machine of the XE-Ultra. Due to its desktop size and comes with the same hardware specification as the XE-Ultra, which makes the XE-Ultra Core is a more rigid CNC. It is built with linear rails and ball screws in all 3 axes, which greatly improves the engraving accuracy.

Specifications

  • Active Workspace: 440 x 440 x 120mm(17.3"x17.3"x4.72")
  • Machine Footprint: 1013 x 1013 x 503mm(39.88"x33.27"x19.8")
  • Stepper Motor: NEMA 23 closed-loop stepper motor (60-86)
  • Torque: 2.6N.m
  • Max. Moving Speed: 5000mm/min
  • Control Board: 32-bit

!! Notice:

  • Worktable/spoilboard is NOT included.

Package List

  • 1x XE-Ultra Core CNC router machine
  • 1x Controller box
  • 1x Z probe
  • 1x Test MDF board
  • 10x Engraving bits (30deg*0.2mm)
  • 1x screw box
  • Wrenche
  • 1x 1.5KW VFD Spindle Kit
Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ron Karpel
It is a beast!

The XE-Ultra and 1.5K VFD is a powerful machine. It will route anything I trough at her and with flying colors. I am mostly working in wood, but I have tried a little in aluminum and it has no problem with that either. Assembly is a bit of work, but the instructions are good and FaxAlien responded to my inquires through email overnight. The one thing I miss in the instructions is the size for the base. The bear minimum base dimensions that I found to work are 40in wide by 31in deep, and allow 6 in clearance in the back for the stepper motors as they hang out(not including room for the controller). I used a double layer of 3/4 plywood screwed together for extra rigidity.

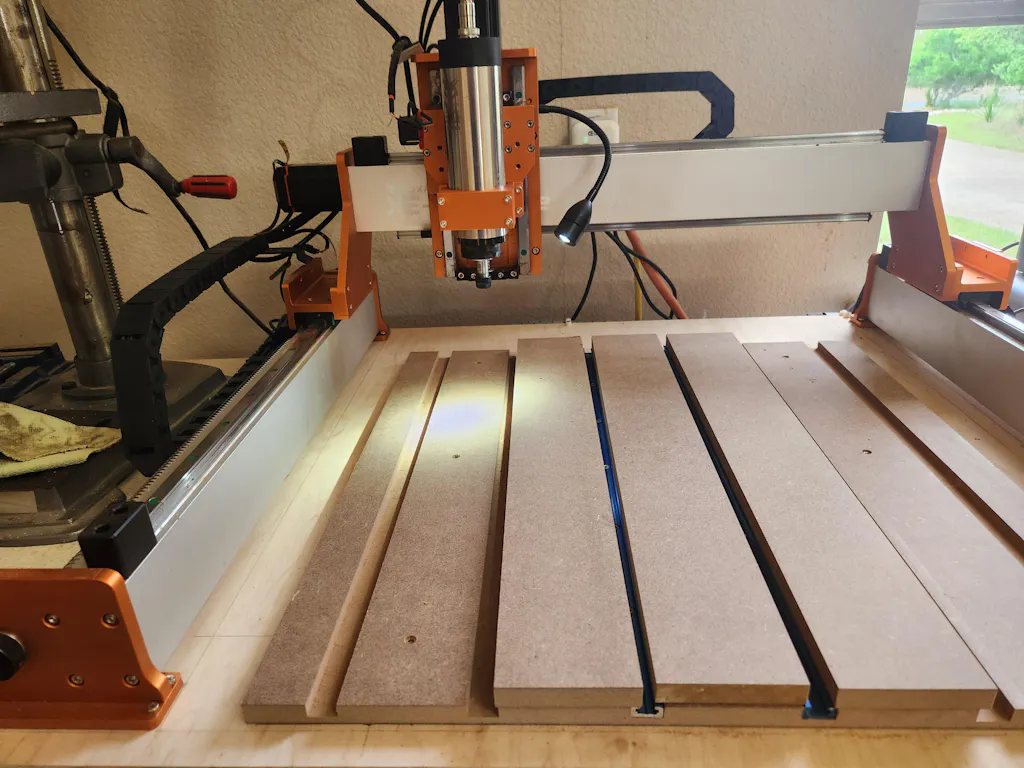

User picture
