Extension Kit 8040 for XE-PRO

SKU: CNC-XEPRO-8040
€574,41

Ship to: USA

USA
Canada
EU
UK

QUANTITY

American Express Mastercard PayPal Visa JCB Diners Club Discover JCB
  • This extension kit includes the X-axis extended profiles, upgraded T-slot Hybrid spoilboard, base frame and the parts that need to be replaced. (XE-PRO CNC machine is NOT included)
  • The 8040-extension kit is only for FoxAlien XE-PRO CNC Engraving machine upgrade, which can extend the working area to 31.49" x 15.75" (800mm x 400mm, X-Y).
  • The 8040 extension kit uses HG-15 linear rails and 16mm ball screws on X axis to maintain stability and high accuracy during carviing and engraving.
  • With this upgrade kit, X-axis travel will be larger. This make it possible for the CNC router machine work with large size projects, such as guitars, billboards and etc.
  • The upgraded hybrid spoilboard is compatible with different type clamps, such as FoxAlien bench vise and t-track hold-down clamps.
  • The base frame structure is fortified with aluminum profiles, ensuring the spoilboard remains stable for cutting and engraving.
  • A detailed assembly guide is included. We provide step by step assembly manual. It is easy to install. Please note enter $100=160 and $130=800 in the console window to change the configuration.
Description

Description

The XE-PRO 8040 extension kit not only extends the working area of the x-axis, but also enhances the stability of the machine structure. The extension kit of the x-axis comes with the 16mm ballscrews and linear rails, when the XE-PRO standard version comes the 12mm ballscrews and steel wheels. It also equipped with the upgraded hybrid T-slot working table.

Package List

1 x Extension Kit for CNC Machine XE-PRO

Hybrid MDF T-slot Working Table

Drag Chain

Click here to download the GRBL parameter for XE-PRO 8040


Reviews

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Romulus Iosifescu
Proffessional

I am very pleased with my Foxalien extension kit. Very good quality. Fast delivery, detailed instructions.

F
Fabian Tritschler

Extension Kit 8040 for XE-PRO

K
Kenneth Jarvis

Expanding the width of the machine with the extension kit adds the ability to create larger projects. Assembly was not hard but modifying the machine code and getting the system tuned up took some time. Overall, I am impressed with the XE=pro 8040 with linear rails. It’s industrial strength and should operate with precision for a long time. I would recommend this machine to anyone looking for a quality CNC machine at a fair price.

T
Tracy Brock
Great addition

Great addition, take tour time when installing and don't forget to change your code for the extra length

k
kevin king
Great service

Arrived really quickly, really pleased with the product and after sales service has been excellent.

S
Soreil Laurent
Nice extention !!

I installed the extension, and started to do the basic checks.
I find that the extension is more precise on both the X and the Y, in the sense that I have at least corrected the perpendicularity problems.
To see with my first real work, but I am confident.
The installation is easy and takes about 1h30, now it is giant!!!

E
Eric van der Zanden
Great update

Easy to install, easy to use. I already had the lineaire update on the 4040. But in combination with the 16mm ball screw makes it a useful update. Additional length speaks for itself

S
Steve Cochran
Extension worked beautifully..after…

The installation of the extension was easy, I even upgraded to linear rails at the same time! Easy-peasy. The only issue I encountered was my x-axis was traveling 2.5x further than it should. I reset everything, uninstalled the old machine from Easel, etc. no luck. Ended up finding a video, https://youtu.be/Sr-qvNbFwrs?si=SqD_xHjP3fz4G7e6, thank you paw-paw. That explained how to modify the gcode to make it work properly. I found nothing on the FA site or documentation to show how to assure it’s calibrated properly. My first carve was perfect! All in all, loving the extension! I’ll watch for the 8080 extension kit too!!

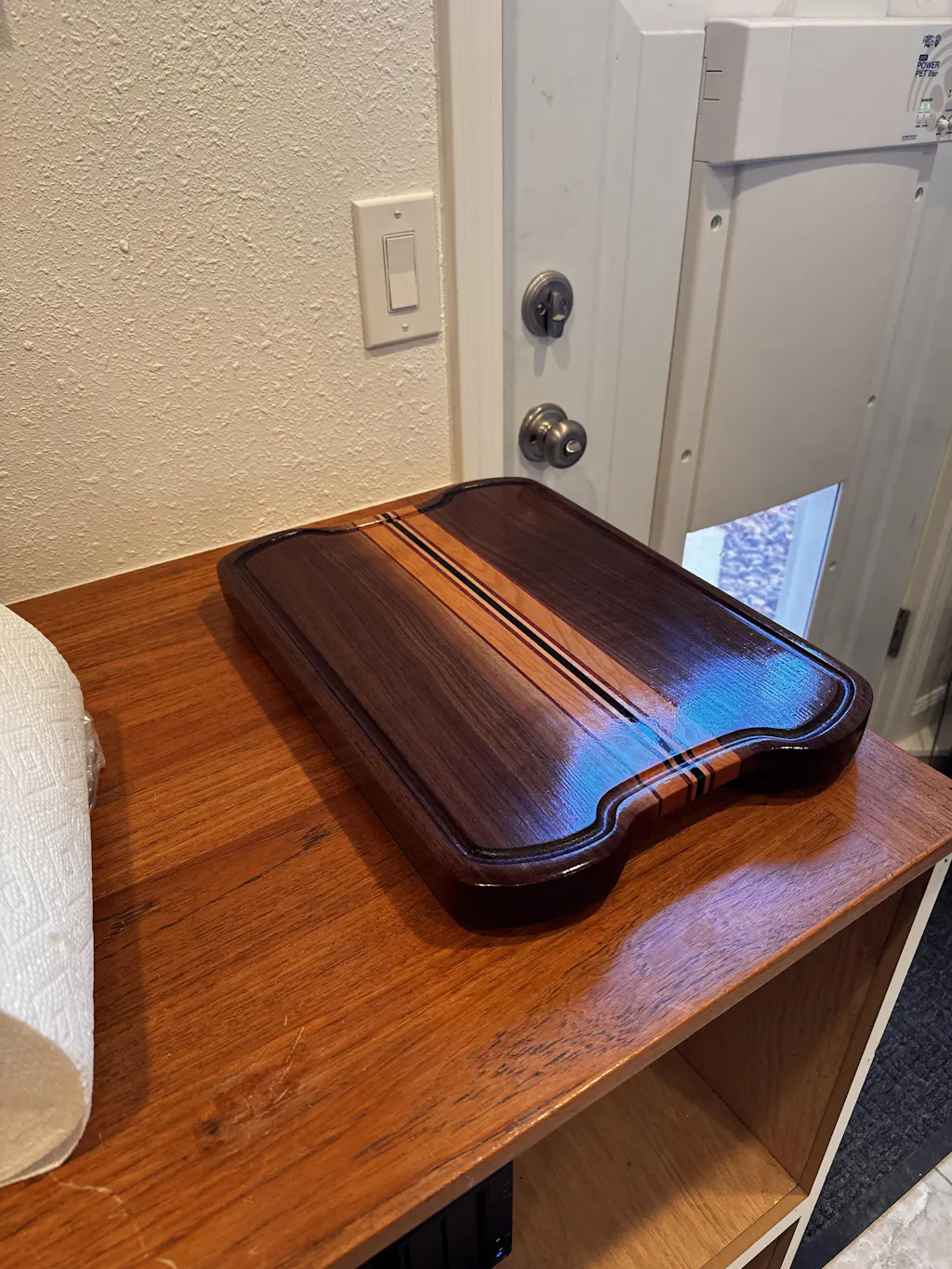

User picture
